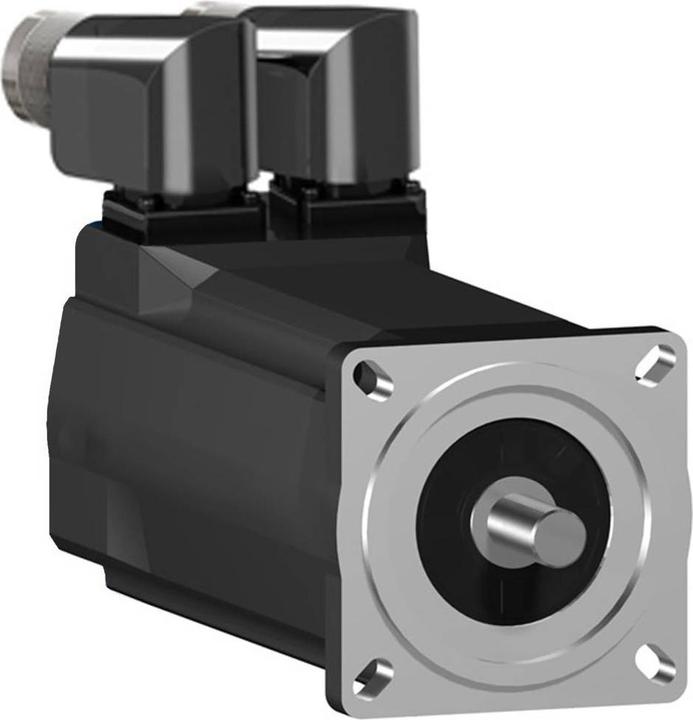

Lexium SH3 Servomotor. This SH3 series of AC servomotors features a low rotor inertia, enabling high acceleration capabilities for dynamic applications. Thanks to the winding technology, it achieves a higher power density in a compact design. This servo has a nominal continuous stall torque of 2.2 Nm and reaches a peak torque of 7.6 Nm. Its rated speed can reach up to 7200 RPM, depending on the supply voltage. The voltage-dependent rated power is up to 1360 W. The built-in encoder is a single-turn type with 128 pulses per revolution (128x1024) and is configured as SinCos Hiperface. The electrical connection is made via 2x M23 connectors, which are angled at 90° and rotatable. The motor flange for mounting has a diameter of 70 mm. The drive shaft has a diameter of 11 mm. The shaft end is smooth and meets the protection class IP54. The motor housing meets the protection class IP65. An integrated holding brake is included. For operating the synchronous motor, the Lexium series servo amplifiers Lexium 52 and Lexium 62 are recommended.
