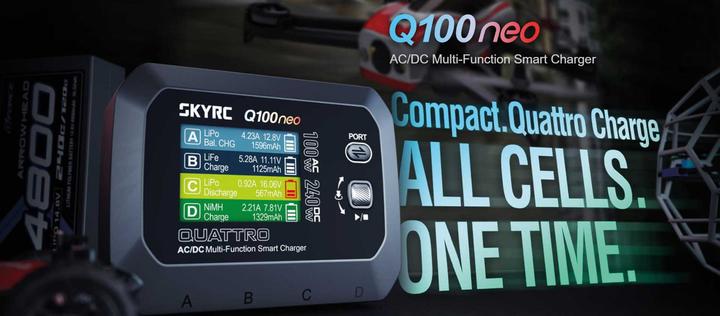

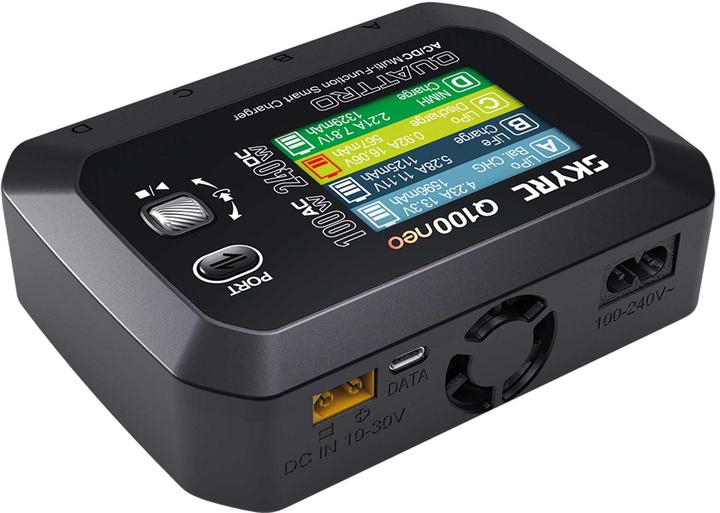

The SkyRC Q100 Neo redefines charging power; compact, powerful, and equipped with four intelligent charging outputs for maximum flexibility. With a total output of 240 W DC or 100 W AC, the Q100 Neo is ready for any challenge – whether in RC racing, FPV flying, or drone soccer.

Each of the four outputs operates independently, allowing different battery types to be charged simultaneously. From LiPo and LiHV to NiMH, NiCd, LiFe, Li-ion, and Pb – the Q100 Neo is a true all-rounder.

The intelligent power management dynamically distributes the available energy across the active ports. Once a channel completes the charging process, the remaining power is automatically redirected to the other outputs, reducing overall charging time. This ensures that every watt-hour is utilized optimally.

The integrated balancer port also enables faster discharging – up to 15 W in combination with the main connection, compared to 5 W through the main connection alone. Thus, the Q100 Neo offers not only outstanding charging capabilities but also top-notch discharging and diagnostic functions.

Technical specifications:

• Input voltage: AC: 100–240 V / DC: 10–30 V
• Charging power DC: max. 240 W (4 × 60 W, dynamically distributed)
• Charging power AC: max. 100 W
• Charge current: 0.1 – 6.0 A
• Balancer current: max. 600 mA
• Discharge power: 5 W (main connection) / 10 W (balance port, LiPo/4S)

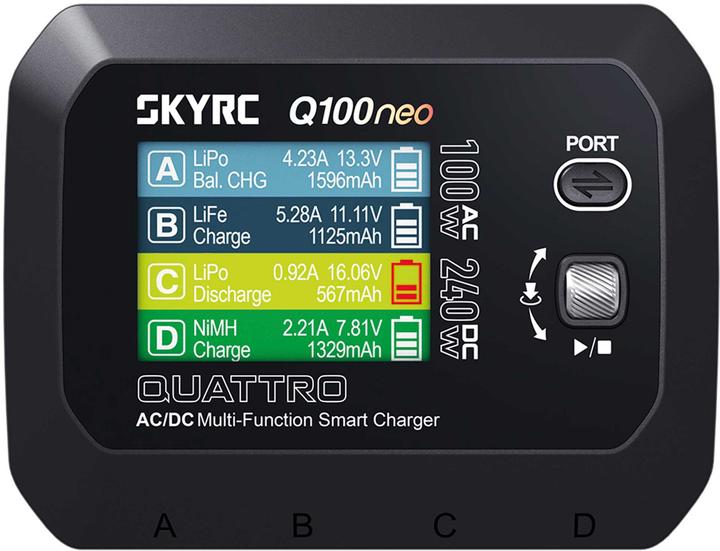

• Display: 2.8'' color display, 240×320 px, 262k colors
• Battery types: LiPo/LiFe/LiIon/LiHV: 1–4S / NiMH/NiCd: 1–8S / Pb: 3S / 6S
• Dimensions: 140 × 108 × 43.5 mm
• Weight: approx. 491 g.
