Best selling RC motors from Scorpion
On this page you'll find a ranking of the best Scorpion products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Scorpion Electric motor HK-4535-500kv (8mm shaft)
Electric motor HK-4535-500kv (8mm shaft).
2. Scorpion Electric motor RS-3420 7.5T
Electric motor RS-3420 7.5T.

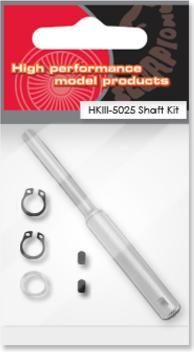

3. Scorpion HKIII-5025 Motor Shaft Kit XL 6mm / 44mm / 105mm
HKIII-5025 Motor Shaft Kit XL 6mm / 44mm / 105mm.

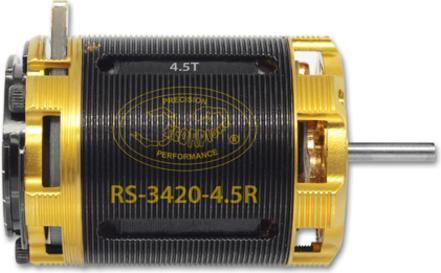

4. Scorpion Electric motor RS-3420 4.5T
Electric motor RS-3420 4.5T.

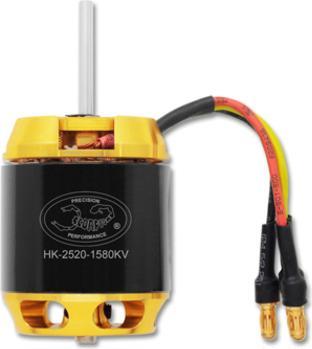

5. Scorpion Electric motor HK-2520-1580kv (3,5mm shaft)
Electric motor HK-2520-1580kv (3.5mm shaft).
6. Scorpion HK-5035 Motor Shaft Kit 8mm / 100mm
HK-5035 Motor Shaft Kit 8mm / 100mm.
7. Scorpion Electric motor HKII-2216-16 (3,17mm shaft)
Electric motor HKII-2216-16 (3.17mm shaft).
8. Scorpion Electric motor HK-2520-1360KV
HK-25XXer Series
In the production of the housing parts, qualified engineers process a high-quality aluminum alloy using state-of-the-art CNC milling machines at the Scorpion facility in Hong Kong. These parts are then anodized in a special process to give them a durable and elegant gold finish.
The stators are made from 0.2 mm transformer sheets to achieve maximum efficiency and reduce eddy current losses. Additionally, they are coated with epoxy resin for optimal insulation against short circuits. They are wound with extremely high-quality wire that can withstand temperatures up to 180 °C. Scorpion exclusively uses high-performance magnets of the N-50EH style, which can endure operating temperatures of up to 200 °C. Thus, it is nearly impossible for Scorpion motors to burn out in their application field.
Technical Specifications:
• Scorpion: HK-2520-1360KV
• Stator Diameter: 25.0 mm
• Stator Thickness: 20.0 mm
• Stator Arms: 12
• Poles: 10
• Windings: 12 Turn Delta
• Wire: 9-Strand 0.25 mm
• RPM/V: 1360
• No Load (Io): 1.55 A @ 10 V
• Resistance (Rm): 0.038 Ohm
• Current Rating: 30 A (40 A max. 2 sec)
• Max Power: 630 Watts (840 Watts max. 2 sec)
• Weight: 108 g
• Diameter: 31.5 mm
• Shaft: 4 mm
• Motor Length: 39.6 mm
• Shaft Length: 62.5 mm
• Max Lipo Cells: 6S
• Motor Timing: 5 °
• Motor Frequency: 8 kHz.

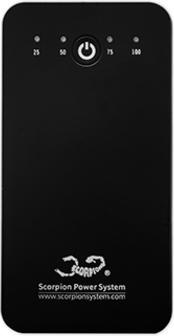

9. Scorpion Power Station
Power Station.
