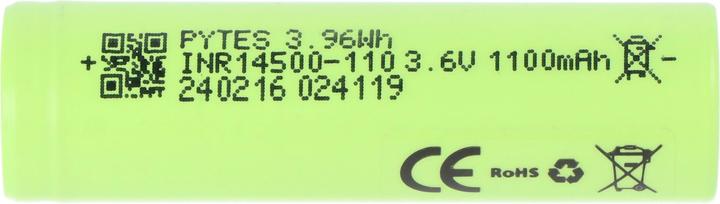

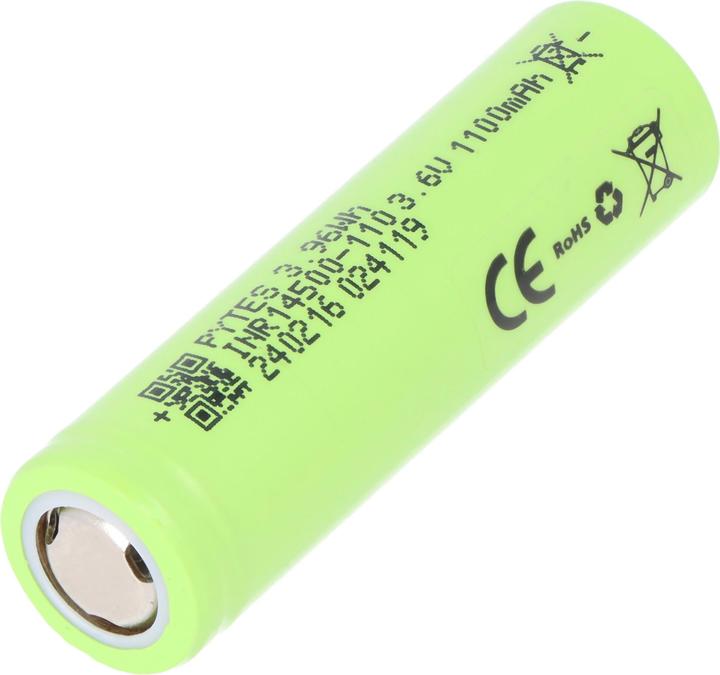

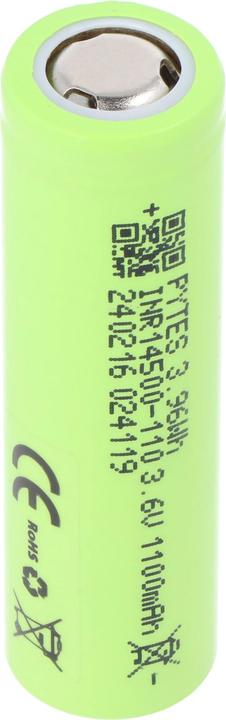

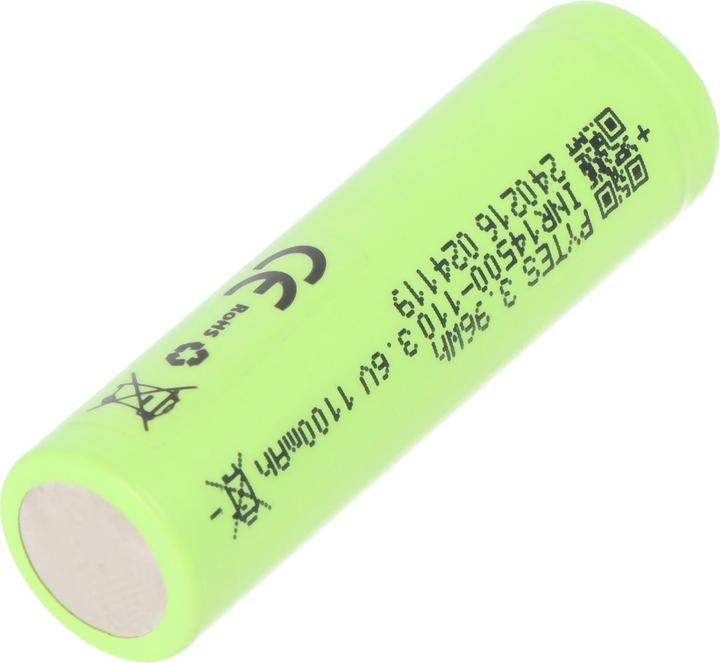

Battery compatible for the Oral-B iO lithium-ion battery, Li-Ion UR14500AC, 3.7 volt. The fresh replacement battery is exactly suitable for Braun iO Series 7.

• Oral-B Braun rechargeable lithium-ion (Li-Ion) battery UR14500AC
• Suitable for Braun iO 6, iO 7, iO 8, iO 9, iO 10
• Suitable for the Oral-B iO series
• Oral-B iO Series, type 3758
• Oral-B iO Series 6N, Oral-B iO Series 7N
• Oral-B iO Series 8N, Oral-B iO Series 9N
• Oral-B iO Series 10 Battery change

The rechargeable battery has no side nipples, no solder tabs and no print tabs. The battery has a flat head. The matching charger is type 3768, 100-240 volts, 50/60 Hz, 3.0 watts.

The 14500-A3 Li-Ion battery has a maximum capacity of 600 mAh. Rechargeable battery suitable for the Oral-B iO Series 7 rechargeable battery. Special sizes such as the 14500-A3 are also increasingly benefiting from the further development of standard sizes. The use of new materials and chemical components makes the high increase in capacity possible.

Capacity: 600 mAh
Minimum capacity: 600 mAh
Nominal voltage: 3.6 V - 3.7 V
Final charge voltage: 4.2 V ± 0.05 V
Final discharge voltage: 2.5 V
Max. Discharge current (constant): 2C 2.2 A (2200 mA)
Max. Discharge current (pulse): 3C 3.30 A (3300 mA)
Standard discharge cut-off current: 30 mA
Positive pole: flat rate (flat top)
Protection: not available
Chemical composition: LiCoNi (ICR)
Diameter: 14.1 mm ± 0.2 mm
Height: 48.8 mm ± 0.3 mm
Weight: 21 g ± 1 g
Charging method: CC-CV.
