Switching sequence: Momentary, On (On)
Contact arrangement: 2-pole toggle switch
Mounting type: Panel mount
Panel cutout diameter: 6.5 mm
Contact rated current: 100 mA @ 30 V dc
Actuator type: Button

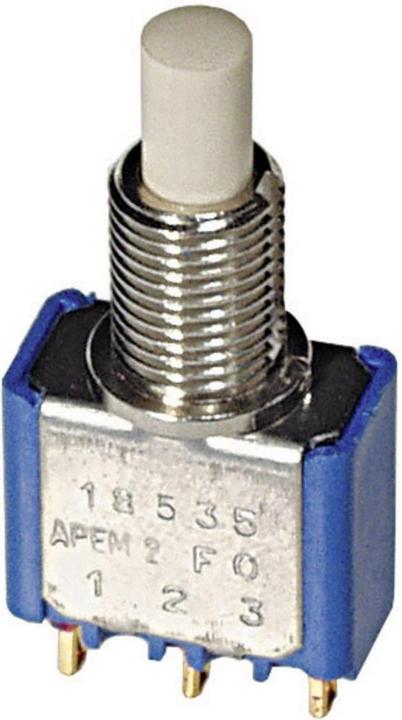

Miniature microswitch. This pushbutton switch from Apem is available as a single-pole toggle switch and a double-pole toggle switch. The miniature switches of the 18000 series feature gold-plated copper contacts and a microswitch actuation that ensures high precision and reliability. It is ideal for signal switching applications. The slim actuator can be modified with interchangeable pushbutton caps. Features and benefits: Connection via solder terminals, microswitch actuation with a total travel of 0.5 mm and a 0.25 mm overtravel. Available in this series:

• Pushbutton switch as a single-pole toggle switch
• Pushbutton switch as a double-pole toggle switch
• Single-pole pushbutton switch with black cover
• Single-pole pushbutton switch with red cover
• Double-pole pushbutton switch with black cover
• Double-pole pushbutton switch with red cover
• Black pushbutton cap
• Red pushbutton cap.
