AsRock 4x4 Box-5800U
AMD Ryzen 7 5800U10 pieces in stock at supplier
Processor type2
Product details

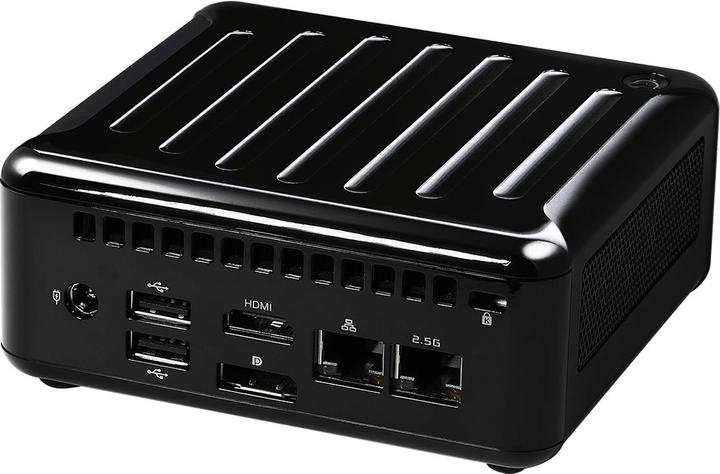

The ASRock 4x4 Box-5800U is a compact barebone PC designed for versatile applications in the workplace. Equipped with a powerful AMD Ryzen 7 5800U processor, this system delivers excellent performance for demanding tasks. Its small form factor design allows for space-saving integration in various environments, while support for up to 64 GB of DDR4 RAM ensures flexible memory expansion. The barebone features multiple connectivity options, including HDMI, DisplayPort, and USB ports, facilitating easy connection to external devices. Additionally, the 4x4 Box-5800U supports modern networking standards such as Wi-Fi 6E and Bluetooth 5.2, ensuring fast and reliable wireless communication. With its combination of performance, connectivity, and compact design, the ASRock 4x4 Box-5800U is an ideal solution for users seeking a powerful and flexible barebone PC.
- Supports up to 64 GB of DDR4 RAM for high performance and multitasking capabilities
- Equipped with an AMD Ryzen 7 5800U processor for efficient processing
- Offers modern networking standards like Wi-Fi 6E and Bluetooth 5.2 for enhanced connectivity
- Compact small form factor design for space-saving integration

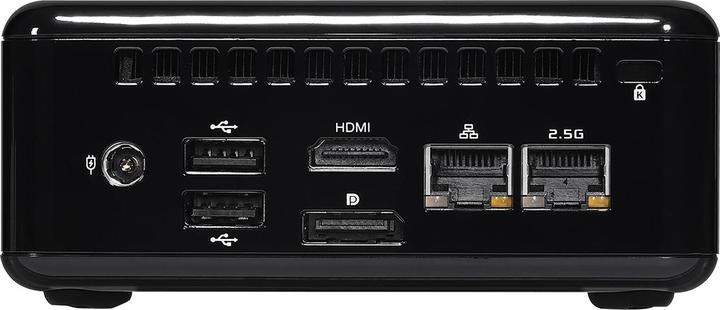

- Versatile connectivity options, including HDMI, DisplayPort, and USB.
Graphics card model | AMD Radeon Graphics |
Memory type | DDR4-RAM |
Video connections | DisplayPort (1x), HDMI (1x) |
Network connections | RJ45 (2x) |
Internal connection options | M.2 PCI/SATA Combo (1x), S-ATA III (1x) |
USB ports | USB-A |
Number of processor cores | 8 -Core |
Item number | 23581817 |
Manufacturer | AsRock |
Category | Barebones |
Manufacturer no. | 90PXG970-P0EAY100 |
Release date | 6.7.2022 |
Sales rank in Category Barebones | 37 of 480 |
Design | Small Form |
Processor type | AMD Ryzen 7 5800U |
Clock frequency | 1.90 GHz |
Number of processors | 1 x |
Number of processor cores | 8 -Core |
Number of threads | 16 |
Socket | FP6 |
Max. turbo clock rate | 4.40 GHz |
Max. TDP | 15 W |
Processor properties | Onboard processor |
Memory type | DDR4-RAM |
Memory form factor | SO-DIMM |
Max. memory slots | 2 |
Max. RAM | 64 GB |
Graphics card model | AMD Radeon Graphics |
Hardware application range | Workstations |
Max. connected monitors | 4 x |
Internal connection options | M.2 PCI/SATA Combo (1x), S-ATA III (1x) |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (2x) |
Data ports | PS/2 (2x) |
Network connections | RJ45 (2x) |
Connectivity | WLAN |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Bluetooth version | 5.2 |
Video connections | DisplayPort (1x), HDMI (1x) |
Power | 90 W |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 piece |
Weight | 1000 g |
Width | 110 mm |
Length | 117.50 mm |
Height | 47.85 mm |
Product Safety |
Length | 21.80 cm |
Width | 13.60 cm |
Height | 17.20 cm |
Weight | 1.45 kg |
