ASUS PC PN43-BBN200MD Intel N200 Black
Intel N200Only 1 piece in stock at supplier
Processor type2
Product details
ASUS ExpertCenter PN43-BBN200MD, N200
Type: Mini-PC
Chipset: System-on-Chip (SoC)
Socket: none
CPU: Intel N200, 0C+4c/4T, 1.00-3.70GHz, 6MB+2MB Cache, 6W TDP, Codename Alder Lake-N (Gracemont, Intel 7)
RAM: 1x DDR4 SO-DIMM, PC4-25600S/DDR4-3200, max. 32GB (UDIMM)
Storage: 1x M.2/M-Key (PCIe 3.0 x4, 2280)
External slots: none
Internal slots: none
Graphics: Intel UHD Graphics (iGPU), 2Xe/32EU/256SP, 0.75GHz, Architecture Xe-LP / Gen 12.2 (Alder Lake GT1)

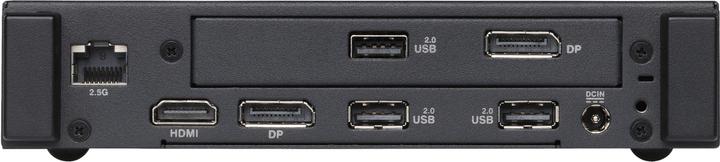

Rear connections: 1x HDMI 2.1, 1x DisplayPort 1.4, 2x USB-A 2.0 (480Mb/s), 1x RJ-45 2.5Gb LAN (Intel), 1x power jack
Additional rear connections: 1x DisplayPort 1.4, 1x USB-A 2.0 (480Mb/s)
Upgradable rear connections: 1x RJ-45 2.5Gb LAN (Intel), 1x VGA, 1x HDMI 2.1, 1x DisplayPort 1.4, 1x serial, 1x USB-C 3.1 with DisplayPort 1.4

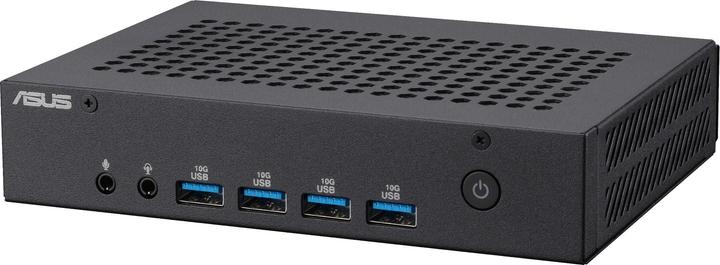

Front/side connections: 4x USB-A 3.1 (10Gb/s), 2x 3.5mm audio jacks
Expansion slots: 1x M.2/E-Key (2230, occupied by WiFi+BT module)
Wireless: Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2, Intel AX211), Bluetooth 5.2
Audio: 2.0 (Realtek ALC3251)
Card reader: none
Power supply: external, 1x power connector (65W/19V/3.42A)

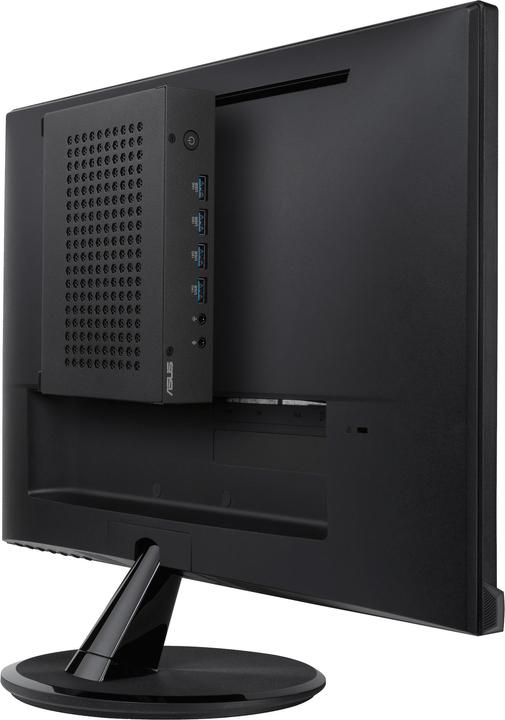

VESA mount: 75x75/100x100 (optional)
Dimensions (WxHxD): 166.2x33.9x119.7mm
Weight: 700g
Volume: 1l
CPU cooler: included
Special features: fanless, security lock (Kensington), suitable for continuous operation.
Number of processor cores | 4 -Core |
Graphics card model | Intel UHD Graphics |
USB ports | USB-A |
Network connections | RJ45 Gigabit Ethernet (1x) |
Video connections | DisplayPort |
Item number | 52297962 |
Manufacturer | ASUS |
Category | Barebones |
Manufacturer no. | 90MR0172-M00040 |
Release date | 18.10.2024 |
Processor type | Intel N200 |
Clock frequency | 3.70 GHz |
Number of processors | 1x |
Number of processor cores | 4 -Core |
Number of threads | 4 |
Socket | BGA 1264 |
Max. turbo clock rate | 3.70 GHz |
Processor properties | Onboard processor |
Memory form factor | SO-DIMM |
Memory Slots available | 1 |
Max. memory slots | 1 |
Max. RAM | 32 GB |
Graphics card model | Intel UHD Graphics |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (3x), USB-A 3.2 Gen 1 (4x) |
Network connections | RJ45 Gigabit Ethernet (1x) |
Max. port speed | 1000 Mbit/s |
Connectivity | Bluetooth, WLAN |
Wi-Fi standard | Wi-Fi 6E / 802.11az |
Wi-fi frequency | 6 GHz |
Bluetooth version | 5.3 |
Video connections | DisplayPort |
Memory card type | SDXC |
Power | 65 W |
Country of origin | China, Taiwan |
Manufacturer commitment | RE100, SBTi |
CO₂ emissions | 202,54 kg |
Climate contribution | EUR 5,05 |

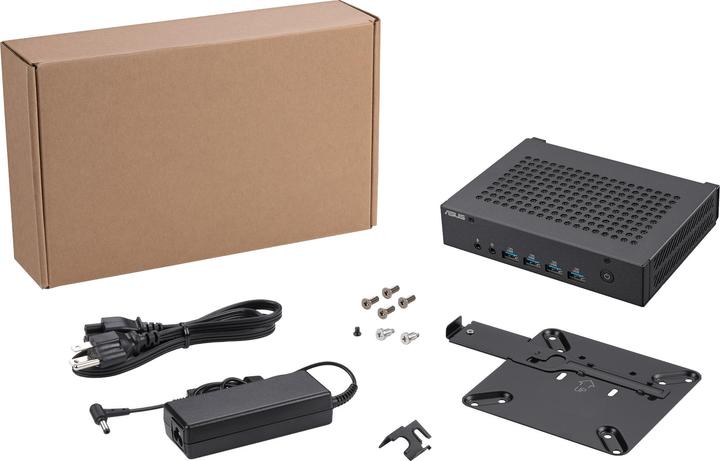

Scope of delivery | Power supply |
Weight | 700 g |
Width | 166.20 mm |
Length | 119.70 mm |
Height | 33.90 mm |
Product Safety |
Length | 35.60 cm |
Width | 24.90 cm |
Height | 7 cm |
Weight | 1.77 kg |
