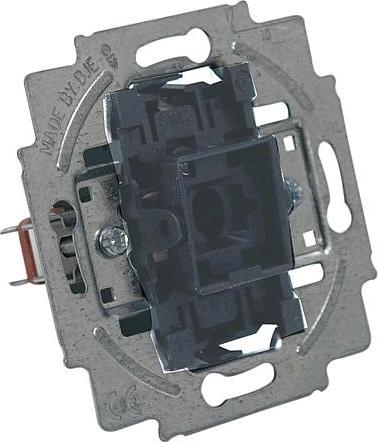

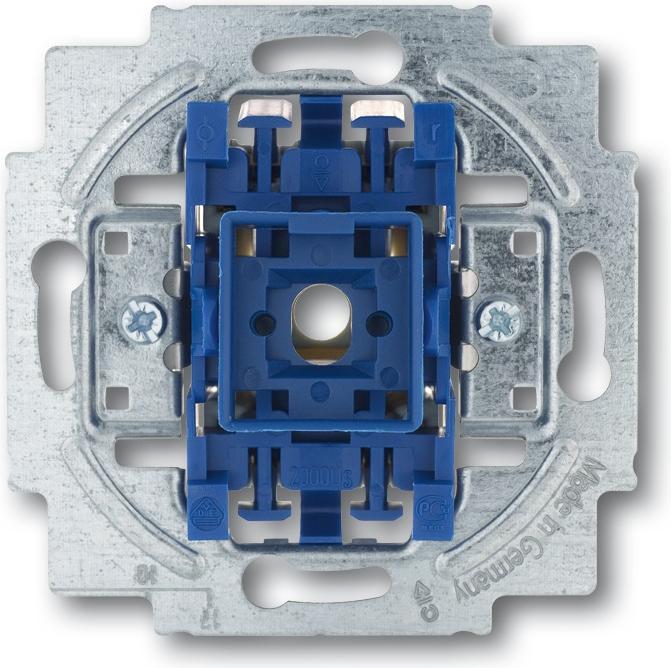

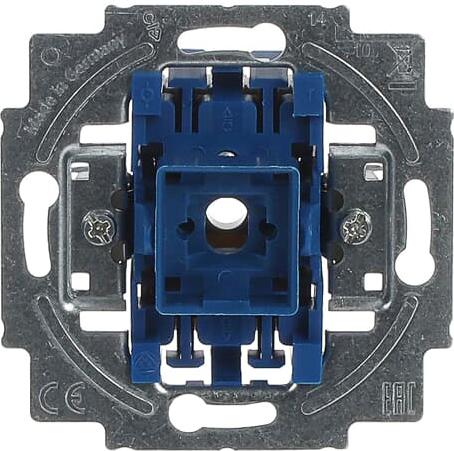

Busch-Jaeger Changeover Switch Insert 2020 US-206

Manufacturer: Busch-Jaeger
Designation: Changeover Switch Insert 1-pole
Type: 2020 US-206
Composition: Basic Element
Design: Single Switch
Operation Type: Push Button
Number of Contacts as Normally Open: 1
Number of Contacts as Normally Closed: 1
Number of Contacts as Changeover: 1
Contactless Design: No
Number of Actuation Rockers: 1
Number of Poles: 1
Rated Voltage: 250 V
Rated Current: 10 A
With Lighting: No
With Light Source: No
With Signal Lamp: No
Feedback Contact: No
Connection Type: Plug Terminal
Mounting Type: Flush Mounted
Mounting Method: Claw/Screw Mounting
Material: Plastic
Material Quality: Thermoset
Halogen-Free: Yes
Antibacterial Treatment: No
Surface Protection: Untreated
Surface Finish: Matte
Color: Blue
RAL Number (similar): 5010
Transparent: No
Text Field/Label Area: No
Printing: None
Suitable for Protection Class (IP): IP20

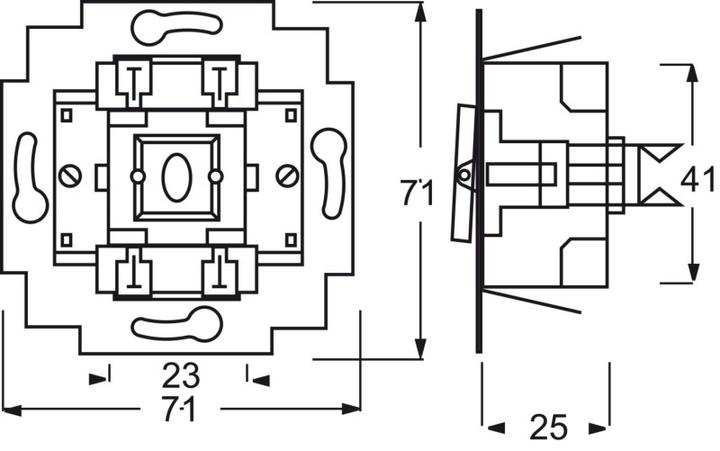

Device Width: 71 mm
Device Height: 71 mm
Device Depth: 40 mm
Min. Depth of Device Box: 25 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT Support Available: No

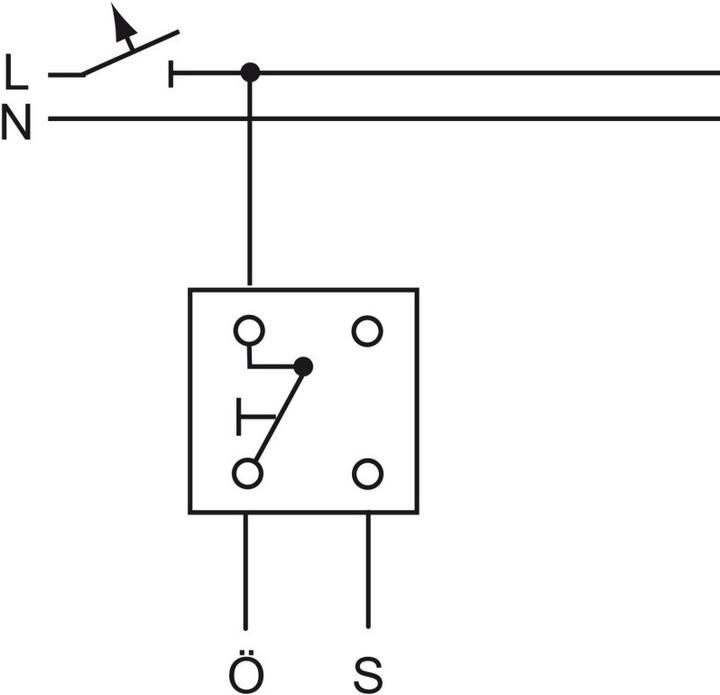

Can be used as Normally Open (Rest Current) or Normally Closed (Working Current). With N terminal. To be mounted only in conjunction with standard flush-mounted device boxes according to DIN 49073. Can be illuminated by inserting lamp types 8350, 8352, 8353, 8337-1, 8345-1, and 8344-1, as well as LED inserts. Rear conductor connection with spring terminal and side spring release. The lamp holder can be inserted from the back. The neon lamp can be inserted from the front.
