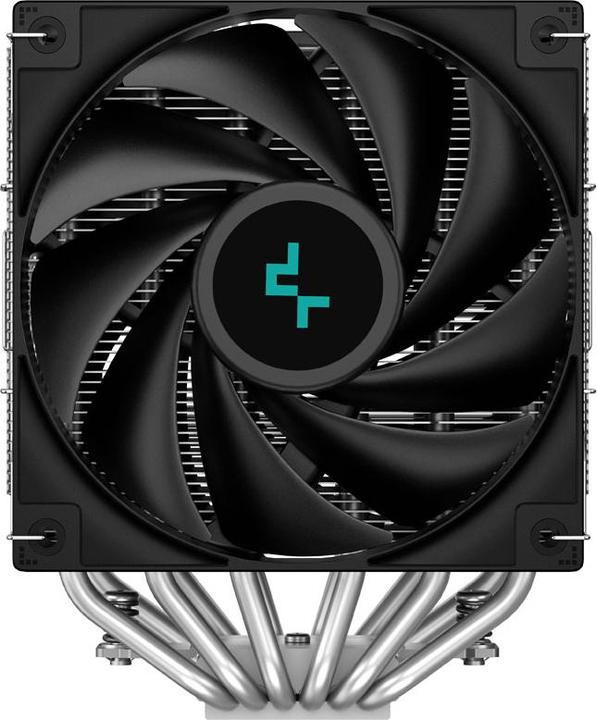

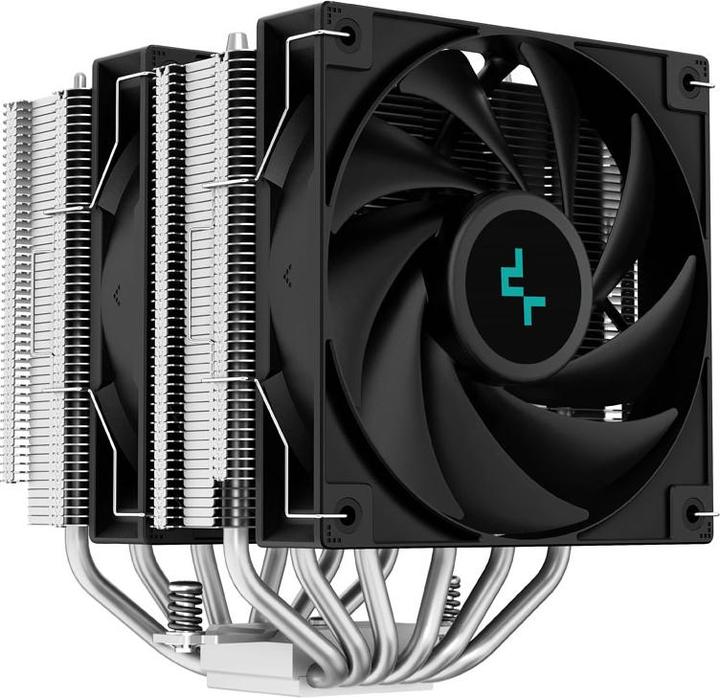

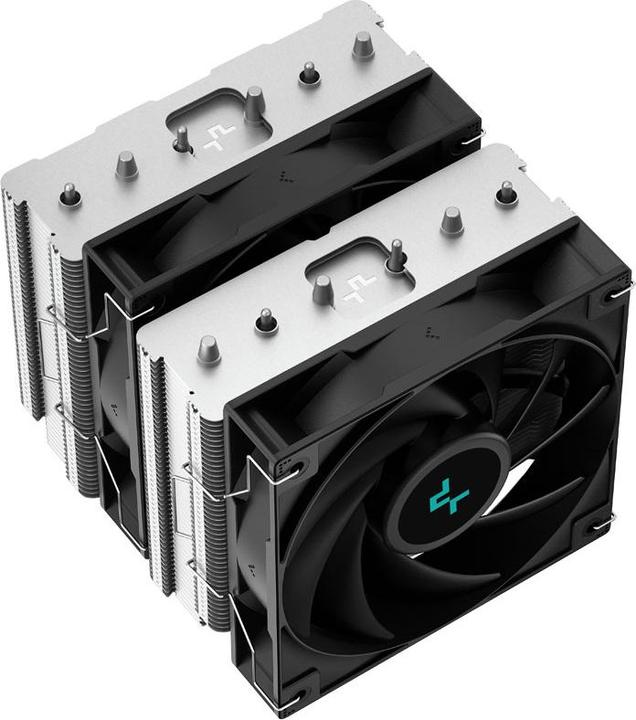

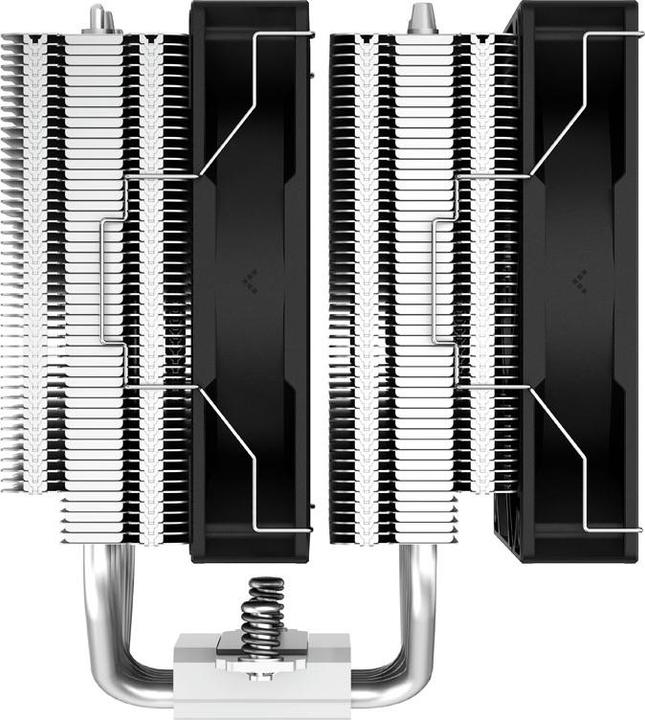

The DeepCool AG620 is a dual-tower CPU cooler with a 120 mm fan that offers an impressive cooling performance of 260 W and is optimized for excellent efficiency.
Significant Cooling Performance
Keep temperatures low with up to 260 W of heat dissipation capacity to ensure your system runs at peak performance without issues.

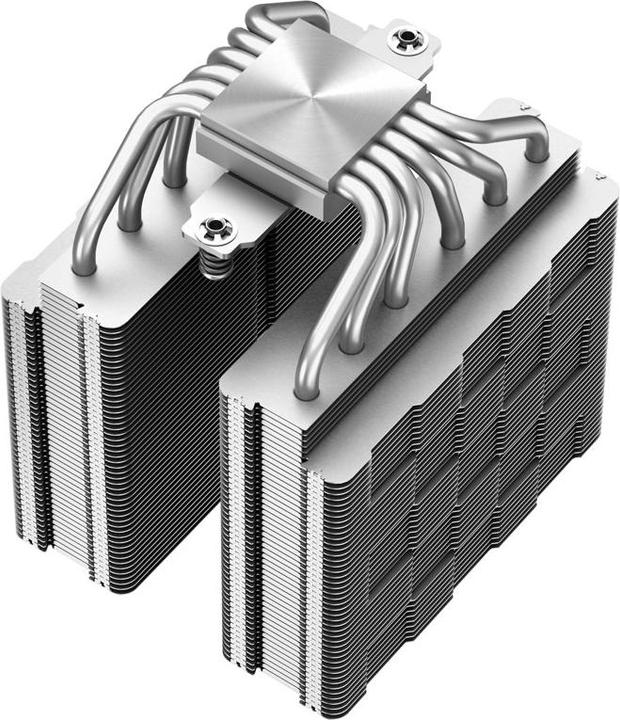

Balanced Bidirectional Heatpipe Technology
By optimizing the internal capillary structure and injecting a precise amount of liquid, the heatpipe achieves the best heat dissipation performance, regardless of whether the cooler is installed in a vertical or horizontal case. This perfect ratio allows for a highly efficient phase change in the heatpipe, resulting in lower thermal resistance across a wide TDP range.

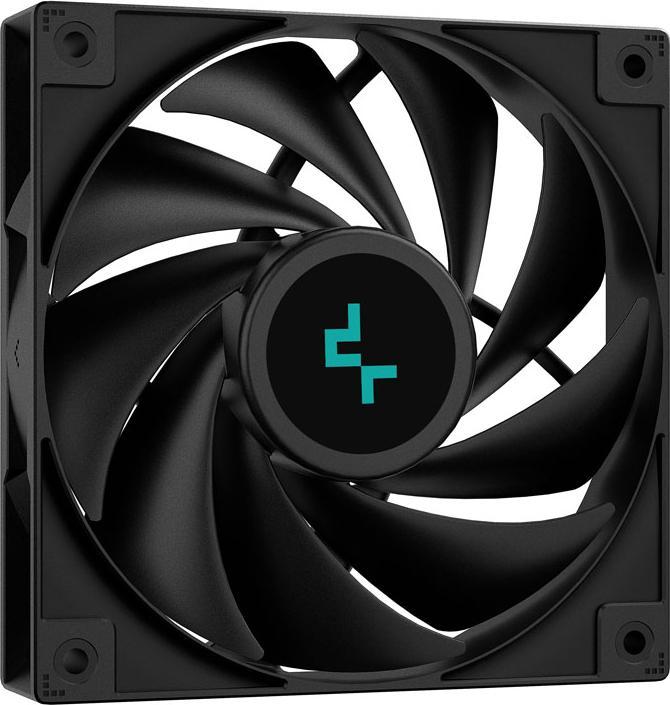

High-Efficiency Fans
Find your optimal balance with automatic PWM support for full power under load and quiet efficiency at idle. 300-1850 RPM ≤ 29.4 dB(A) 67.88 CFM.

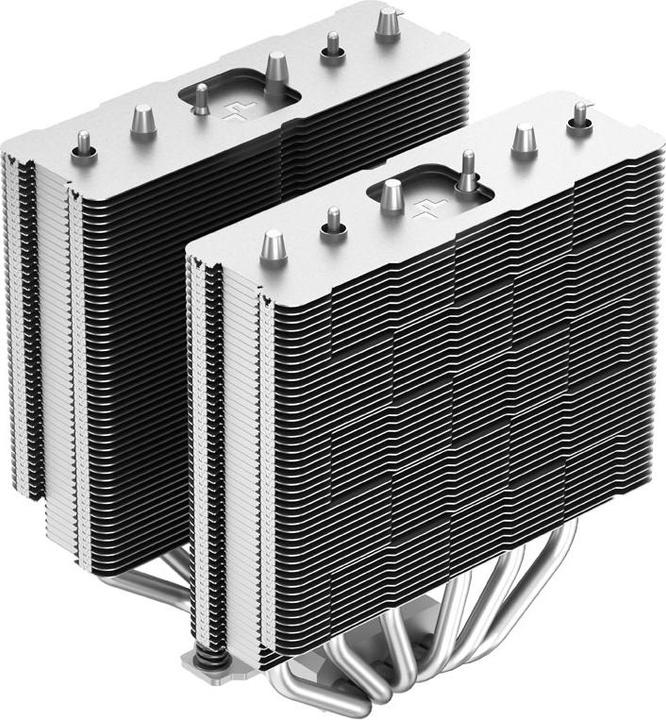

Matrix Fin Array
High-quality aluminum fins on the heatsink are densely stacked for ideal heat dissipation and feature a unique "checkerboard" design.
Simple and Secure
The included metal mounting brackets support both Intel and AMD platforms with an easy five-step installation process that ensures excellent contact pressure.
Socket | AM4, AM5, LGA 1150, LGA 1151, LGA 1155, LGA 1200, LGA 1700, LGA 2011, LGA 2011-v3, LGA 2066 |
Diameter | 120 mm |
Number of fans | 2x |
Max. TDP | 260 W |
Airflow | 115.33 m³/h |
power connector | 4-pin PWM |
Height (with fan) | 157 mm |
Item number | 22930077 |
Manufacturer | Deepcool |
Category | CPU coolers |
Manufacturer No. | R-AG620-BKNNMN-G-1 |
Release date | 3.11.2022 |
External links |
Colour | Silver |
Exact colour description | Aluminium, Black |
CPU cooler design | Dual Tower |
Fan type | Standard |
Socket | AM4, AM5, LGA 1150, LGA 1151, LGA 1155, LGA 1200, LGA 1700, LGA 2011, LGA 2011-v3, LGA 2066 |
Cooler mounting | Screw |
Supported fan sizes | 120mm |
Number of heatpipes | 6 |
Diameter heat pipe | 6 mm |
Number of cooling fins | 127 |
Materials radiator core | Copper |
Material cooling fins | Aluminium |
Diameter | 120 mm |
Number of fans | 2x |
Maximum mountable fan | 2 |
Max. Speed | 1850 RPM |
Max. TDP | 260 W |
Airflow | 115.33 m³/h |
Static pressure | 20 Pa |
Max. noise level | 29.40 dB |
LED lighting | without LED |
power connector | 4-pin PWM |
Power consumption | 1.68 W |
Voltage | 12 V |

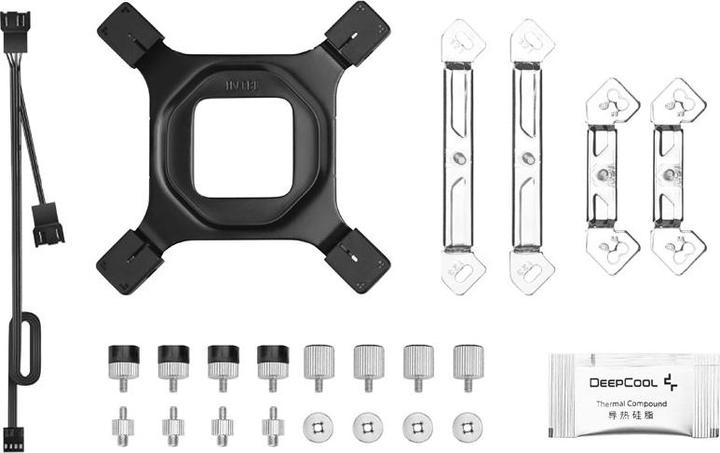

Scope of delivery | 2x 120 mm fan, Heat pad, Installation kit |
Country of origin | China |
CO₂ emissions | 158,74 kg |
Climate contribution | EUR 3,09 |
Width (with fan) | 136 mm |
Length (with fan) | 129 mm |
Height (with fan) | 157 mm |
Weight | 1300 g |
Product Safety |
Length | 18 cm |
Width | 17.80 cm |
Height | 22.30 cm |
Weight | 1.51 kg |
How often does a product of this brand in the «CPU coolers» category have a defect within the first 24 months?
Source: GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: GalaxusHow often is a product of this brand in the «CPU coolers» category returned?
Source: Galaxus
DeepCool has eight variants of this symmetrical cooler on sale, including unpainted, white and those with an RGB-illuminated display cover that shows the fan speed and CPU temperature [4]. They do not differ in their excellent cooling performance; the fans, which rotate quietly up to 1600 rpm, are always identical...
