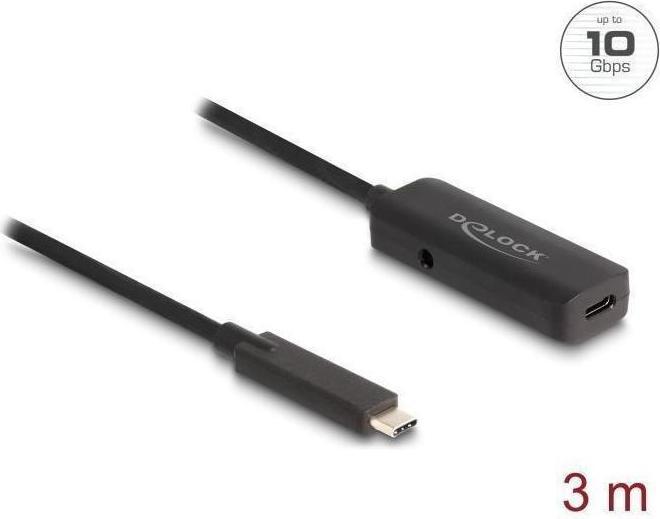

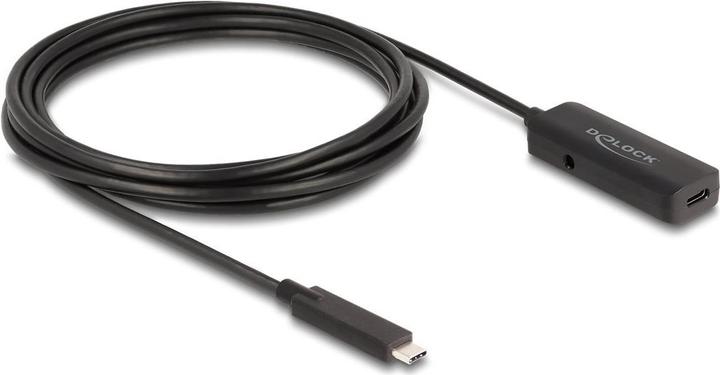

This active USB cable from Delock extends a USB connection by 3 meters. The cable features an additional DC power socket, to which an optional power supply can be connected. This ensures optimal data transfer even when used with high-performance devices, such as a 2.5-inch hard drive.

Note: The cable cannot transmit video signals, so connecting a USB Type-C monitor is not possible.

Specifications:

• Connectors:
• 1 x USB 10 Gbps USB Type-C plug
• 1 x USB 10 Gbps USB Type-C socket
• 1 x DC power socket
• Chipset: Prolific PL2586
• DC connection for optional power supply
• Wire gauge:
• 30 AWG data line
• 24 AWG power line
• Cable diameter: approx. 4.8 mm
• Data transfer rate up to 10 Gbps
• Output current:
• 1.5 A without power supply
• 2 A with power supply
• Output voltage: 5 V
• Color: black
• Dimensions of the housing (LxWxH): approx. 62.1 x 23.1 x 11.5 mm
• Length without connectors: approx. 3 m

Specifications of the power connection:

• Input: 5 V / 2 A
• Dimensions: outer, positive inside
• Dimensions:
• inner: approx. 1.35 mm diameter
• outer: approx. 3.5 mm diameter
• Length: approx. 9.65 mm

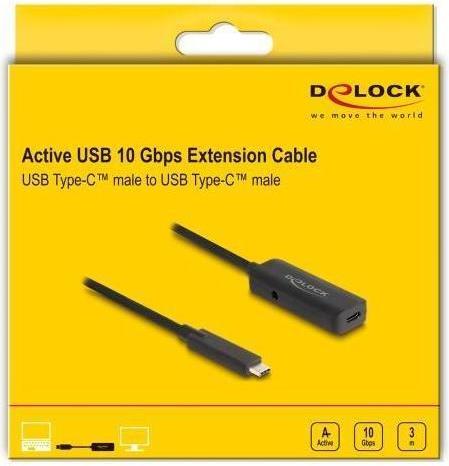

Package contents:

• USB extension cable.
