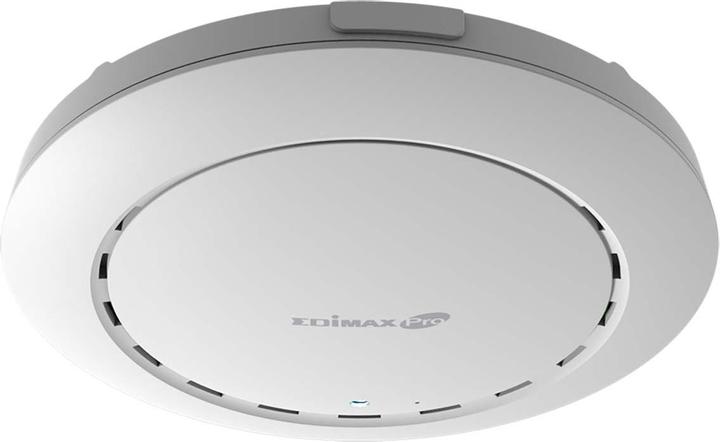

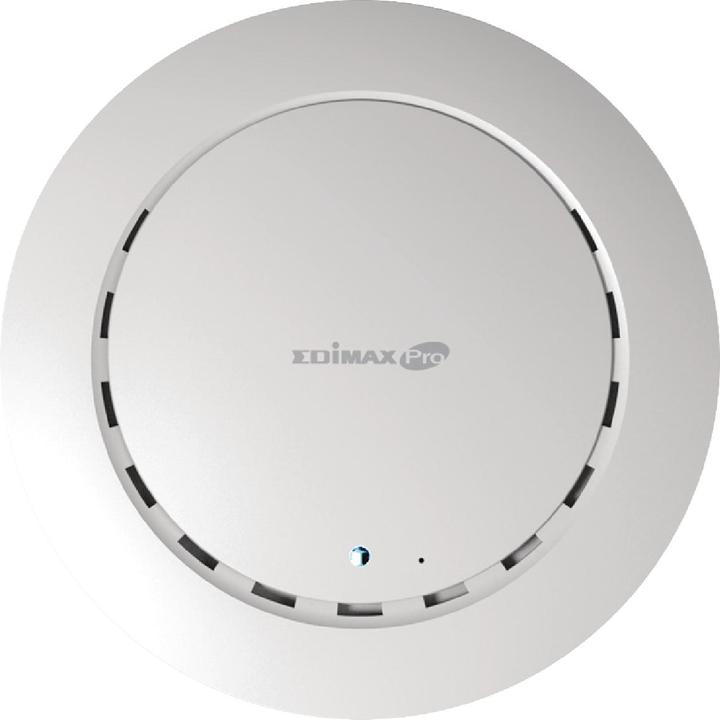

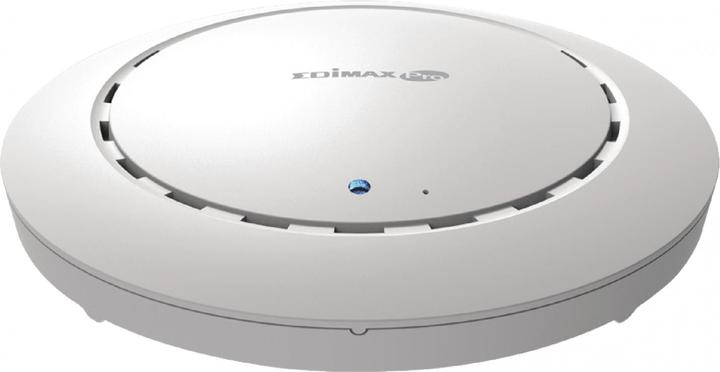

Edimax Pro CAP1200: Managed PoE Access Point
867 Mbit/sOnly 1 piece in stock at supplier
Product details

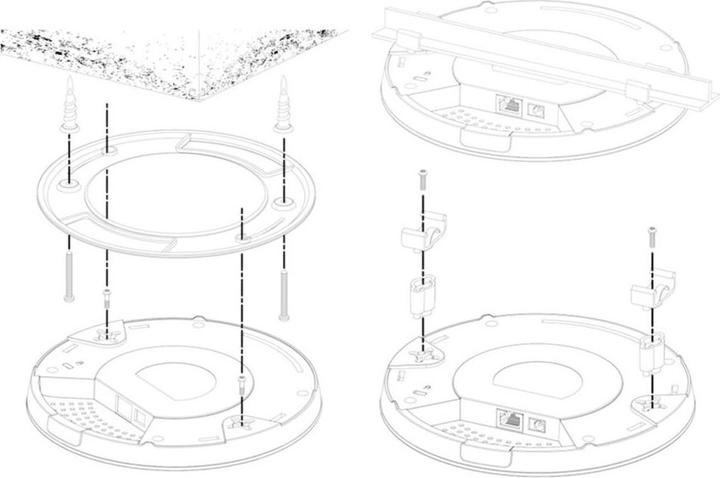

Powerful solution for modern business. The CAP1200 is a premium Wi-Fi solution designed for SMB applications where excellent network performance is essential. The product supports the latest 2x2 IEEE 802.11AC technology for simultaneous dual-band Wi-Fi data transfer rates of up to 1200 Mbps. With its combination of extensive features and high user-friendliness, the CAP1200 is the ideal dual-band high-performance solution for demanding daily business transactions. This is further enhanced by its industrial-grade construction and the option for easy wall mounting.

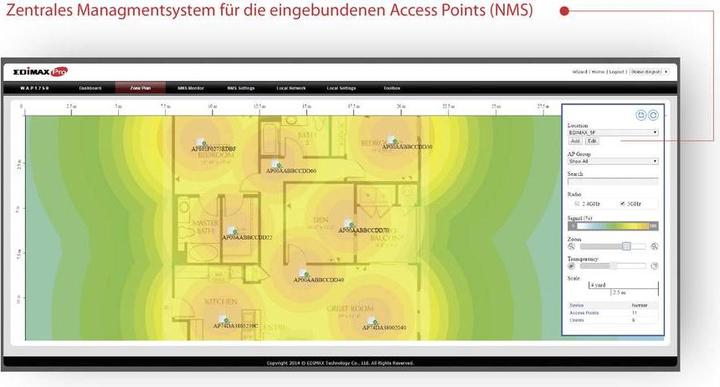

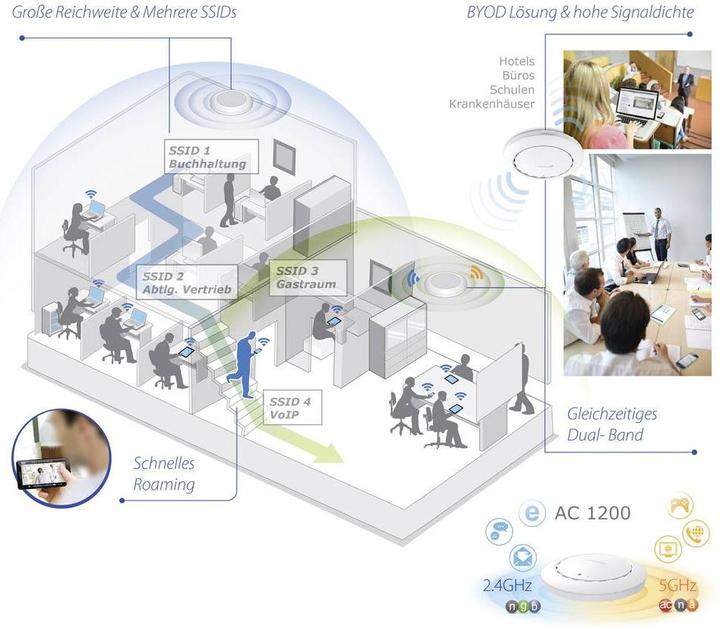

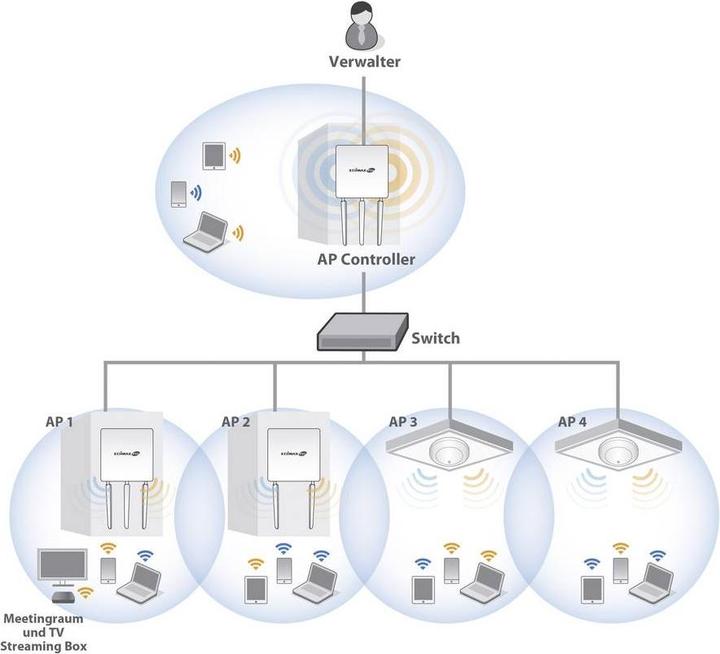

The EdimaxPro series offers a wide range of potential applications for businesses, schools, universities, hospitals, and hotels that require security, flexibility, and speed. Multiple SSIDs can be configured for individual departments or user groups, and the integrated RADIUS server allows for additional verification with a scalable AP group architecture for centralized management of the connected access points.
The capacity for high signal density is designed for up to 100 clients working simultaneously on the intranet or the internet. It is ideal for BYOD (Bring Your Own Device) workplaces or other environments with a large number of mobile clients and devices that require consistent data roaming quality between individual access points.
Thanks to the supported PoE (Power over Ethernet) and the intuitive web-based user interface with extensive management options, the access points are flexible in their deployment for MIS (Management Information System) departments and their network administrators. Additionally, the optional security cover and the detection system for insecure access points protect against theft and unauthorized access.
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac |
Wi-Fi frequency band | Dual band |
PoE Standard | 802.3at (PoE+) |
Operating modes | Wi-Fi client |
Area of application | Business |
Number of RJ45/LAN ports | 1 |
Max. port speed | 1000 Mbit/s |
Item number | 6045742 |
Manufacturer | Edimax Pro |
Category | Access points |
Manufacturer no. | CAP1200 |
Release date | 20.12.2016 |
Operating modes | Wi-Fi client |
Max. number of clients | 100 x |
Number of antennas | 4 x |
Antenna gain | 4 dB |
Number of RJ45/LAN ports | 1 |
Max. port speed | 1000 Mbit/s |
Access Point Functions | PoE capable |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac |
6 GHz transmission rate | 867 Mbit/s |
5 GHz transfer rate | 867 Mbit/s |
2.4 GHz transfer rate | 300 Mbit/s |
Wi-Fi frequency band | Dual band |
Wi-Fi encryption | WPA, WPA2 |
Area of application | Business |
Installation place | Ceiling |
Power supply | Electrical connection |
PoE Standard | 802.3at (PoE+) |
Power consumption | 11 W |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | PoE WLAN access point |
Length | 17.60 cm |
Width | 17.60 cm |
Height | 3.20 cm |
Weight | 305.70 g |
Length | 29.50 cm |
Width | 22.20 cm |
Height | 7.30 cm |
Weight | 775 g |
