Exsys GmbH Dual PCIe network card 2x 1Gigabit
Mini PCI ExpressProduct details

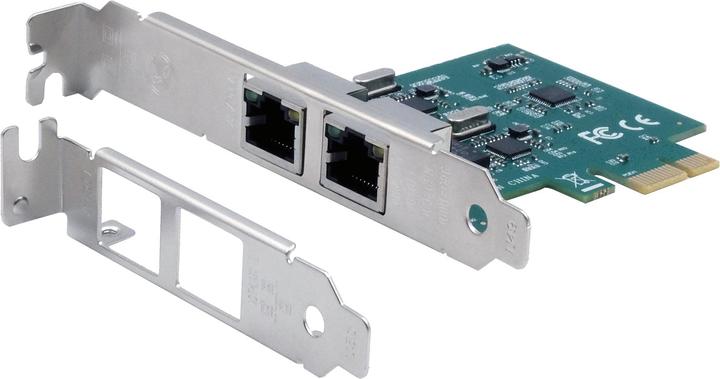

The EX-60102 is a Gigabit Ethernet card with two RJ45 ports for the PCI Express bus. It supports half and full duplex as well as NWay auto-negotiation to automatically adjust to the network speed (10/100/1000 Mbps). Additionally, the EX-60102 automatically detects crossover cables and offers comprehensive support for various operating systems. A low-profile bracket is included with the card to facilitate installation in a slim PC case.
Main features:
- Connections and interfaces:
- Transmission technology: Wired
- Host interface: PCI Express
- Interface: Ethernet
- Number of Ethernet LAN ports (RJ-45): 2
- Maximum data transfer rate: 1000 Mbps
- Network standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
- Built-in Ethernet port: Yes
- Ethernet interface type: Gigabit Ethernet
- Ethernet LAN data transfer rates: 10, 100, 1000 Mbps
- Cabling technology: 10/100/1000BaseT(X)
- WLAN: No
- Wake-on-LAN ready: Yes
- Full duplex: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Design: Built-in: Yes
- Component for PC
- Product color: Green, Gray
- Chipset: Realtek RTL8111F
- LED indicators: Yes
- Country of origin: China
- Certification: FCC
System requirements:
- Supports Windows operating systems: Yes
- Supported Linux operating systems: Yes
Operating conditions:
- Relative humidity in operation: 5 - 90%
Sustainability:
- Sustainability compliance: Yes
- Sustainability certificates: CE
Weight and dimensions:
- Width: 67 mm
- Depth: 76 mm
- Weight: 120 g

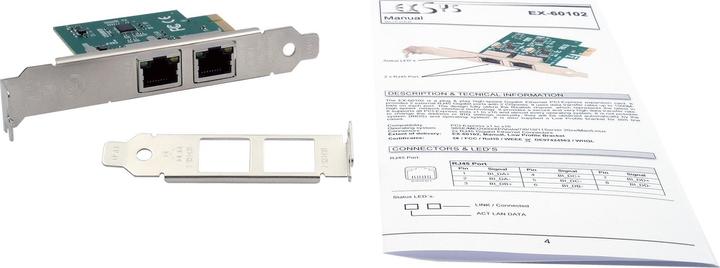

Delivery contents:
- Mounting brackets included: Yes
- Operating manual: Yes.
Network adapter type | Ethernet adapter |
Max. port speed | 1000 Mbit/s |
Network connections | RJ45 (2x) |
Documents | Technical data sheet.pdf |
Item number | 23355454 |
Manufacturer | Exsys |
Category | Network cards |
Manufacturer no. | EX-60102 |
Release date | 8.9.2022 |
Colour | Green |
Exact colour description | Green, Grey |
Network adapter type | Ethernet adapter |
Hardware interface | PCI Express Mini Card |
Max. port speed | 1000 Mbit/s |
Number of ports | 2x |
Network connections | RJ45 (2x) |
Max. data transfer rate | 1 Gbit/s |
Country of origin | China |
CO₂ emissions | 7,95 kg |
Climate contribution | EUR 0,20 |
Scope of delivery | Low Profile Aperture |
Length | 76 mm |
Width | 76 mm |
Height | 67 mm |
Weight | 120 g |
Product Safety |
Length | 22.90 cm |
Width | 15.30 cm |
Height | 3.70 cm |
Weight | 114 g |
