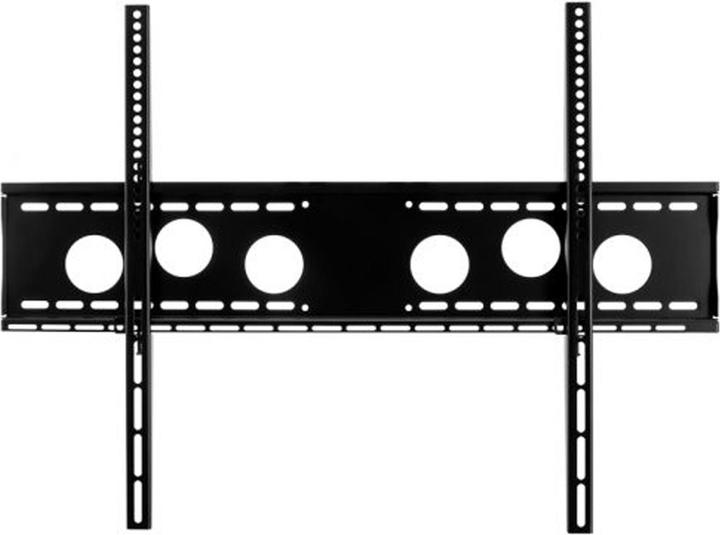

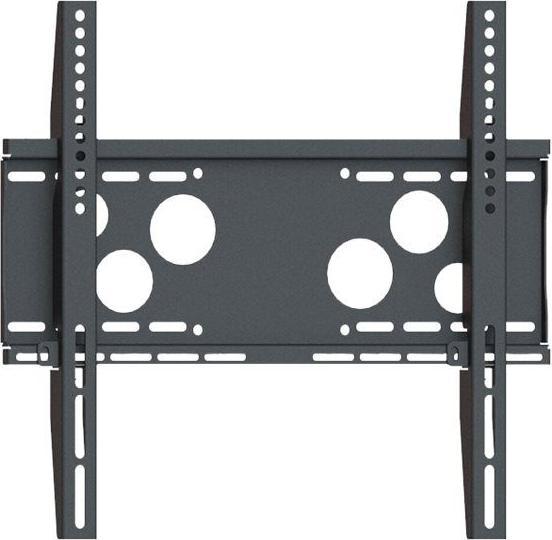

The WH 85 F-HD is a fixed wall mount for flat screens ranging from 55 to 110 inches (140 to 279 cm), which can be used in both landscape and portrait orientations. In addition to the standard mounting option up to a maximum of VESA 800 x 600 mm, the WH 85 F-HD also offers a 125 mm hole pattern for optional adaptation to HAGOR floor or ceiling systems. The mount is characterized by its extremely stable construction and is particularly suitable for very heavy screens with a maximum load capacity of 125 kg.

The slim mount is impact- and scratch-resistant with a black powder-coated finish and saves a lot of space with a minimal wall distance of only 32 mm. An integrated level ensures easy installation. To adjust the optimal height, a height compensation of up to 10 mm is possible. The included padlock allows the mount to be secured against theft.

Technical Data:

• Manufacturer: Hagor
• Product Group: Wall Mounts
• Product Type: Wall Mount
• Color: Black
• Maximum Load Capacity: 125 kg
• Tiltable: No
• Height Adjustable: No
• Rotatable: Yes
• Max. Screen Diagonal: 279 cm (110 inches)
• Min. Screen Diagonal: 140 cm (55 inches)
• VESA 100 x 100 mm: Yes
• VESA 200 x 200 mm: Yes
• VESA 400 x 200 mm: Yes
• VESA 400 x 400 mm: Yes
• VESA 600 x 400 mm: Yes
• VESA 800 x 400 mm: Yes
• Material Group: Metal

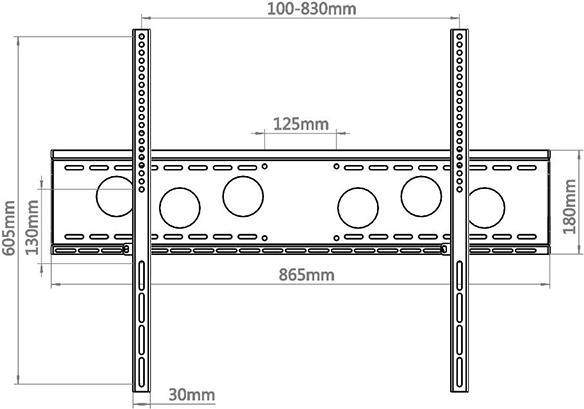

• Height: 630 mm
• Width: 865 mm
• Depth: 32.5 mm
• Weight: 5.2 kg
• Package Weight: 5.2 kg
• Gross Weight: 5.2 kg.
