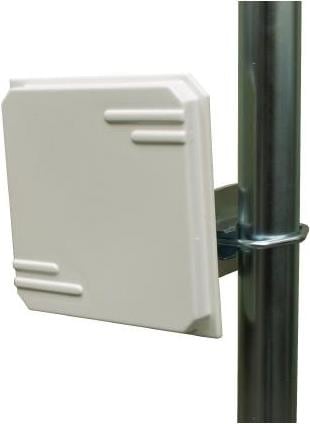

IT ELITE PAT24014 - 2.4 GHz, 14 dBi Outdoor Panel Antenna

The panel antenna operates in the 2.4 GHz frequency band with a gain of 14 dBi and can be mounted with either horizontal or vertical polarization.

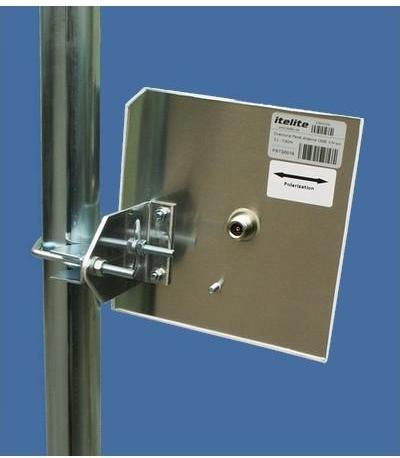

The antenna is housed in a UV-resistant plastic casing with an aluminum mounting plate. The corrosion resistance of the materials allows the antenna to be used in saltwater environments. The high quality of the mast mounting ensures easy height and tilt adjustment.

The antenna can be used for client stations and base stations. Due to the reduced side lobes, the antenna achieves an extremely high data throughput and has a strong signal, even in heavily frequented areas.

Main features:

• 14 dBi directional antenna gain
• Outstanding performance
• Extremely high data throughput
• Insensitive to interference from other networks
• Wide impedance matching
• Horizontal or vertical polarization
• Stable mounting elements
• Suitable for outdoor use

Specifications:

• 2.4 GHz ISM band Wireless LAN
• WiFi Access Points
• Wireless HotZones
• Client Station

Electrical properties:

• Frequency range: 2400 – 2500 MHz
• Gain: 14 dBi
• Polarization: vertical or horizontal
• Horizontal beamwidth: 38°
• Vertical beamwidth: 39°
• VSWR:
• Impedance: 50 Ohm
• Front-to-back ratio: > 25 dB
• Lightning protection: DC ground

Mechanical properties:

• Technology: Microstrip
• Input: N socket
• Dimensions: 165 x 165 x 37 mm
• Weight: 0.6 kg
• Radome material: UV-resistant high impact polystyrene
• Color: white
• Material: high-quality aluminum alloy
• Application area: all-weather suitable.
