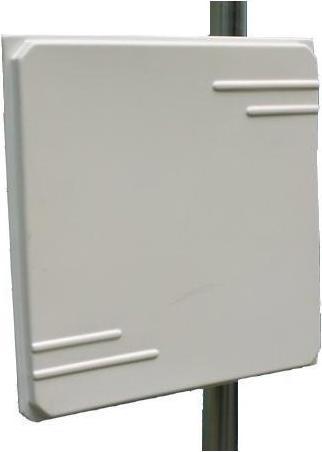

IT ELITE PAT24019 - 2.4 GHz, 19 dBi Outdoor Panel Antenna

The panel antenna operates in the 2.4 GHz frequency range with a gain of 19 dBi. The antenna can be mounted for horizontal or vertical polarization.

It is constructed from high-quality materials, such as an aluminum alloy, UV-resistant ABS, and stainless steel. It is perfectly suited for use in harsh weather conditions. The material is corrosion-resistant and can also be used in areas with high salt content. The high quality of the mast mounting ensures easy and smooth tilt adjustment as well as stable operation.

It can be used in client stations and also as a small base station.

Key Features:

• 19 dBi directional antenna gain
• Outstanding performance
• Extremely high data throughput
• Resistant to interference from other networks
• Very good impedance matching
• Horizontal or vertical polarization
• Stable mounting elements
• Suitable for outdoor use even in severe weather

Applications:

• 2.4 GHz band Wireless LAN
• IEEE 802.11b/g WLAN systems
• Point-to-point applications

Electrical Properties:

• Frequency range: 2400 - 2500 MHz
• Gain: 19 dBi
• Polarization: Vertical or horizontal
• Horizontal beamwidth: 20°
• Vertical beamwidth: 20°
• VSWR:
• Impedance: 50 Ohm
• Front-to-back ratio: >35 dB

Mechanical Properties:

• Technology: Microstrip
• Connector: N-jack

Dimensions: 345 x 345 x 20 mm / 13.6 x 13.6 x 0.8"
Weight: 1.3 kg / 2.9 lbs
Radome material: UV-resistant ABS
Color: White
Material: High-quality aluminum alloy
Application range: All-weather suitable.
