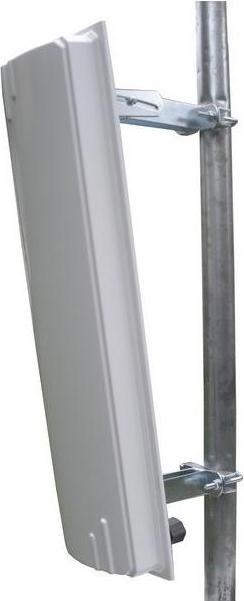

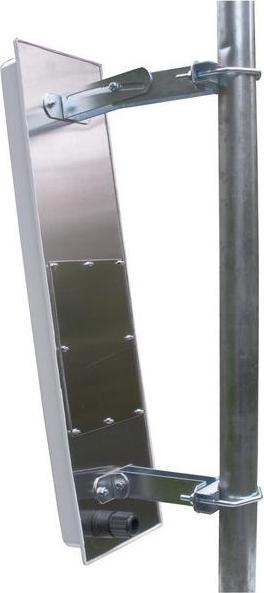

IT Elite Pro-SEC50017V - 5 GHz, 17 dBi Sector Antenna Box

Professional sector antenna operating in the 5 GHz band with 17 dBi gain and vertical polarization. The weatherproof outdoor enclosure provides ample space for RouterBOARDs or other electronic equipment. It features a special RJ-45 waterproof Ethernet connector for easy network and PoE connection. Designed for operation under severe weather conditions, the materials used allow for corrosion-free performance even in saltwater environments.

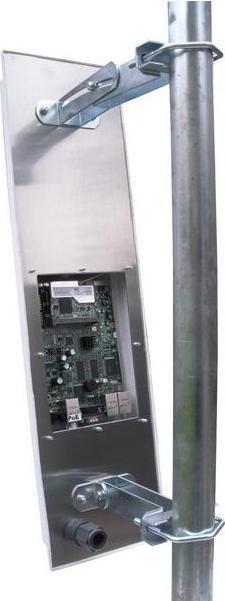

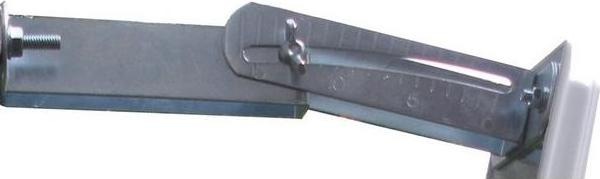

The professional mounting system with a 0-15 degrees scale ensures easy and smooth tilt adjustment, providing stable operation. This product is ideal for point-to-multipoint applications in highly professional solutions. Inside the enclosure are suitable posts for MikroTik RouterBOARD 411 and 433 series models.

Key Features:

• 17 dBi sectorial gain
• Shielded radio compartment
• Suitable for MikroTik RouterBOARDs
• Special outdoor weatherproof enclosure
• High-quality construction
• Vertical polarization
• Heavy-duty mounting elements
• Easy elevation and tilt adjustment
• Designed for all-weather operation

Applications:

• 5 GHz band Wireless LAN
• IEEE 802.11a WLAN systems
• RLAN
• WiMAX
• Point-to-multipoint applications

Electrical Properties:

• Frequency: 5.1 - 5.9 GHz
• Gain: 17 dBi
• Polarization: Vertical
• Beamwidth (horizontal): 90° (-3 dB), 120° (-6 dB)
• Beamwidth (vertical): 8°
• VSWR:
• Impedance: 50 Ohm
• Front-to-back ratio: > 35 dB
• Lightning protection: DC ground

Enclosure Properties:

• Technology: Microstrip
• Material: UV-resistant
• Color: White
• Ingress Protection Rating (EN 60529): IP 66
• Min. temperature: -40°C / -40°F
• Max. temperature: 80°C / 176°F

Mechanical Properties:

• Compatible with: RB411 and RB433 series
• Input connector: SMA female, U.FL or MMCX pigtail optional
• Enclosure connector: Waterproof Ethernet connector
• Outside dimensions: 580 x 150 x 60 mm / 22.8 x 5.9 x...
