IT ELITE SEC23015V - 2.3 GHz, 15 dBi Outdoor Sector Antenna

The sector antenna operates in the 2.3 GHz band with a gain of 15 dBi. Due to its reduced side lobes, it provides a clear, strong signal even in heavily frequented areas. The antenna is resistant to interference from other networks. Increasing the data throughput or changing the channel does not interrupt the connection.

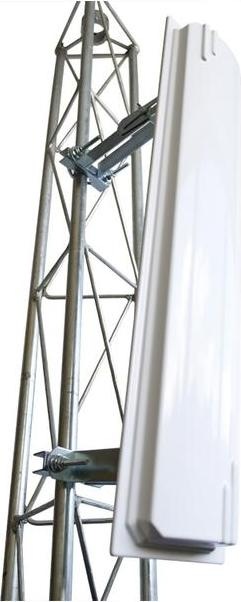

Perfectly suited for use in challenging weather conditions, as the corrosion-resistant materials allow the antenna to be operated in saltwater environments. A professional mounting system with a 0-15 degree scale ensures easy and smooth tilt adjustment as well as stable operation.

Key Features:

• 15 dBi sector gain
• Special weatherproof outdoor housing
• Highest protection class IP 66
• High-quality construction
• Minimized side lobes
• Vertical polarization
• Robust mounting elements
• Easy alignment
• Designed for use in all weather conditions

Applications:

• WCS band 2.3 - 2.36 GHz
• Point-to-multipoint applications

Electrical Properties:

• Frequency: 2.3 – 2.36 GHz
• Gain: 15 dBi
• Polarization: Horizontal or vertical
• Horizontal beamwidth: 90°
• Vertical beamwidth: 12°
• VSWR:
• Impedance: 50 Ohm
• Front-to-back ratio: >35 dB

Housing Properties:

• Technology: Microstrip
• Material: UV resistant
• Color: White
• Protection class (EN 60529): IP 66
• Min. temperature: -40°C
• Max. temperature: 120°C

Mechanical Properties:

• Connector: N socket
• External dimensions: 580 x 125 x 50 mm
• Weight: 1.5 kg.
