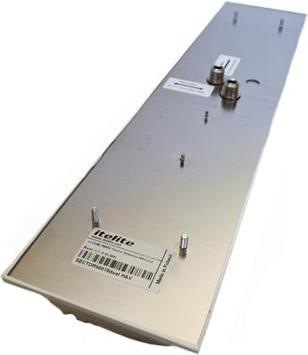

IT ELITE SEC24015DP - 2.4 GHz, 2x 15 dBi Sector Antenna

The sector antenna operates in the 2.4 GHz range with 2 independent antennas providing 15 dBi gain in both horizontal and vertical polarization. It is the ideal solution for MIMO and Dual Nstreme configurations.

Perfectly suited for use in challenging weather conditions, as the corrosion resistance of the materials allows the antenna to operate even in saltwater environments. A professional mounting system with a 0-15 degree scale ensures easy and smooth tilt adjustment as well as stable operation.

Key Features

• 2x 15 dBi sector gain
• Dual polarization in one housing
• Special weatherproof outdoor enclosure
• Protection class IP 67
• High-quality construction
• Robust mounting elements
• Easy alignment
• Designed for operation in any weather

Applications

• MIMO
• 2.4 GHz band Wireless LAN
• IEEE 802.11b/g/n WLAN systems
• Point-to-multipoint applications

Electrical Properties

• Frequency: 2.4 - 2.5 GHz
• Gain: 2x 15 dBi
• Polarization: Dual
• Horizontal beamwidth: 90° (-3 dB), 120° (-6 dB)
• Vertical beamwidth: 12°
• VSWR:
• Impedance: 50 Ohm
• Front-to-back ratio: >35 dB

Housing Properties

• Technology: Microstrip
• Material: UV resistant
• Color: White
• Min. Temperature: -40°C
• Max. Temperature: 120°C

Mechanical Properties

• Antenna connector: N socket
• Dimensions: 580 x 125 x 50 mm
• Weight: 1.5 kg.
