IT ELITE SEC24015V - 2.4 GHz, 15 dBi Outdoor Sector Antenna

The sector antenna operates in the 2.4 GHz band with a gain of 15 dBi and vertical polarization. Due to its reduced side lobes, the antenna provides a clear, strong signal even in heavily frequented areas. The antenna is resistant to interference from other networks. Increasing the data throughput or changing the channel does not interrupt the connection.

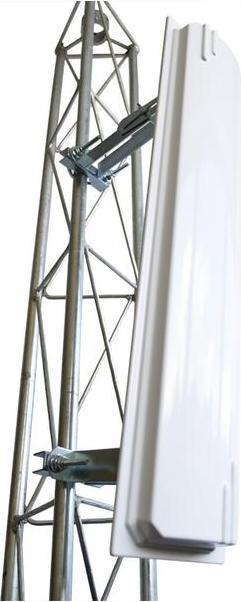

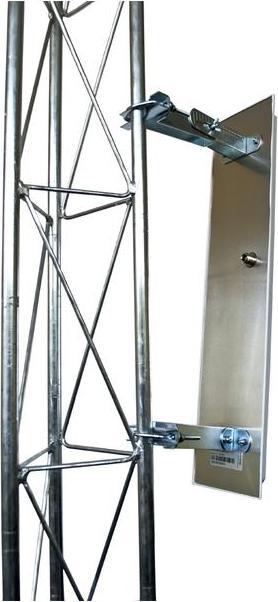

It is perfectly suited for use in challenging weather conditions, as the corrosion resistance of the materials allows the antenna to be operated even in saltwater environments. A professional mounting system with a 0-15 degree scale ensures easy and smooth tilt adjustment as well as stable operation.

Main Features:

• 15 dBi sector gain
• Special weatherproof outdoor housing
• Highest protection class IP 66
• High-quality construction
• Low side lobes
• Vertical polarization
• Robust mounting elements
• Easy alignment
• Designed for operation in any weather

Applications:

• 2.4 GHz band Wireless LAN
• IEEE 802.11b/g WLAN systems
• Point-to-point applications

Electrical Properties:

• Frequency: 2.4 – 2.5 GHz
• Gain: 15 dBi
• Polarization: vertical
• Horizontal beamwidth: 90° (-3 dB), 120° (-6 dB)
• Vertical beamwidth: 12°
• VSWR:
• Impedance: 50 Ohm
• Front-to-back ratio: > 35 dB

Mechanical Properties:

• Technology: Microstrip
• Antenna connector: N socket
• Dimensions: 580 x 125 x 50 mm
• Weight: 1.5 kg
• Radome material: UV resistant
• Color: white
• Construction: All-weather operation.
