IT ELITE SEC50016DP - 5 GHz, 2x 16 dBi 90° Sector Antenna

The sector antenna operates in the 5 GHz band with 2x 16 dBi gain and dual polarization for MIMO applications.

Due to its reduced side lobes, the antenna provides a clear, strong signal even in heavily frequented areas. The antenna is resistant to interference from other networks. An increase in data throughput or a change of channel does not disrupt the connection.

Perfectly suited for use in challenging weather conditions. The material is corrosion-resistant and can also be used in saltwater environments.

The professional mounting system with a scale of 0 to 15 degrees ensures easy and smooth tilting as well as stable operation.

Features:

• Special weatherproof housing
• Highest protection class IP 66
• High-quality construction
• Reduced side lobes
• Robust mounting elements
• Easy alignment and attachment
• Designed for use in any weather

Applications:

• 5 GHz band Wireless LAN
• MIMO standard
• IEEE 802.11n WLAN systems
• Point-to-Multipoint applications

Electrical Properties:

• Frequency: 5.1 - 5.9 GHz
• Gain: 2x 16 dBi
• Polarization: Dual
• Beamwidth horizontal: 90° (-3 dB), 120° (-6 dB)
• Beamwidth vertical: 6°
• VSWR:
• Impedance: 50 Ohm
• Front-to-back ratio: >35 dB
• Port isolation: >35 dB

Housing Properties:

• Technology: Microstrip
• Material: UV-resistant
• Color: White
• Protection class (EN 60529): IP 66
• Minimum temperature: -40°C
• Maximum temperature: 120°C

Mechanical Properties:

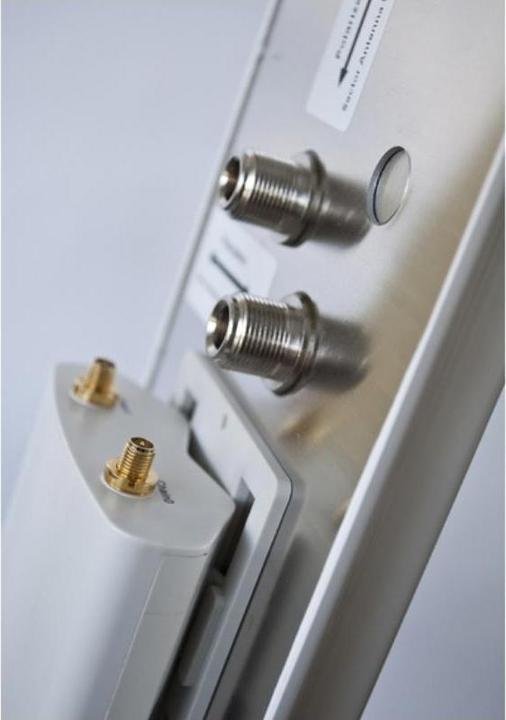

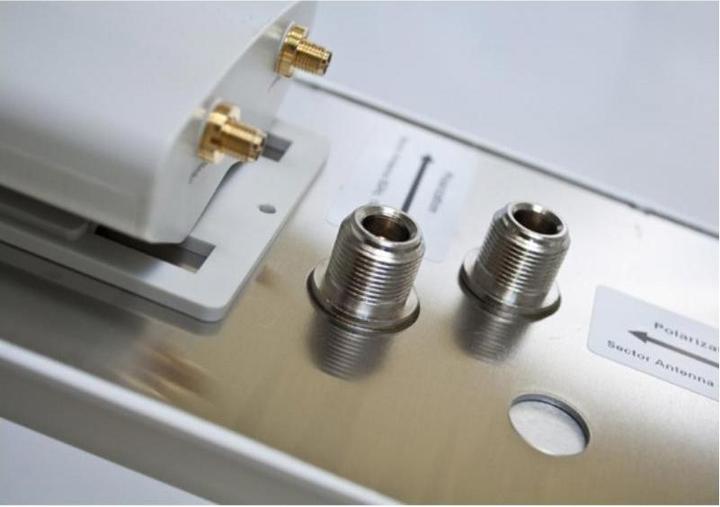

• Input connector: N-socket
• Wind load:
• External dimensions: 580 x 125 x 50 mm
• Weight: 1.5 kg.
