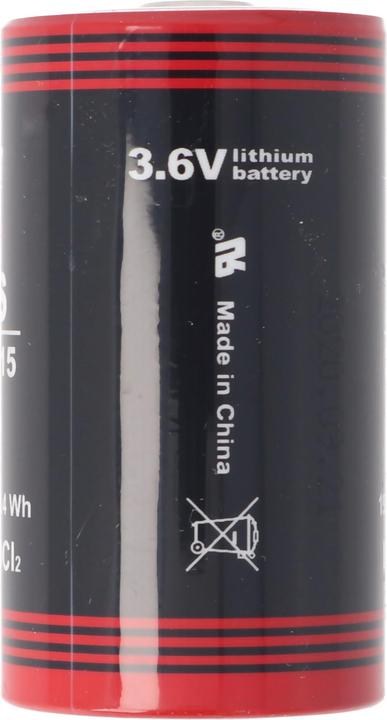

The ER34615 lithium battery D mono size with 3.6 volts and 19000mAh capacity. With extra wide positive terminal (similar to the EVE 34615) with a diameter of up to 11.5 mm. Also suitable as a replacement battery for the EVE ER34615, Emmerich ER 34615 special battery mono (D) lithium 3.6V 19000 mAh and all identical batteries.

The lithium ER34615 D-size standard battery has a length of 61.5 mm and a diameter of 34 mm with a weight of only 115 grammes. It can be stored for up to 10 years and is a disposable lithium battery that cannot be recharged. The standard discharge current is 2.0 mA, the maximum recommended discharge current is 500 mA.

It is characterised by a high operating voltage and guarantees the greatest possible stability. It also stands out due to its wide temperature range of up to -55 °C to +85 °C. Under optimum conditions, it can provide a service life of over 10 years. The self-discharge rate is approx. 1 %.

Its internal structure makes it ideal for almost all applications with low or very low discharge currents, such as remote controls, CMOS memory backup, measuring devices, PC real-time clocks, medical devices, gas measuring devices, alarm sensors and other electronic devices with low loads.

Technical data:
Model: ER 34615 D Size
IEC: ER34615 Lithium
System: Lithium Thionyl Chloride
Battery: Disposable
Voltage: 3.6 Volt
Capacity: 19000 mAh
Dimensions: 61.5 x 34 mm
Cell size: D Mono LR20
Weight: 115 grammes
Standard discharge current: 2 mA
Capacity: 19.0 Ah (at 2.0 mA discharge current up to 2.0 V cut-off, +23 °C)
ISO9001 certified, UL certified MH20555
Maximum recommended current under continuous discharge: 230 mA.
