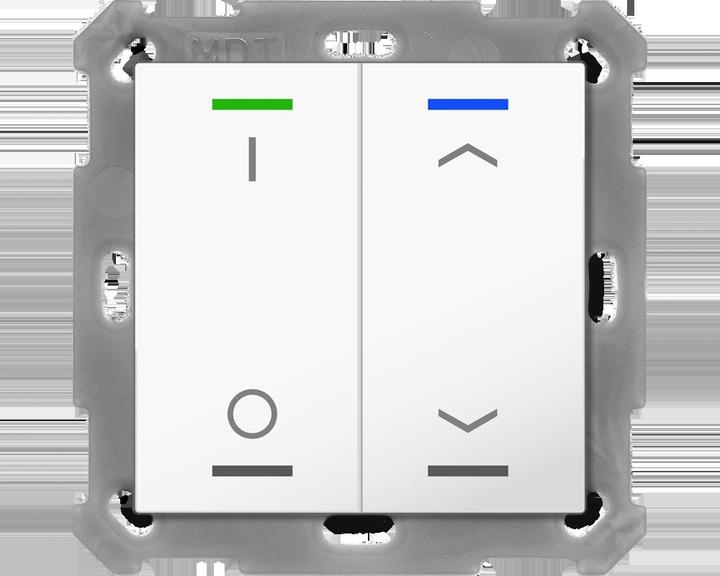

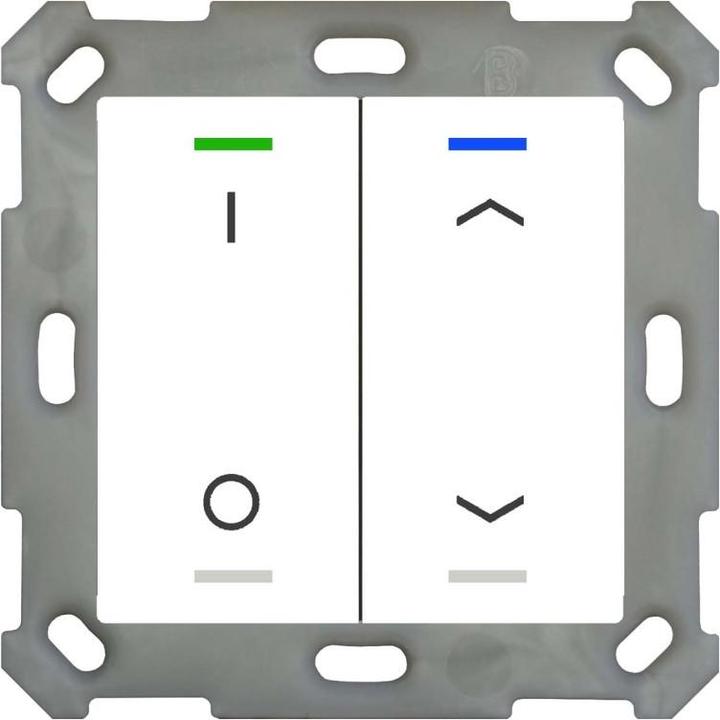

MDT technologies Taster Light 55 2-fold BE-TAL5502.D1

Manufacturer: MDT technologies
Designation: Taster Light 55 2-fold RGBW, pure white glossy
Type: BE-TAL5502.D1
KNX Bus System: yes
KNX Wireless Bus System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Wireless: no
Mounting Type: Flush-mounted
With Theft/Dismantling Protection: no
With Bus Coupling: yes
Number of Activation Points: 4
Number of Buttons: 2
Power Consumption: 0.3 W
With LED Display: yes
With Labeling Field: no
With Display: no
Material: Plastic
Material Quality: Thermoplastic
Surface Protection: other
Surface Finish: glossy
Color: white
RAL Number (similar): 9010
Transparent: no
With Room Thermostat: no
With Infrared Sensor: no
Protection Class (IP): IP20
Min. Depth of Device Box: 35 mm

MDT technologies Taster Light 55 2-fold BE-TAL5502.D1: additional details
KNX Taster Light 55 2-fold, RGBW, pure white glossy, Switching/Shutter.
Design I/O and Up/Down symbol with 2 button pairs / 4 button surfaces.
Compatible with 55 mm switch programs such as MDT Series 55 or GIRA Standard 55, E2, E22, Event, or BERKER S1, B3, B7 or JUNG A 500, A PLUS, A CREATION, AS 500, A 550, A FLOW or MERTEN 1M, M-Smart, M-Plan, M-Pure.
The buttons can be freely configured as pairs or individual buttons.
Single and double button operation for switching, dimming, shutter, values.
Switching between up to four values or scenes.
Short/Long button press with 2 objects.
Innovative group control with long/extra long button press.
Multi-tap function sends up to 4 values to the same or different objects.
Two RGBW status LEDs per button pair.
LED brightness can be controlled via day/night or brightness object.
4 logic blocks.
Installation in switch box with included mounting ring.
Integrated bus coupler.
