MDT Technologies Taster Light 55 1-gang BE-TAL55T1.01

Manufacturer: MDT Technologies
Designation: Taster Light 55 1-gang RGBW, pure white glossy, neutral
Type: BE-TAL55T1.01
KNX Bus System: Yes
KNX Wireless Bus System: No
Wireless Bus System: No
LON Bus System: No
Powernet Bus System: No
Other Bus Systems: None
Bidirectional Wireless: No
Mounting Type: Flush-mounted
With Theft/Dismantling Protection: No
With Bus Coupling: Yes
Number of Activation Points: 2
Number of Buttons: 1
Power Consumption: 0.3 W
With LED Indicator: Yes
With Labeling Field: No
With Display: No
Material: Plastic
Material Quality: Thermoplastic
Surface Protection: Other
Surface Finish: Glossy
Color: White
RAL Number (similar): 9010
Transparent: No
With Room Thermostat: No
With Infrared Sensor: No
Protection Class (IP): IP20
Min. Depth of Device Box: 35 mm

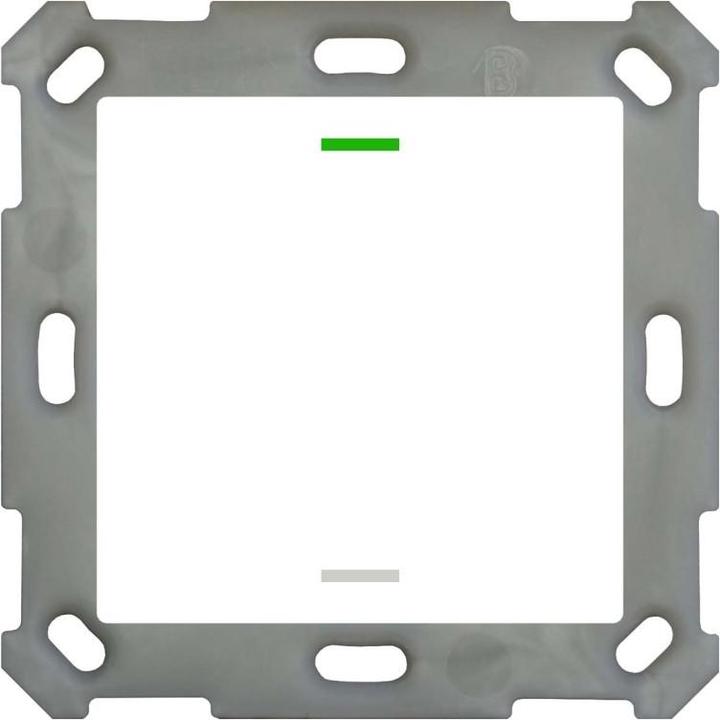

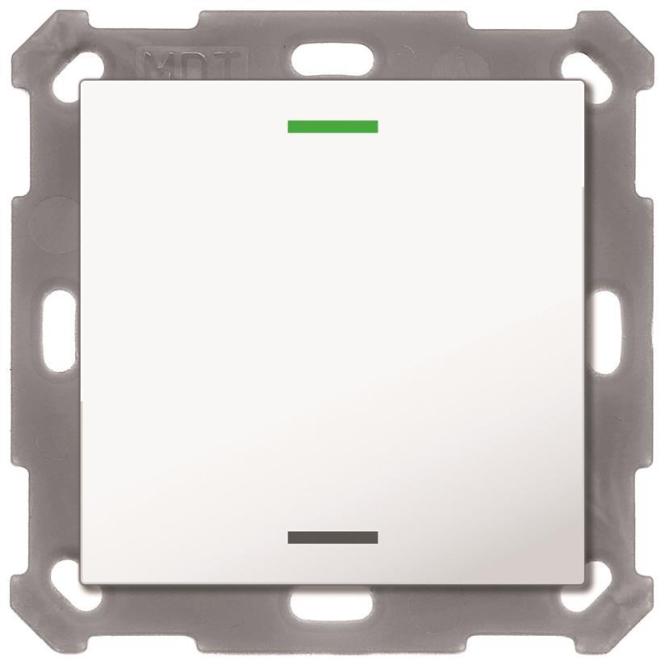

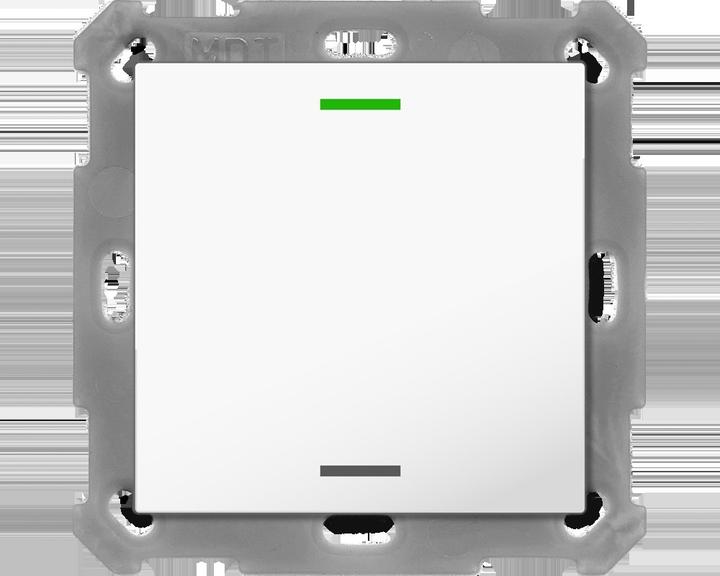

The MDT Technologies Taster Light 55 1-gang BE-TAL55T1.01 is a KNX switch with RGBW and temperature sensor in pure white glossy finish. It features a button pair with two button surfaces and is compatible with 55 mm switch programs, such as MDT Range 55 or GIRA Standard 55, E2, E22, Event, as well as BERKER S1, B3, B7 or JUNG A 500, A PLUS, A CREATION, AS 500, A 550, A FLOW or MERTEN 1M, M-Smart, M-Plan, M-Pure.

The buttons can be freely configured as a button pair or single buttons. There are single and double button operations for switching, dimming, blinds, and values. The switch can toggle up to four values or scenes. Short and long button presses allow control of two objects. Innovative group control is achieved through long or extra-long button presses. The multi-tap function sends up to four values to the same or different objects.

Two RGBW status LEDs per button pair are available, and the LED brightness can be controlled via day/night or brightness objects. The switch offers four logic blocks and is installed in a switch box using the included mounting ring. An integrated bus coupler is also included.
