MikroTik L23UGSR-5HAXD2HAXD-NM -

2400 Mbit/s
Price in EUR including VAT
Delivered the day after tomorrow
Only 1 piece in stock
free shipping

Product details

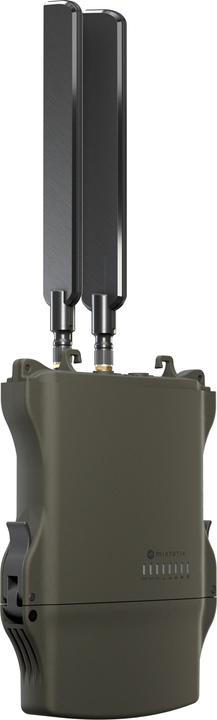

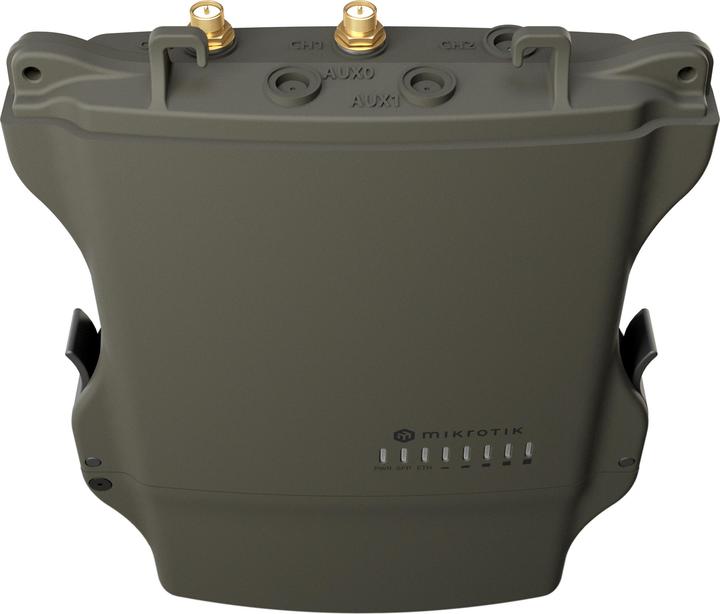

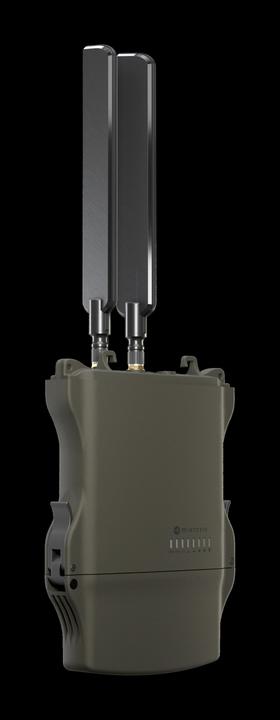

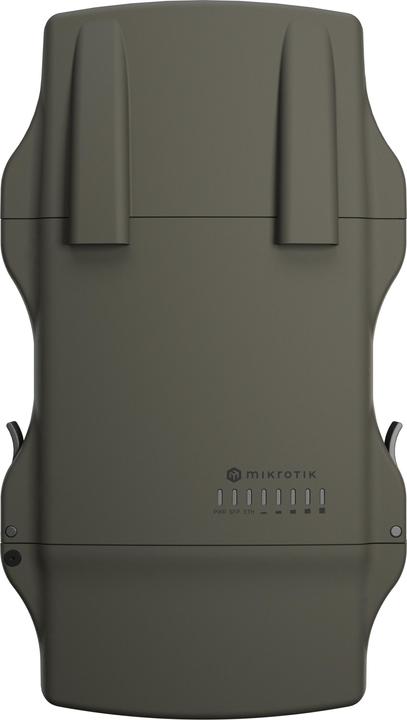

NetMetal ax
The Mars Rover of networking technology. Our most robust outdoor access point with long range - now with Wi-Fi 6!

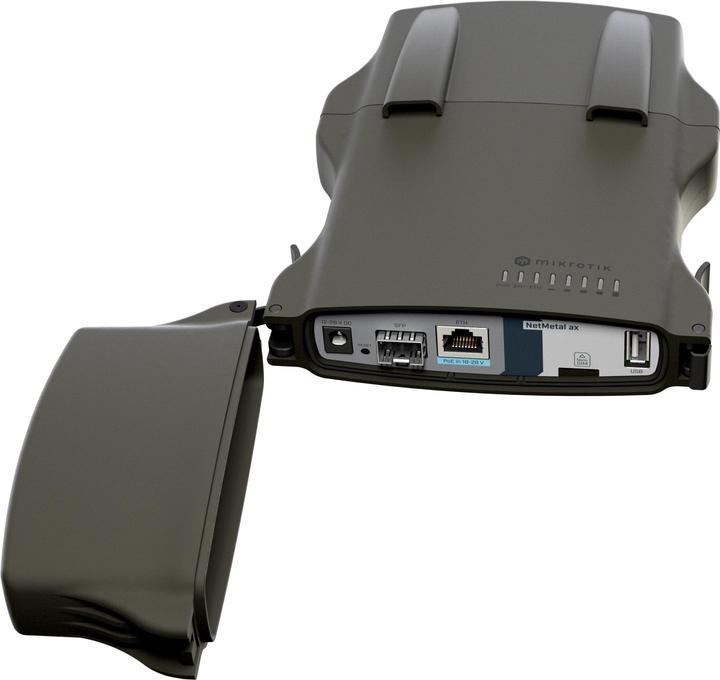

Meet one of your most versatile companions: the NetMetal ax - a powerful outdoor access point with extensive range that thrives in any environment. It is designed for exceptional durability and can be easily installed almost anywhere - you can open and close the housing with one hand. The IP66 rating protects the device from dust and heavy water jets - whether on damp attics, in elevator shafts, busy docks, or coastal towers. No terrain is too harsh for the NetMetal ax - the Mars Rover of networking technology!

It features a modern dual-core ARM CPU, Gigabit Ethernet, and 2.5-Gigabit SFP for fiber connections, a USB port, and a free miniPCIe slot for further customization. For example, you could add an LTE modem for mobile internet backup - we have included a NanoSIM slot in the NetMetal! But there are also other options, such as adding a gateway for LoRa IoT setups, like our R11e-LR8!

A powerful dual-band, dual-chain Wi-Fi 6 radio provides increased speed, stability, security, roaming, energy management, and other features compared to previous wireless protocols. Two RP-SMA connectors allow you to connect an antenna of your choice for distances of up to 30 kilometers. If needed, you can customize the NetMetal ax with antennas like our screw-on omnidirectional antenna HGO-antenna-OUT for shorter ranges. It offers 3.3 dBi gain for the 2.4 GHz band and 5.5-7.1 dBi gain for the 5 GHz band.

If you've read this far, there's a little bonus feature: we've kept the good old buzzer for various alarms or creative outputs.

Key specifications

Wi-Fi standard
Wi-Fi 6 / 802.11ax
Wi-Fi frequency band
Dual band
PoE Standard
Passive 24V PoE-in
Area of application
Outdoor
Number of RJ45/LAN ports
1
Max. port speed
1000 Mbit/s
Item number
45989486

General information

Manufacturer
MikroTik
Category
Access points
Manufacturer no.
L23UGSR-5HAXD2HAXD-NM
Release date
21.5.2024

Access point properties

Long range coverage
30 km
Number of RJ45/LAN ports
1
Max. port speed
1000 Mbit/s
Protection type (IP code)
IP66
Access Point Functions
PoE capable

Wi-Fi standard

Wi-Fi standard
Wi-Fi 6 / 802.11ax
5 GHz transfer rate
2400 Mbit/s
2.4 GHz transfer rate
574 Mbit/s
Wi-Fi frequency band
Dual band

Application range

Area of application
Outdoor
Installation place
Wall

Power supply

Power supply
Electrical connection
PoE Standard
Passive 24V PoE-in
Power consumption
25 W

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery

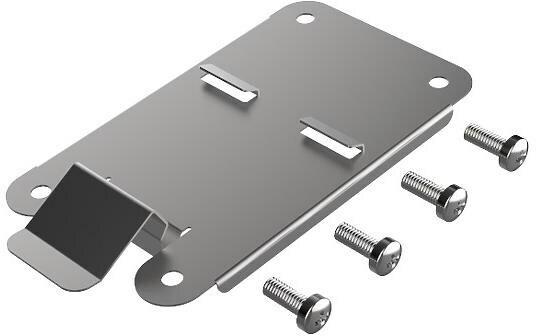

DIN rail mounting setMetal ringPoE injector

Product dimensions

Length
4.80 cm
Width
14.30 cm
Height
24.70 cm

Package dimensions

Length
36.70 cm
Width
15.50 cm
Height
6.20 cm
Weight
1.19 kg

14-day cancellation right
30-day right of return
24 Months statutory warranty
