MikroTik RB1100AHx4 - Dude Edition RouterBoard 1100Dx4 with AL21400 Cortex A15 CPU

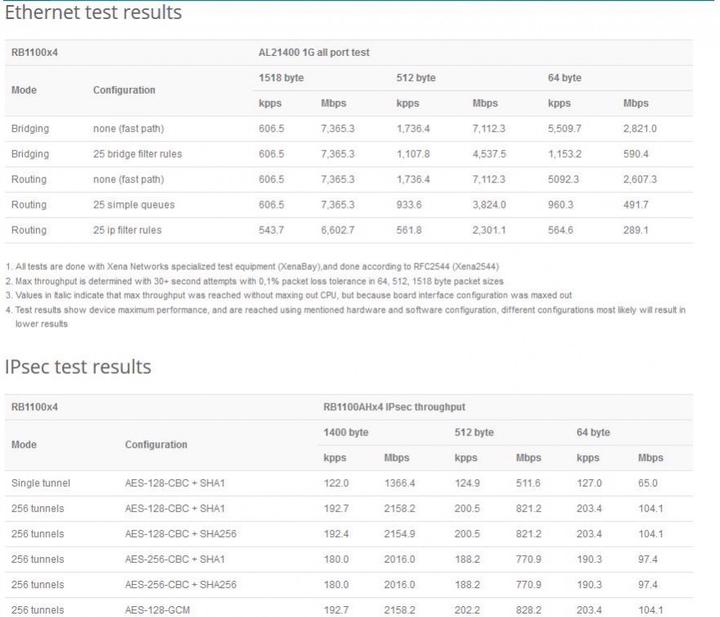

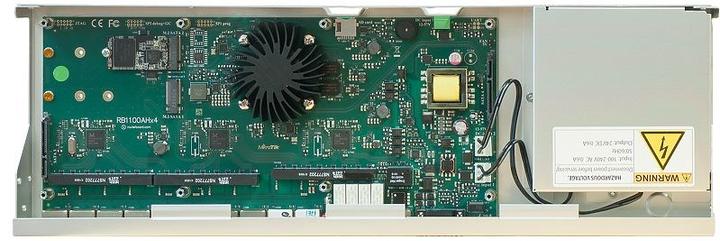

The new RB1100AHx4 Dude Edition features a new quad-core Cortex A15 chip from Annapurna Labs, a company owned by Amazon. The chip is clocked at 1.4 GHz for a maximum throughput of up to 7.5 Gbps.

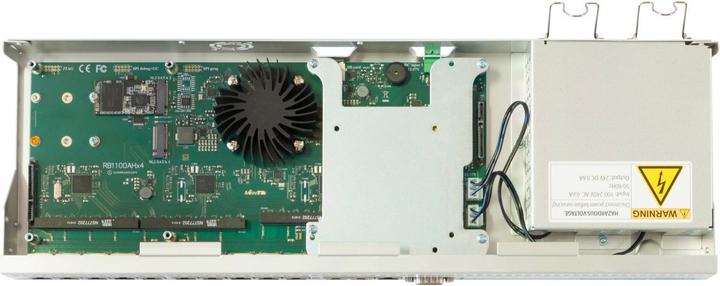

The device includes multiple high-speed storage interfaces (two SATA and two M.2) for use with a Dude database, a proxy cache, or other storage-intensive functions. It comes with a 60 GB M.2 drive and is pre-installed with the Dude package, making it ready to use right out of the box.

The RB1100AHx4 Dude Edition supports IPsec hardware acceleration and is faster than any previous RouterBOARD device.

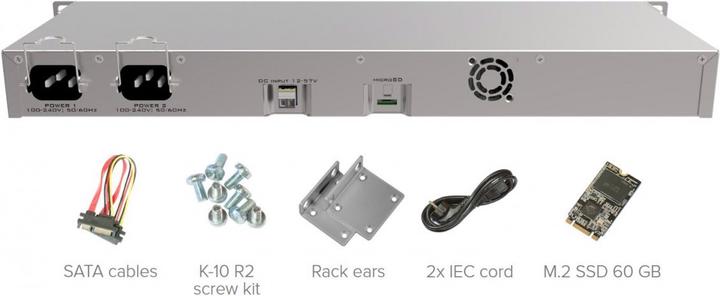

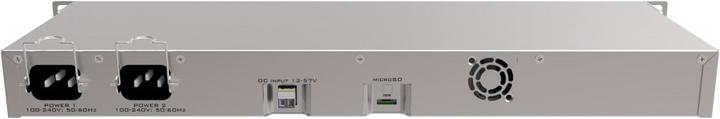

It features two IEC failover power connectors, supports passive or 802.3at/af PoE input, and includes a DC telecom power connector for -48 V DC power supply. It utilizes passive cooling and operates completely silently.

Product Code: RB1100AHx4 Dude Edition
CPU: AL21400, 4 cores, 1.4 GHz
RAM Size: 1 GB
Storage Type: NAND

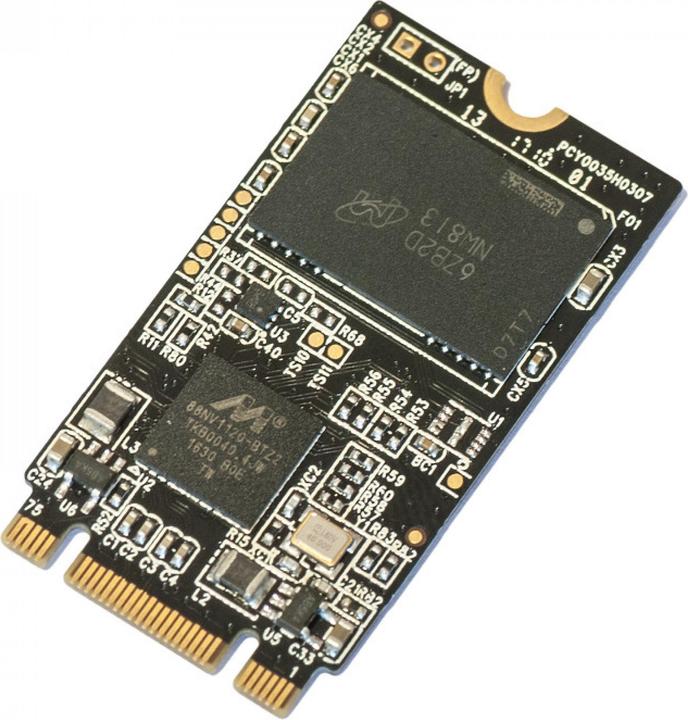

Storage Size: 128 MB + 60 GB m.2 SATA 3 drive included

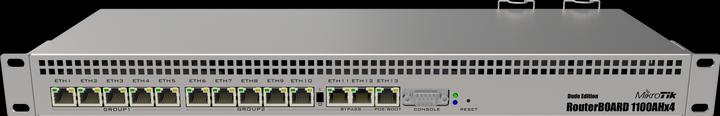

10/100/1000 Ethernet Ports: 13
Ethernet Bypass: Ethernet 11/12

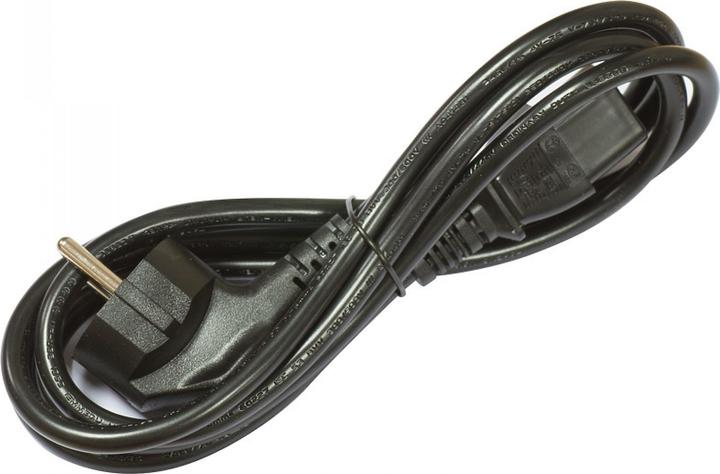

Power Connector: 2x IEC, 100 - 240 V
DC Telecom Power: 20 - 57 V (-48 V supported)
PoE Input: Passive, 802.3at, 20 - 57 V
Redundant Power Supply: Yes
Voltage Monitoring: Yes
PCB Temperature Monitoring: Yes
Dimensions: 444 x 148 x 47 mm
Operating System: RouterOS, Level 6 License
Max Power Consumption: 25 W
microSD: 1

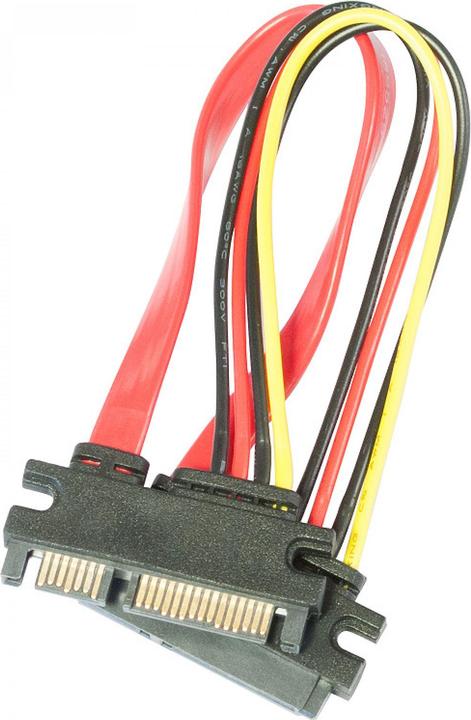

SATA: 2x 2.5 inch SATA 3
M.2 Slots: 2x SATA 3 compatible (supports 2242, 2260, and 2280 sizes, M-key)
Serial Port: RS232
Buzzer: Yes.
