Main Features
Design
Form Factor: Full Tower
Type: PC
Product Color: Black
Supported Motherboards
Form Factors: ATX, EATX, micro ATX, Mini-ITX, SSI EEB
Number of 3.5" Expansion Slots: 12
Material: Steel
Number of 2.5" Expansion Slots: 11
Number of Expansion Slots: 8
Suitable for Gaming: Yes
Anti-Dust Filter: Yes
Improved Cable Management: Yes
Reset Button: Yes
Power Button: Yes
Maximum Dimensions
Max CPU Cooler Height: 19.5 cm
Max Graphics Card Length: 50.3 cm
Max PSU Length: 33 cm
Power Supply
Power Supply Placement: Bottom
Number of Power Supply Units: 1
Supported Power Supply Form Factors: ATX, MicroATX, mini ITX
Connections and Interfaces
USB 3.2 Gen 1 (3.1 Gen 1)
Number of Type A Ports: 4
USB 3.2 Gen 2 (3.1 Gen 2)
Number of Type C Ports: 1
Audio Ports: Yes
Audio Output: Yes
Cooling
Number of Supported Front Fans (max.): 4
Diameter of Supported Front Fans: 120, 140 mm
Number of Supported Side Fans (max.): 4
Diameter of Supported Side Fans: 120 mm
Number of Supported Rear Fans (max.): 1
Diameter of Supported Rear Fans: 120, 140 mm
Number of Supported Top Fans (max.): 3
Supported Fan Diameter (top): 120, 140 mm
Number of Supported Bottom Fans (max.): 3
Diameter of Supported Bottom Fans: 120, 140 mm
Supported Radiator Sizes Front: 420, 480 mm
Supported Side Radiator Sizes: 480 mm
Supported Radiator Sizes Rear: 120, 140 mm
Supported Radiator Sizes Top: 360 mm
Supported Bottom Cooler Size: 360 mm
Storage Medium
Supported Hard Disk Drive Sizes: 3.5"
SSD Form Factor: 2.5"
Included Accessories
User Manual: Yes
Weight and Dimensions
Width: 240 mm
Depth: 560 mm
Height: 580 mm
Weight: 12 kg
Packaging Data
Packaging Width: 330 mm
Packaging Depth: 650 mm
Packaging Height: 665 mm
Package Weight: 14 kg.
PC case design | Full tower |
Number of 3.5" drive slots (internal) | 12 x |
Max. length graphics card | 503 mm |

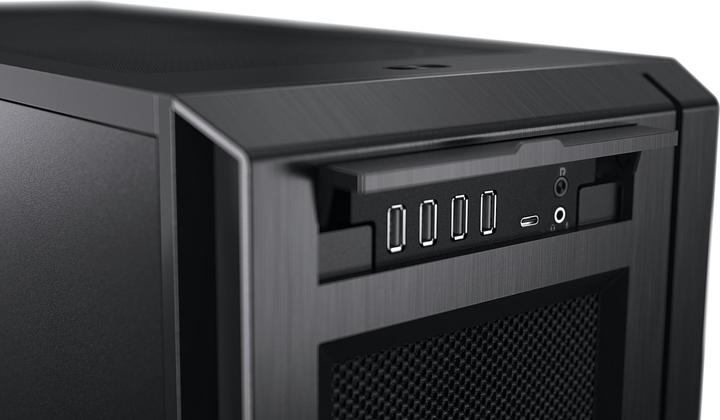

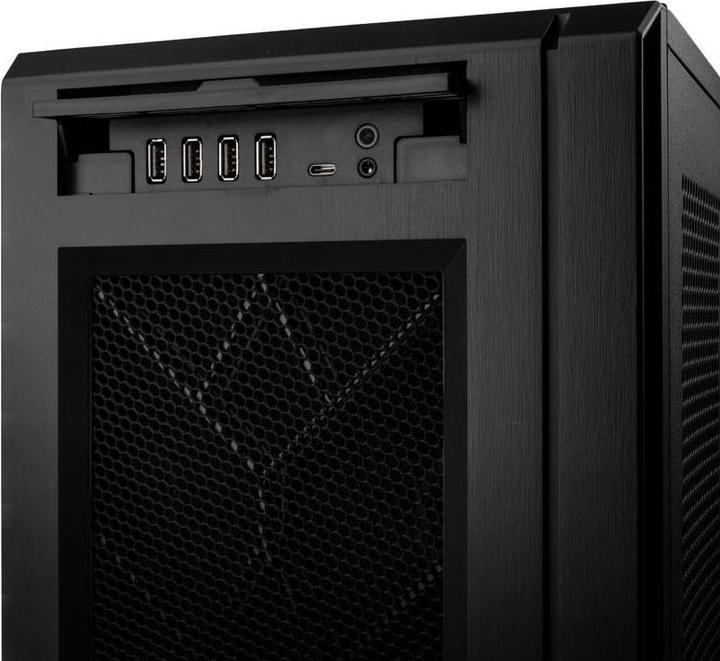

Front connectors | Headphones, Microphone, Power button, USB 3.0 |
Max. height CPU cooler | 195 mm |
Item number | 13477937 |
Manufacturer | Phanteks |
Category | PC case |
Manufacturer no. | PH-ES620PC_BK01 |
Release date | 24.7.2020 |
Sales rank in Category PC case | 318 of 2826 |
External links |
Colour | Black |
Exact colour description | Black |
Material group | Metal |
Material | Aluminium, Glass, Plastic, Steel, Toughened glass |
PC case design | Full tower |
Form factor | ATX, E-ATX, Micro ATX (mATX), Mini-ITX, SSI EEB |
Number of 3.5" drive slots (external) | 12 x |
Number of 3.5" drive slots (internal) | 12 x |
"Number of 2.5"" drive slots" | 11 x |
Number of expansion card slots | 8 x |
Max. length graphics card | 503 mm |
Max. height CPU cooler | 195 mm |
Max length of power supply | 330 mm |
Front connectors | Headphones, Microphone, Power button, USB 3.0 |
Number of fans | 15 x |
Number of fan slots | 15 x |
Fan location | Bottom side |
Number of radiator mounts | 3 |
Radiator locations | Aspect |
Cooling properties | Water cooling possible |
Fan mount locations | 1x 120mm, 1x 140mm |
Fan mount locations | 1x 120mm, 1x 140mm |
Fan mount locations | 1x 120mm, 1x 140mm |
Fan mount locations | 1x 140mm |
Radiator mount locations | 2x max. 480mm |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Cable management |
Height | 58 cm |
Length | 56 cm |
Width | 24 cm |
Weight | 13 kg |
Length | 67 cm |
Width | 33 cm |
Height | 66 cm |
Weight | 15.07 kg |
Product Safety |
How often does a product of this brand in the «PC case» category have a defect within the first 24 months?
Source: GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: GalaxusHow often is a product of this brand in the «PC case» category returned?
Source: Galaxus

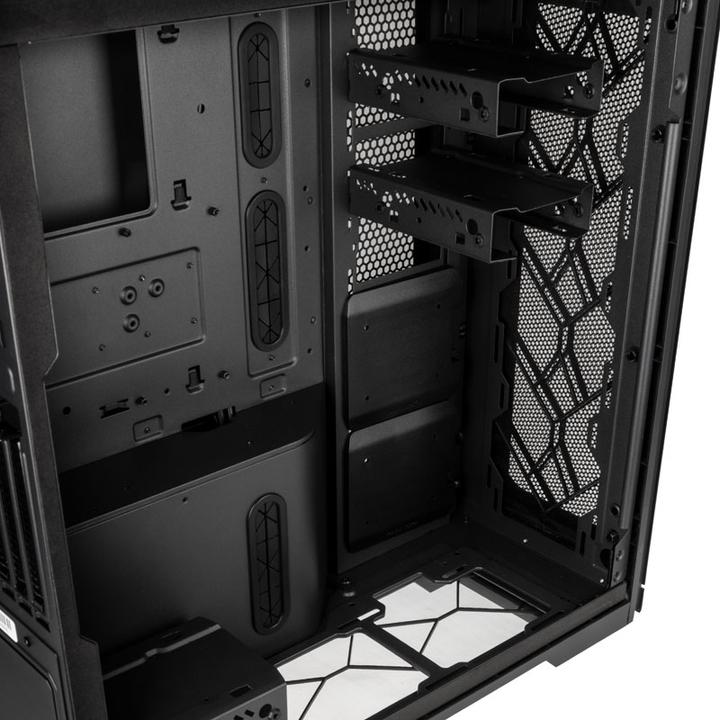

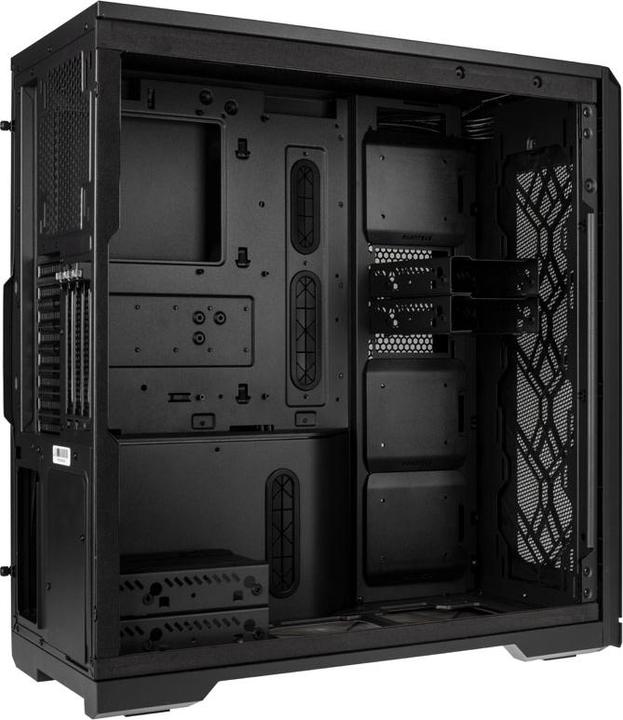

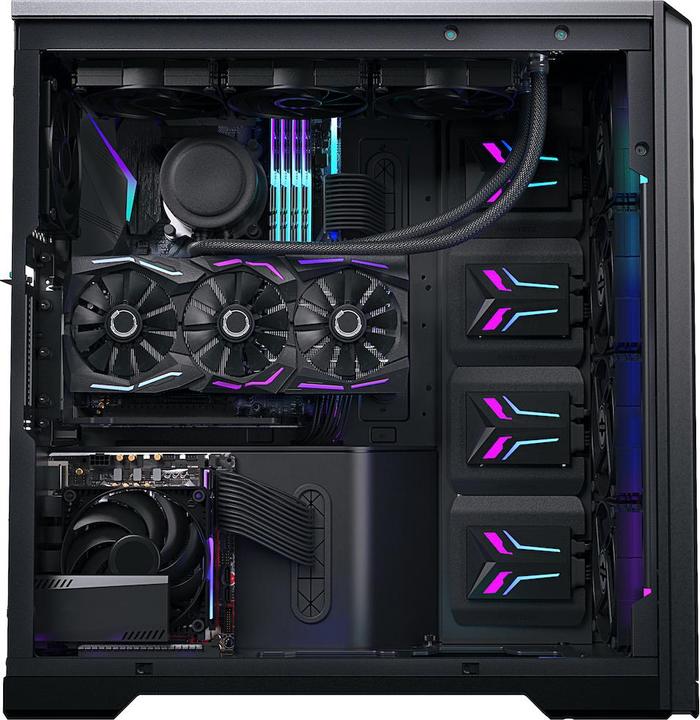

... The highlight, however, is the mounting space for a mini-ITX second system, i.e. a PC within a PC, with the installation cover included. With the PCIe extension (not included), you can also install a thick graphics card. There are also four stackable HDD cages for 3.5-inch hard disks...
