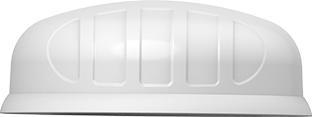

The new PUCK series from Poynting offers a low-profile antenna designed for use in the IoT/M2M, smart metering, smart utilities, transportation, maritime, and agriculture markets. The PUCK-2 consists of a 2-in-1 antenna system housed in a single enclosure and features 2x2 MIMO 5G/LTE antennas that provide broadband coverage from 617 to 6000 MHz, covering current LTE/4G and 5G bands for future-proof implementation. The ultra-wideband performance of the mobile antennas allows for use across various operators and technologies and is ready for future mobile technologies up to 6 GHz for 5G applications. The PUCK outperforms many competitors due to the careful design of this high-performance antenna. The radiation patterns of all radiating elements offer an excellent balance between omnidirectional characteristics, pattern diversity, and good radiation properties at the desired height, which is often overlooked in such a small antenna. Despite its compact size, this antenna delivers outstanding performance, especially in the higher frequency bands where performance is crucial for 5G and LTE throughput and connection stability. This antenna is designed to connect both 5G/LTE ports to the router to ensure optimal performance. Please consider other derivatives of the PUCK series that may be better suited for SISO applications.

Highlights

• 2-in-1 5G high-performance multi-frequency antenna
• Antenna supports Private 5G/5G/4G/3G/2G/Wi-Fi/LoRa/Bluetooth
• 5G (2x2 MIMO)
• Ultra-wideband coverage from 617 - 6000 MHz for mobile networks
• Robust, vandal-resistant, and waterproof (IP 69K)
• Ideal for transportation, maritime, and IoT/M2M applications
• Ultra-versatile mounting options for easy installation

Delivery includes

• Antenna (2m cable permanently installed)
• Mounting kit.
