Poynting A-OMNI-0510-V1-02 - Omnidirectional Wideband Ultra Low Profile Antenna

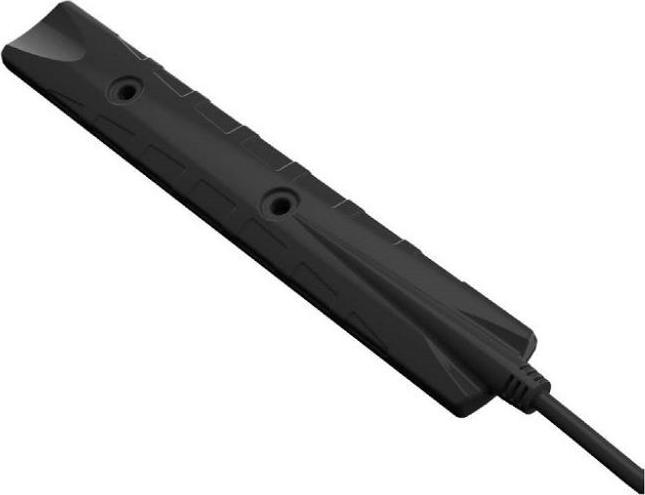

The OMNI-510-01 antenna is purposefully designed for ultra-low profile requirements such as smart meters. This omni-directional antenna is suitable for indoor and outdoor use, typically mounted on the top or side of smart meter boxes. The OMNI-510-01 antenna is designed with installation simplicity in mind while covering the LTE frequency bands 698 – 2700 MHz.

Features:

• Omni-directional antenna
• Wideband - covers a wide frequency band
• Easy installation, double-sided tape or screw-on
• Stylish, but robust design
• Weather resistant

M2M and IoT Application Areas:

• Smart utilities: Smart power metering, gas and water metering
• Smart buildings: Climate control, access control, security, irrigation
• Digital signage
• Smart environmental and water systems
• Warehouses and logistic systems
• Industrial factory automation and M2M systems
• Farming and agricultural M2M and IoT

Can be used with the following IoT technologies:

• Zigbee
• Z-Wave
• LoRaWAN
• Sigfox
• Wi-Fi
• Wi-Fi HaLow
• Cellular Bands (LTE/3G/2G), including LTE-M/NB-IoT
• Bluetooth

Electrical Specifications:

• Frequency band 1: 698 - 960 MHz
• Frequency band 2: 1710 - 2700 MHz
• Gain (max.): 2 dBi
• VSWR: Feed power handling: 10 W
• Input impedance: 50 Ohm (nominal)
• Polarisation: Linear horizontal / vertical (installation dependent)
• Cable loss: 0.45 dB/m at 900 MHz; 0.71 dB/m at 2000 MHz; 0.79 dB/m at 2500 MHz; 0.9 dB/m at 3000 MHz
• Cable: RTK-031 SMS-plug
• Cable length: 1 m

Mechanical Specifications:

• Product dimensions (L x W x D): 138 x 26 x 10 mm
• Packaging material: Poly bag
• Radome material: TPE (Thermoplastic Elastomer)
• Radome colour: Pantone Black or Cool Gray 1C (TBC)
• Mounting: Adhesive backing or screw mount

Environmental Specifications:

• Wind survival: 160 km/h
• Temperature range (operating): -40°C to +75°C
• Environmental conditions: IP68 (excluding connector)
• Operating relative humidity: Up to 98%
• Storage humidity: 5% to 95%.
