Highest picture and sound quality with the Primewire Premium HD TV satellite cable.

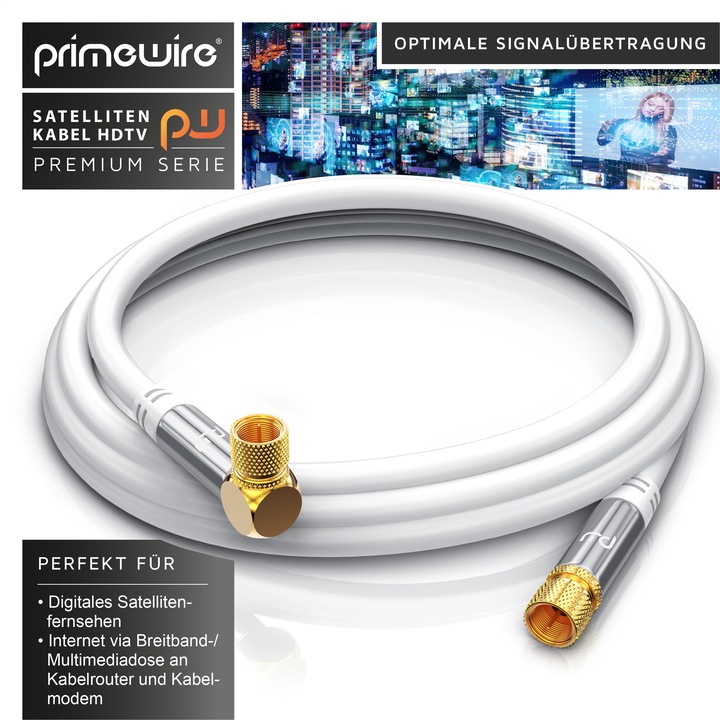

The Primewire SAT cable establishes a reliable connection between the multimedia socket and reception devices such as televisions, SAT receivers, cable modems, or cable routers. The 90° angled plug enables space-saving installation in tight spaces, making it useful behind flat wall brackets or TV furniture that are often positioned close to the wall.

Product features:

• Primewire HDTV satellite cable / Premium SAT cable (optimized model with improved quality due to better signal properties, accuracy of fit, and durability)

• Transmission of analogue and digital signals as well as DVB-T2 HD, DVB-S, DVB-S2, DVB-C, and cable internet

• Gold-plated precision connectors (precise fit, easy to remove, and corrosion-resistant)

• Robust PVC jacket for maximum flexibility

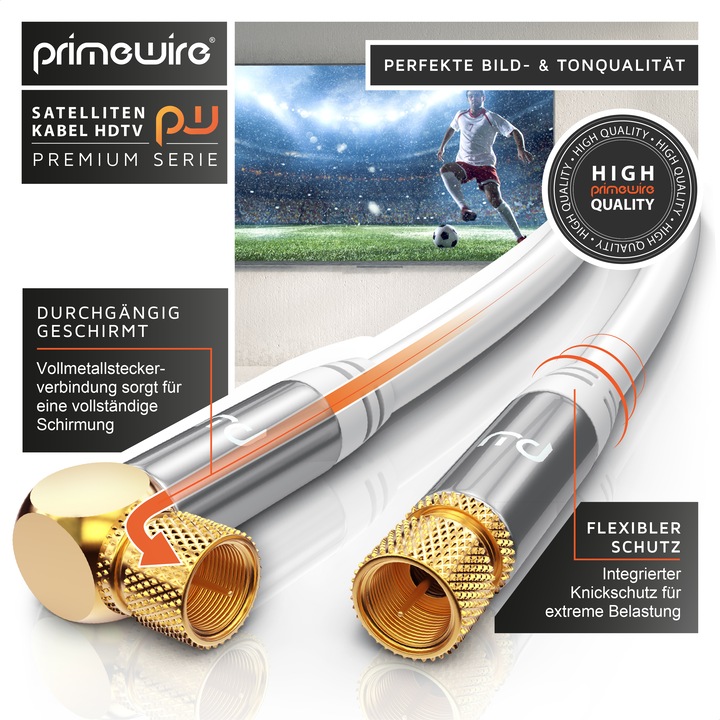

• High-quality full metal plug connection (gold-plated) with improved hardness

• Flexible PVC bend protection (protects against exceeding the maximum bending radius and wear at the transition to the plug, even in tight spaces)

Technical data:

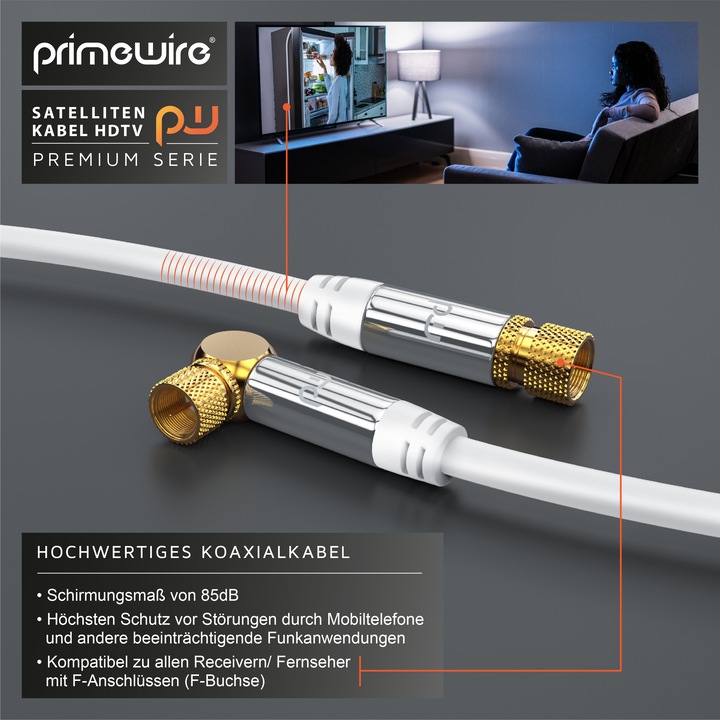

• Connection: straight plug (male) / F-angle plug 90° (male) / Construction: coaxial

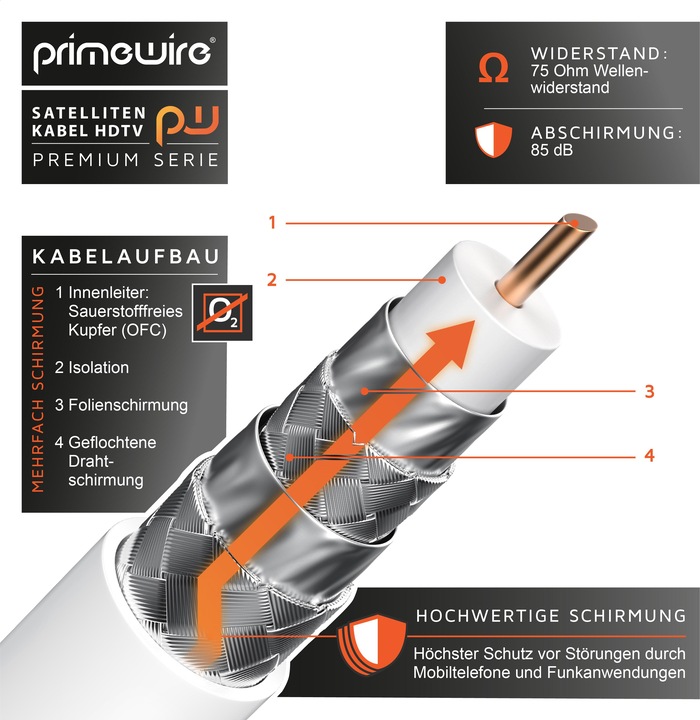

• Characteristic impedance: 75 Ohm / outer diameter: 7.4mm / cable sheath thickness: 0.9mm / dielectric: 5mm Ø

• Inner conductor: 1mm Ø (oxygen-free copper) for high purity

• High-density 4-fold shielding / continuously shielded connection transition and plug.
