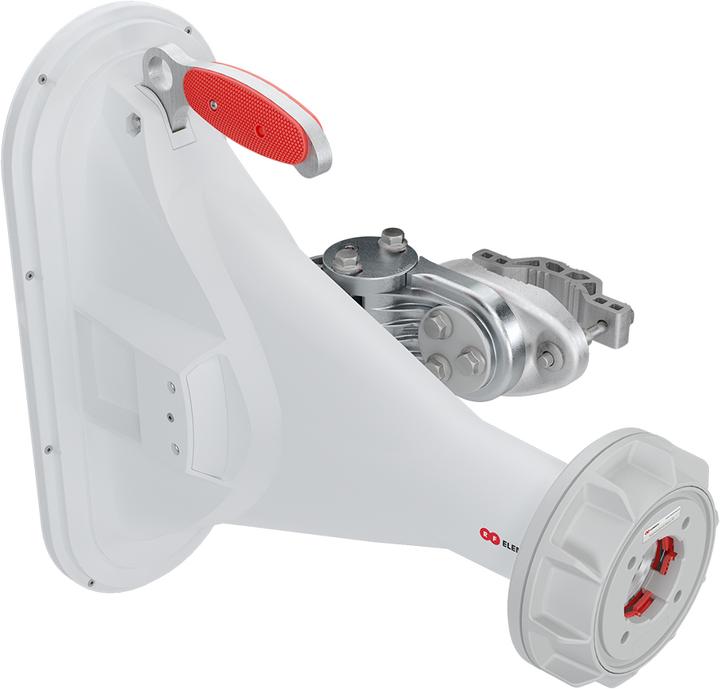

RF Elements HG3-TP-A90 - Asymmetric Horn TP Antenna

The asymmetric horn TP antenna combines the best of both worlds - high gain of a conventional sector antenna and zero side lobes of a horn antenna. The radiation pattern is broad in the azimuth and narrow in the elevation plane, significantly improving coverage planning options.

The asymmetric horn TP antenna outperforms traditional patch sector antennas thanks to the high stability of the gain factor and radiation pattern across the entire operating range. Its excellent noise suppression and precision of the radiation pattern make the asymmetric horn TP antenna ideal for high-density AP clusters in sparsely populated areas and densely populated locations.

The asymmetric horn TP antenna is equipped with the revolutionary TwistPort connector - a patented twist-and-lock waveguide port. TwistPort is virtually lossless and represents a complete paradigm shift in terms of wireless network scalability and deployment convenience.

The asymmetric horn TP antenna supports a wide range of mainstream third-party radios with the TPA TwistPort adapter.

Technical Specifications

• Antenna connection: TwistPort - quick-release waveguide port
• Antenna type: Horn
• Materials: UV-resistant ABS plastic, polycarbonate, HDPE, aluminum, stainless steel
• Protection class: IP55
• Mast mounting diameter: 22-80 mm
• Temperature: -35°C to +55°C
• Wind resistance: 160 km/h
• Mechanical tilt: +/-25°
• Weight: 6.5 kg

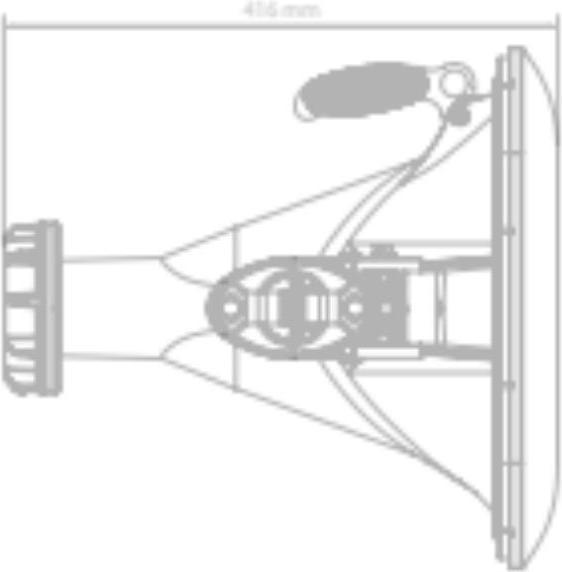

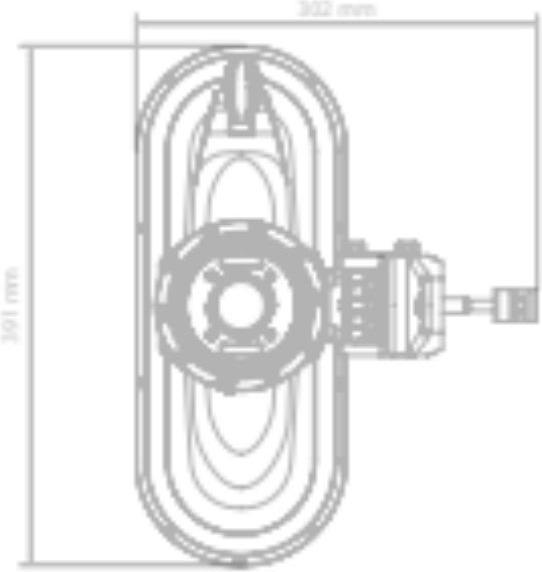

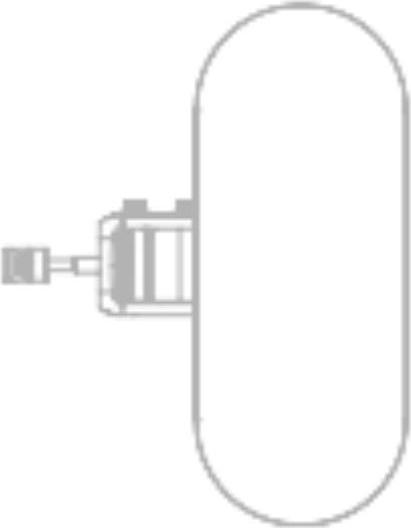

• Dimensions: 41.2 x 40.0 x 40.0 cm
• Frequency range: 5180 - 6000 MHz
• Gain: 16 dBi
• Azimuth beamwidth -3 dB: H 60°/V 60°
• Elevation beamwidth -3 dB: H 16°/V 16°
• Azimuth beamwidth -6 dB: H 90°/V 90°
• Elevation beamwidth -6 dB: H 25°/V 25°
• Front-to-back ratio: 30 dB.
