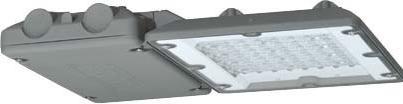

Schuch Licht LED Ex high bay spotlight nD8301 L160 H50 Manufacturer: Schuch Licht Designation: LED Ex high bay spotlight 4000K Type: nD8301 L160 H50 Mounting type: other Adjustable: no Light source: LED not replaceable With light source: yes Housing material: aluminium Cover material: transparent glass Voltage type: AC Rated voltage: 220...240 V Control gear: LED control gear current-controlled With control gear: yes Light distributor: without Beam angle: extremely wide beam >80° Energy efficiency class of the permanently installed light source: A++, A+, A (LED) Rated service life L70/B10 at 25 °C: 0 h Rated service life L70/B50 at 25 °C: 100000 h Rated service life L80/B10 at 25 °C: 0 h Rated service life L80/B50 at 25 °C: 0 h Rated service life L90/B10 at 25 °C: 0 h Rated service life L90/B50 at 25 °C: 0 h Protection class (IP): IP65 Impact resistance: IK08 Protection class: I For gas Ex zone: 2 For dust Ex zone: 22 Rated ambient temperature to IEC62722-2-1: -70 °C Max. System output: 96 W Rated luminous flux to IEC 62722-2-1: 15000 lm Light colour: white Colour temperature: 4000 K Width: 420 mm Height/depth: 89 mm Length: 549 mm Outer diameter: 0 mm Conductor cross-section: 2.5 mm² Connection type: Plug-in terminal Schuch Licht LED Ex high bay spotlight nD8301 L160 H50: more details EX LED high bay luminaire, ExDUEVO, EX zone 2/22, 96 W, 15000 lm, SKI, IP65, wide beam, 4000 K, Ra= 80, Ta -20 °C/+50 °C, L70>100000 h (@ Ta max), DALI (DIMD), pane safety glass clear, shutter stainless steel (1.4301), die-cast aluminium housing, painted, colour grey, DB 702, EAN/GTIN:4041254325453.Explosion-proof LED high-bay luminaire ExDUEVO for Zone 2/22. Housing made of die-cast aluminium, multi-part, thermally separated, powder-coated, consisting of: Device housing with built-in control gear and smooth surface as well as LED housing with LED modules, frameless flat safety glass, thermally tempered, top of housing with flat cooling fin structure. LED modules with direct distribution, multi-layer technology, with direct connection to the housing to ensure optimum thermal management. ECG with overvoltage, overload, overtemperature and short-circuit protection as well as DALI interface for dimming operation. EAN: 4041254325453.
