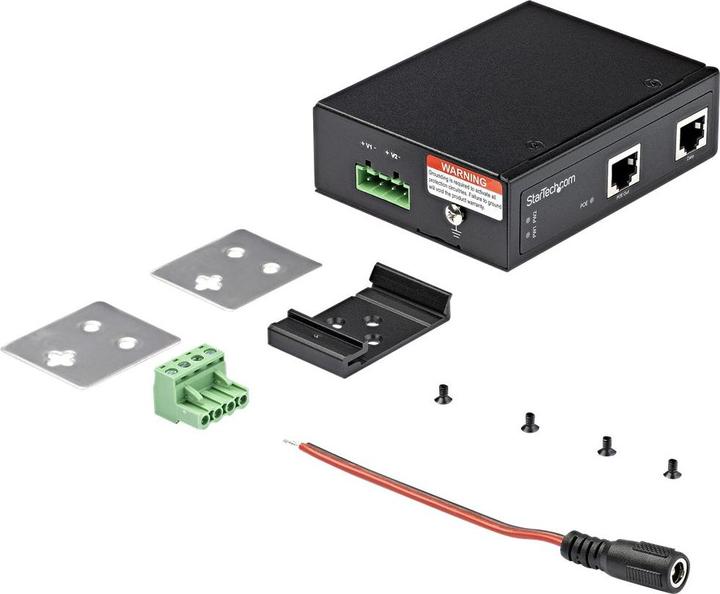

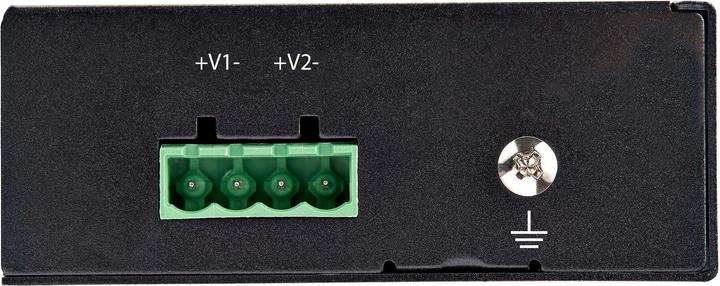

This Gigabit Power over Ethernet (PoE+) injector provides power and data to Gigabit PoE-compliant devices via a standard Ethernet cable. It is compatible with IEEE 802.3bt and most previous proprietary 90 W PoE standards, including PoH, Cisco uPoE, Bosch, and AXIS. A single product can cover multiple usage requirements to support standardization and deployment. Additionally, a terminal block with dual power input ensures redundancy for critical applications.

Since many typical PoE-capable switches can only deliver 30 W, a high power budget of 90 W is ideal for demanding Type 3 and Type 4 PoE applications such as pan-tilt cameras and high-performance Wi-Fi access points according to IEEE 802.11ax. The industrial-grade features include an operating temperature range of -40 °C to 75 °C, an IP30-rated housing, and vibration, shock, and drop standard testing. Vibration: EN 60068-2-6. Shock: EN 60068-2-27. Drop: EN 60068-2-32. MTBF of over 500,000 hours with Telcordia/Bellcore at 50 °C for long-term reliability.
