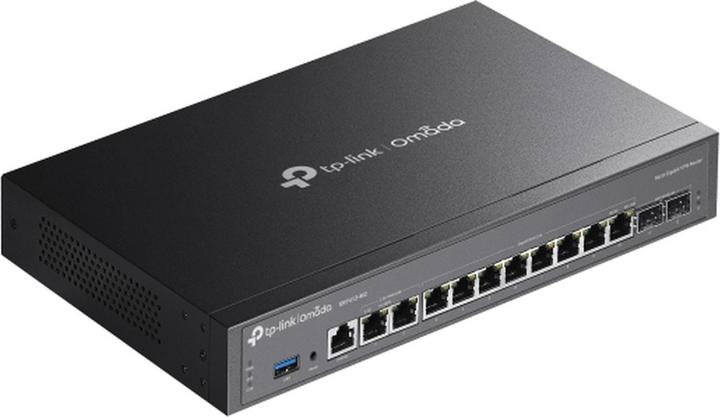

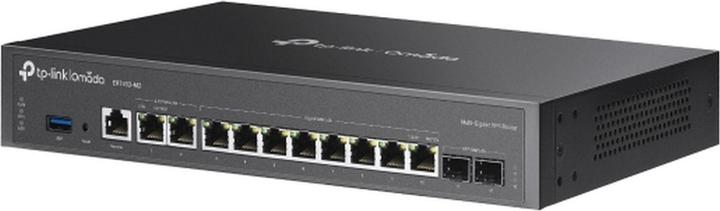

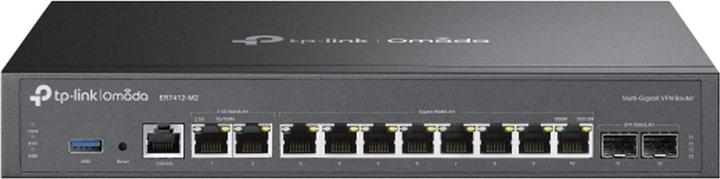

A high-performance and highly secure router with its own web management or the option for centralized management through Omada SDN. The router is equipped with 2x 2.5G WAN/LAN ports and 8x 1G WAN/LAN ports. For fiber connections, the router features 2x SFP ports. The included USB 3.0 port supports USB storage or a backup LTE modem. With the option of multiple WAN ports, the router enables functions such as failover or multi-WAN load balancing. The router supports a wide range of VPN protocols: GRE, SSL, IPsec, PPTP, L2TP, and OpenVPN.

Main Features

• 2x 2.5G ports
• 8x 1G ports + 2x SFP
• Up to 11 WAN ports
• VPN support: GRE, SSL, IPsec, PPTP, L2TP, and OpenVPN
• Integrated into the Omada SDN platform: Supports centralized cloud management, intelligent monitoring, and other features.
• Cloud access and Omada applications provide maximum convenience for management.
• Enhanced security: Protect your network and data with advanced firewall policies, DoS attack protection, IP/MAC/URL filtering, and other security features.

Package Contents

• Router ER7412-M2
• Power cable
• Rackmount kit
• Quick installation guide

Technical Parameters
Connectors and Interfaces

• Multiple WAN: Yes
• LAN Speed: (2) 100/1000/2500 Mbps LAN/WAN + (8) 10/100/1000 Mbps LAN/WAN
• Gigabit LAN: Yes
• Optical Interfaces: (2) 1000 Mbps
• Serial Port: RJ45

Power Supply

• Power Type: AC power (230 V)
• Max. Power Consumption [W]: 19

Physical Properties

• Design: Desktop, Rackmount
• Housing Material: Metal
• Buttons: Reset
• Operating Temperature [°C]: 0 to 45
• Width [mm]: 294
• Height [mm]: 44
• Depth [mm]: 180

Hardware

• CPU: ARM Cortex-A53
• CPU Frequency [MHz]: 2000
• CPU Cores: 4
• RAM [MB]: 1024

General

• NAT Throughput [Mbps]: 2366

Software

• Supported VPN: PPTP, L2TP, IPSec, OpenVPN,...
