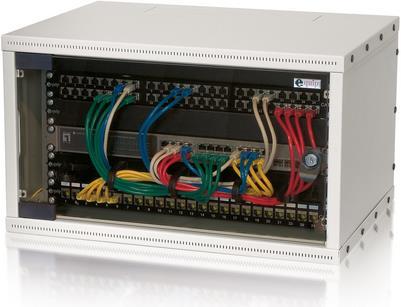

Triton RXA Wall Distributor (RXA-06-AS4-CAX-A1), 6U, 400 mm

The RXA wall distributor is part of the so-called flat-pack concept, which includes a disassemblable housing that is delivered in a disassembled state. This concept reduces transport and storage costs, contributing to an attractive price while maintaining all functional properties due to its unique design.

Thanks to its unique construction, the assembly of the RXA takes just a few minutes and requires almost no tools (Torx T25). The individual parts are connected by plastic plugs.

These wall distributors are only supplied with a lockable full glass door.

The pair of vertical 19-inch mounting rails can be adjusted in predefined positions at the front of the housing. This facilitates the installation of components as well as cable management.

Cable entry points are located at the top, bottom, and rear of the housing, equipped with break-out covers.

Size: 6U (H x W x D): 320 x 550 x 400 mm.

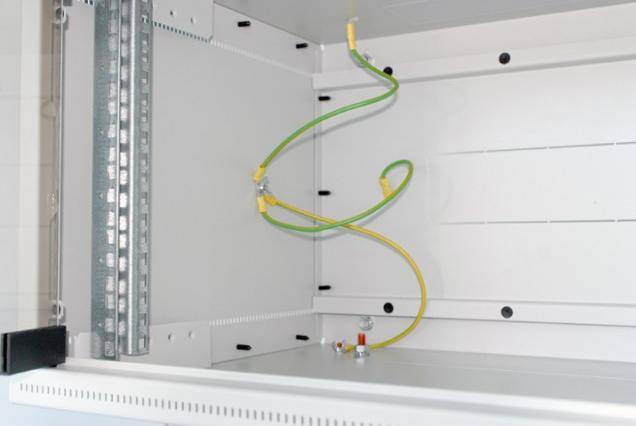

Disassemblable 19" wall distributor with protection class IP 30, delivered in a disassembled state. The housing is directly mounted on the wall. The distributor includes two adjustable vertical mounting rails. The distributor construction consists of parts connected by plastic plugs. The full glass door is made of 5 mm thick safety glass. The housings are designed for the installation of data and telecommunications systems and their distribution systems. All parts are connected with grounding cables, which must be properly secured and plugged in throughout the entire service life of the housing. An M8 screw is located at the bottom of the distributor as the main grounding point. Cable entry points with break-out covers are located at the top and bottom of the rear panel.
