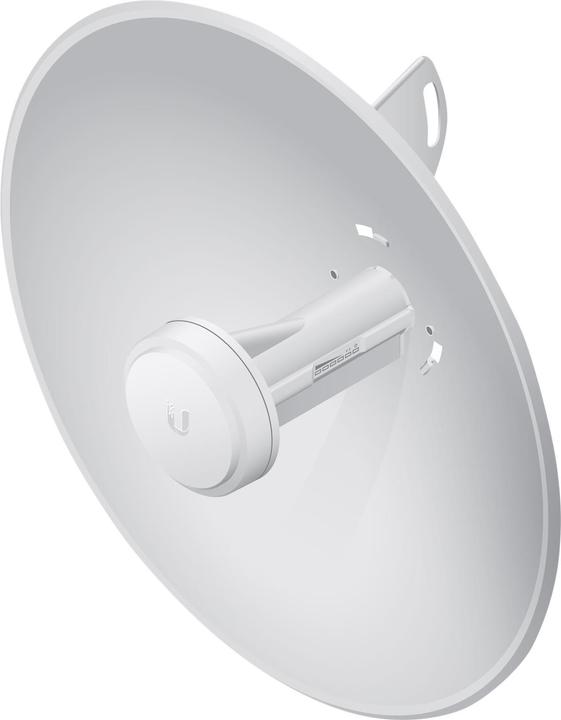

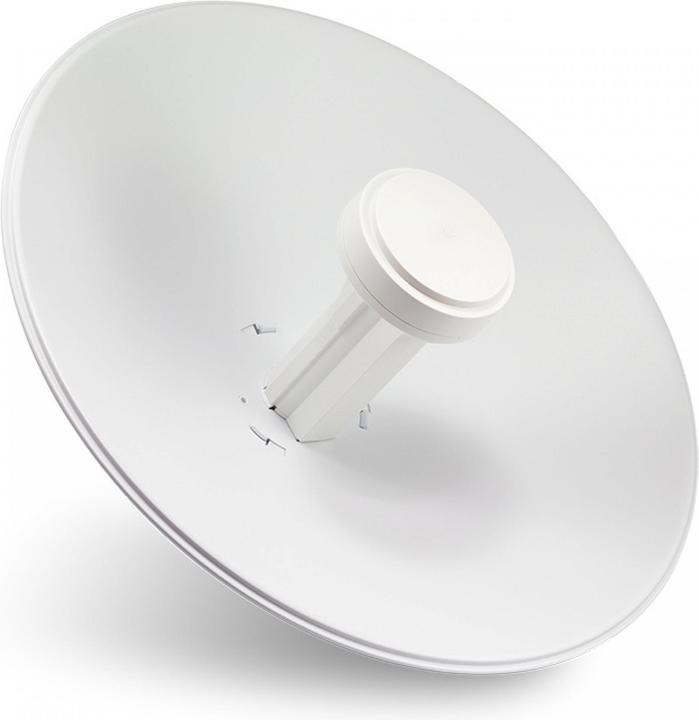

NanoBeam M2, NBE-M2-400/PBE-M2-400, 2.4 GHz, 18 dBi, 400 mm, official successor to the NanoBridge M2 - NB-2G18.

The new NanoBeam M features a compact all-in-one design with uniform radiation patterns and is even more efficient thanks to a faster processor. Its innovative mechanical design allows for easy and versatile mounting.

Improved noise immunity. The NanoBeam concentrates transmit power in a narrow beamwidth. By focusing in one direction, the NanoBeam blocks or filters out interference, thereby enhancing noise immunity. This feature is particularly important in environments with other signals on the same or adjacent frequency.

Integrated design. The NanoBeam is available in two configurations:
All-in-One Design: The development team has combined the transmission unit and the antenna into a compact device. The NanoBeam offers maximum antenna gain in a small size. Dish Reflector Design: The InnerFeed(TM) technology integrates the transmission unit within the antenna feed, eliminating the need for an antenna cable. This improves performance as there are no cable losses. The enhanced performance from the faster processor and improved mechanical design makes the NanoBeam extremely versatile and easy to install at a low cost.

AirMAX technology. Unlike standard Wi-Fi protocols, the airMAX Time Division Multiple Access (TDMA) protocol allows each client to send and receive data over predefined time slots, controlled by an intelligent controller. This "time slot" method prevents unnecessary data collisions and maximizes Wi-Fi efficiency. As a result, there is a significant improvement in performance regarding latency, throughput, and scalability compared to other systems in this class. Intelligent QoS: Voice and...
