Best Xtar products in the Batteries category
On this page you'll find a ranking of the best Xtar products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

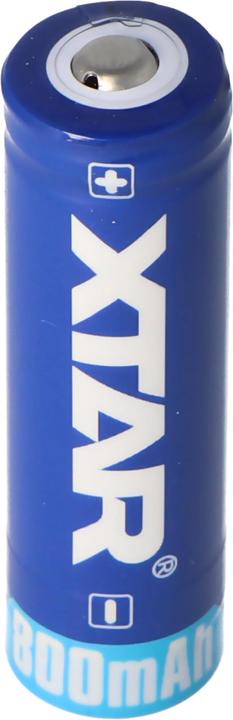

1. Xtar Battery - protected
Li-ion battery 14500 the powerful protected Liion battery with integrated PCB protection with short circuit, overcharge and deep discharge protectionXTAR 14500 protected with positive terminal increasedThis battery is specially designed for battery carriers and LED flashlights.Capacity800mAhMin. Capacity750mAhNominal voltage3,6V - 3,7VCharging voltage4,2V ± 0,05VDischarging voltage2,75VPluspole elevated (Button Top)Protectionintegrated 3AChemical compositionLiNiCoAlO2Diameter14,30 mm ± 0,2 mmHeight50,50 mm ± 0,5 mmWeight20 g ± 1 gCharging methodCC-CVSafety instructions:Please note that lithium cells should only be used by skilled persons.
Incorrect handling or short-circuiting can lead to fire or explosion.Other features:Lithium-ion batteries are thermally stable and are not subject to memory effect.
They work on the basis of lithium and are characterized by a high energy density.Technical data for "Xtar 14500 - 800 mAh 3.6 V - 3.7 V protected Li-Ion battery "Notes:For charging lithium ion batteries, a special charger is required, which charges the batteries according to a special charging procedure. (CCCV = constant current, constant voltage.) The batteries must not be charged above a voltage of 4.2V +-0.05, otherwise there is a risk of fire and explosion. It is advantageous to charge the batteries only up to approx. 4.1 volts, as this significantly increases the service life or the number of charging cycles (possibly up to double). Only Lithium Ion chargers may be used for charging. However, the cheap chargers sometimes have the disadvantage that they do not switch off safely at the end of the charging process, but continue to charge the batteries with a low charging current, which can be dangerous. Please dispose of them as prescribed by law.
2. Xtar Battery 18650, protected with head
Electronically protected against overvoltage, undervoltage and against short circuit and reverse polarity. Designed for industrial, flashlights, LEDs, etc.Xtar 18650 battery PCB protected (Sanyo/Panasonic NCR 18650 GA)Please note the dimensions of the cell before buying! Due to the built-in electronics, the cell is not suitable for every application!
Height and diameter are larger than a standard 18650 cell without PCB.Capacity3500mAhMinimum capacity3350mAhNominal voltage3.6V - 3.7VCharge voltage4.20V ± 0.05Vmax. Discharge current10Amax. discharge current PCB10ADischarge voltage2.50VProtection available PCBPluspoler heightened (Button Top)Diameter18.4 mm ± 0.30 mmHeight68.80 mm ± 0.50 mmWeight48 g ± 0.01 gCharge methodCC-CVSafety instructions:Lithium cells may only be operated with protection electronics!
Please note that lithium cells may only be used by qualified personnel.
Incorrect handling or short-circuiting may result in fire or explosion.Other features:Lithium-ion batteries are thermally stable and are not subject to memory effect.
They work on the basis of lithium and are characterized by a high energy density.Technical data for "XTAR 18650 3500mAh 3.6V - 3.7V Li-Ion battery (protected) "Notes:For charging lithium ion batteries, it requires a special charger, which charges the batteries according to a special charging method. (CCCV = constant current, constant voltage.) The batteries must not be charged above a voltage of 4.2 volts, otherwise there is a risk of fire and explosion. It is advantageous to charge the batteries only up to approx. 4.1 volts, as this significantly increases the service life or the number of charging cycles (possibly up to double). Only lithium ion chargers may be used for charging. However, the cheap chargers sometimes have the disadvantage.

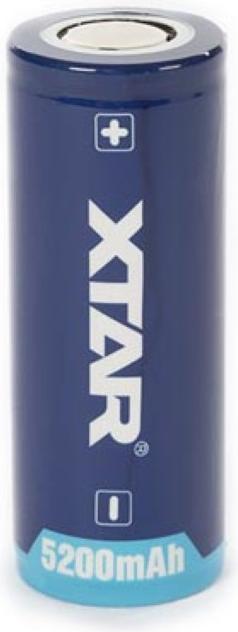

3. Xtar 5200mAh 3.6V 26650 battery with PCB
Nominal voltage: 3.6V Capacity: 5200mAh / 18.72Wh Full charge cut-off voltage: 4.25V Full discharge cut-off voltage: 2.5V Maximum continuous discharge current: 7A Dimensions: 26.5 x 69.3mm Weight: 95.5g Features: Good voltage stability due to low internal resistance Innovative structure design increases impact resistance PCB controller protects against short circuit, over discharge voltage or over charge More than 500 charging cycles
4. Xtar 3500mAh 3.6V 18650 battery with PCB
Nominal voltage: 3.6V Capacity: 3500mAh Full charge cut-off voltage: 4.25V Full discharge cut-off voltage: 2.5V Maximum continuous discharge current: 10A Weight: 48g Dimensions: 18.4 x 68.8mm Features: Good voltage stability due to low internal resistance Innovative structure design increases impact resistance PCB controller protects against short circuit, over discharge voltage or over charge More than 300 charging cycles
