Delock PCI Express card 90046 2x serial / RS232
Best Delock products in the Controller cards category
On this page you'll find a ranking of the best Delock products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Delock PCI Express card 90046 2x serial / RS232
The Delock PCI Express card expands the PC with two external serial ports. Various devices, such as scanners, protocol converters, IoT devices, etc., can be connected to the card.
Low Profile Form Factor
With the included low profile brackets, the PCI Express card can also be installed in a mini-PC.
Specifications
- Connections:
external: 2 x Serial RS-232 DB9 connectors
internal: 1 x PCI Express x1, V2.0
- Chipset: ASIX AX99100
- Compatible with 16C950 UART
- Supports Active State Power Management (ASPM)
- Supports Direct Memory Access (DMA)
- Data transfer rate up to 921.6 Kbps
- FIFO: 256 Bytes
- Data bits: 5, 6, 7, 8, 9
- Stop bits: 1, 1.5, 2
- Parity bit: even, odd, none, mark, space
- Flow control: none, hardware RTS/CTS, software XON/XOFF
- Operating temperature: 0 °C ~ 70 °C
System Requirements
- Windows 8.1/8.1-64/10/10-64/11
- PC with a free PCI Express slot
Package Contents
- PCI Express card
- 2 x Low Profile brackets
- Driver CD
- User manual.

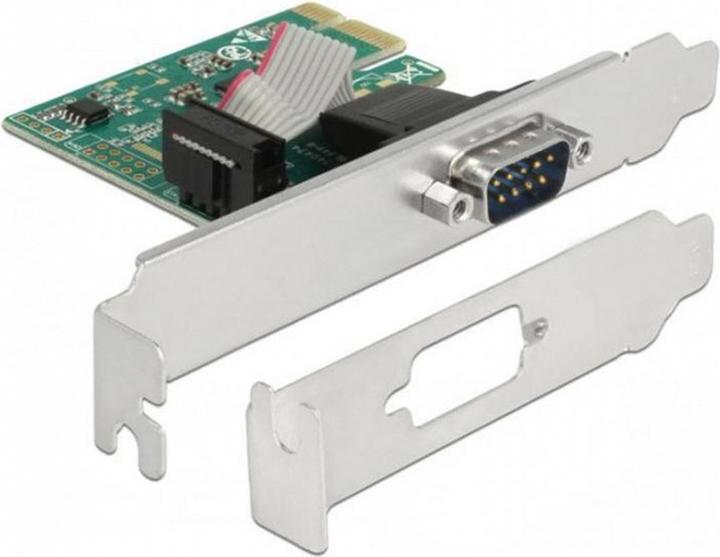

2. Delock 89948 PCI Express card 1x serial
The Delock PCI Express card expands the PC with an external serial RS-232 port. It can be used with devices such as scanners, protocol converters, POS systems, infrared and IoT devices, as well as various modes. With the included low-profile brackets, the PCI Express card can also be installed in a mini-PC.
3. Delock USB 5 Gbps PCI Express x1 card to 5 x external Type-A +
The Delock PCI Express card expands the PC with five external Type-A and two external USB Type-C™ ports. Various USB devices, such as USB sticks, card readers, external enclosures, etc., can be connected. A maximum data transfer rate of up to 5 Gbps can be achieved.
Power supply via the PCI Express interface
The card does not require an additional power supply. Power is supplied exclusively through the PCI Express interface.
Technical specifications
Connections:
external:
- 5 x USB 5 Gbps Type-A socket
- 2 x USB 5 Gbps USB Type-C™ socket
internal:
- 1 x PCI Express x1, V2.0
- Chipset: VIA VL817, Fresco Logic FL1100
- Data transfer rate up to 5 Gbps
- Power supply via PCI Express interface
- Electrical power per port: max. 5 watts (5 V / 1 A)
- Supports eXtensible Host Controller Interface (xHCI) Specification 1.1
- Supports UASP
- Supports Multiple INs
- Bootable
System requirements
- Linux Kernel 6.5 or higher
- Windows 10/10-64/11
- PC with a free PCI Express slot
Package contents
- PCI Express card USB 5 Gbps
- User manual
Packaging
- Box.

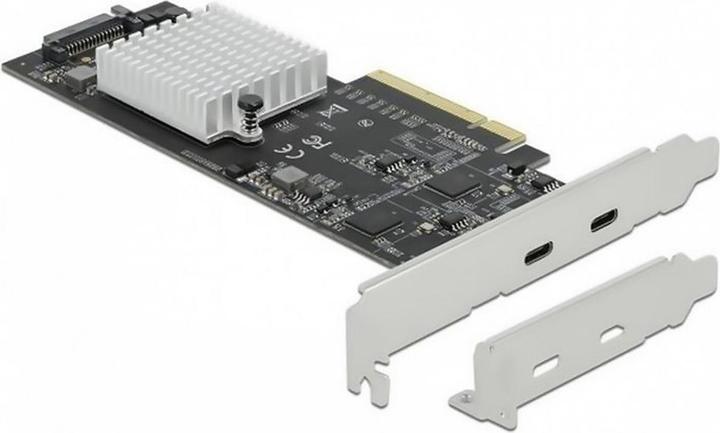

4. Delock PCI Express Card USB 3.2 Gen2x2 - 2x USB-C Dual Channel
The PCI Express card from Delock expands the PC with two external USB 3.2 ports. Various USB devices, such as docking stations, card readers, external enclosures, etc., can be connected to the card.
Dual Channel
The card features two ASM3242 chipsets, one for each USB Type-C™ port. This ensures a high data transfer rate of 20 Gbps across all ports when they are used simultaneously.
5. Delock PCI Express Card > 4 x Serial RS-232
Short Description
The Delock PCI Express card expands your system with four external high-speed RS-232 ports. Use this card for applications such as data acquisition, machine control, automation, development, or communication. With extensive overvoltage protection and an extended temperature range, this card is also suitable for industrial use. Connected devices can optionally be powered with a voltage of 5 V or 12 V.
Technical Specifications
- Chipset: Exar 17V354
- Connections:
external:
1 x Sub-D 44 Pin socket
Connection cable: Sub-D 44 Pin plug > 4 x Serial RS-232
Sub-D 9 Pin plug
internal:
1 x PCI Express x1, V2.0
1 x 4 Pin Molex power connector
- Baud rate: up to 921.6 Kb/s
- Compatible with 16C550 UART
- FIFO 256 Byte
- Data bit: 5, 6, 7, 8
- Stop bit: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow Control: RTS / CTS, XON / XOFF
- Adjustable power supply 5 V / 12 V or RI on pin 9
- Operating temperature: -30 °C ~ +75 °C
- Storage temperature: -40 °C ~ +85 °C
- Maximum relative humidity 95 % (non-condensing)
- 15 kV ESD protection for all signals
- I/O addresses and IRQ are assigned by the system
System Requirements
- Windows XP/XP-64/Vista/Vista-64/7/7-64, Linux from kernel 2.6
- PC with a free PCI Express slot
- Power supply with a free Molex power connector
Package Contents
- PCI Express card
- Low profile bracket
- 1 serial connection cable (approx. 30 cm)
- Driver CD
- User manual
Packaging
- Box.
6. Delock PCI Express Card USB 3.1 Gen2 - 3x USB-C + 2x USB-A
The Delock PCI Express card expands the PC with five external USB 3.2 ports. Various USB devices, such as docking stations, card readers, external enclosures, etc., can be connected to the card.
It has sufficient connections - 3 x USB Type-C and 2 x USB Type-A. The PCIe card offers three USB-C ports and two USB Type-A ports, allowing devices to be connected at each port with speeds of up to 10 Gbps.
7. Delock 89864 PCI Express card FireWire B
The Delock PCI Express card expands the PC with three external FireWire 800 ports and one internal FireWire 400 port. Various FireWire devices such as external enclosures, digital cameras, camcorders, adapters, etc. can be connected to the card.
8. Delock PCI Express card 89938 4x RS-232 with power supply
The Delock PCI Express card expands the PC with four external serial ports. Connected devices can optionally be powered with a voltage of 5 V or 12 V.
Low Profile Form Factor
With the included low profile bracket, the PCI Express card can also be installed in a mini-PC.
Specifications
- Connections:
external:
1 x DB44 socket
Connection cable: DB44 plug > 4 x Serial RS-232 DB9 plugs
internal:
1 x PCI Express x1, V1.1
1 x SATA 15 Pin connector
- Chipset: WCH384L
- Data transfer rate up to 460.8 Kbps
- FIFO: 256 Byte
- Data bits: 4, 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity bit: even, odd, none, mark, space
- Flow control: none, hardware RTS/CTS, software XON/XOFF
- Compatible with 16C950 UART
- 5 V or 12 V voltage individually adjustable for each port via jumper (Pin 1 or 9)
- Electrical power per port: 10 Watts (5 V / 2 A)
- Electrical power per port: 24 Watts (12 V / 2 A)
- Signals: DCD/12V/5V, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5V
- Cable length including connectors: approx. 35 cm
System Requirements
- Windows 7/7-64/8.1/8.1-64/10/10-64/11
- PC with a free PCI Express slot
- Power supply with a free SATA power connector
Package Contents
- PCI Express card
- Low profile bracket
- 1 serial connection cable
- Driver CD
- User manual.

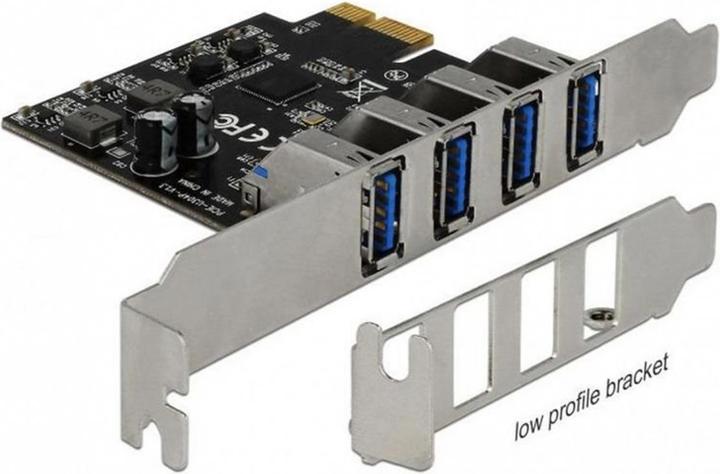

9. Delock PCI Express Card 4x USB Type-A
The Delock PCI Express card expands the PC with four external USB 3.0 ports. Various USB devices, such as docking stations, card readers, external enclosures, etc., can be connected to the card. The card does not require an additional power supply, making it suitable for Mac as well. Power is supplied exclusively through the PCI Express interface with a maximum of 5 watts per port.
10. Delock PCI Express card 90500 1x Parallel (DB 25)
The Delock PCI Express card expands the PC with an external parallel port. Various devices such as scanners, printers, etc. can be connected to this card. With the included low-profile bracket, the PCI Express card can also be installed in a mini PC.
Specifications:
- Connections:
- external: 1 x Parallel DB25 socket
- internal: 1 x PCI Express x1, V2.0
- Chipset: ASIX AX99100
- Data transfer rate up to 1.5 Mbps
- SPP, EPP, ECP compatible with IEEE 1284
- Dimensions (LxW): approx. 65.5 x 54.0 mm
System requirements:
- Windows 8.1/8.1-64/10/10-64/11
- PC with a free PCI Express slot
Package contents:
- PCI Express card
- Low profile bracket
- Driver CD
- User manual.
