Best selling Converters from Planet
On this page you’ll find a ranking of the best Converters from Planet. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Planet RS232/RS-422/RS485 to Ethernet serial server
The RS232/RS422/RS485 to Ethernet Serial Server from Planet is a versatile solution for integrating serial devices into Ethernet networks. With a DB9 connector, it supports various serial standards, including RS232, RS422, and both 2-wire and 4-wire RS485 connections. The server enables asynchronous data transmission rates of up to 921600 bps and offers various operating modes such as VCOM, TCP Server, TCP Client, and Modbus. Management is facilitated through a user-friendly web interface or Telnet, and support for IPv4 and IPv6 ensures future-proof network integration. With features like DHCP client, IP-based management, and firmware updates via HTTP, this serial server is ideal for industrial applications that require a reliable and flexible network connection.
- Supports multiple serial standards: RS232, RS422, RS485
- High data transmission rate of up to 921600 bps
- Versatile operating modes for different applications
- User-friendly IP-based web management.
2. Planet IXT-705AT Network Media Converter
The IXT-705AT network media converter from Planet is a powerful solution for data transmission in industrial environments. With a maximum data transfer rate of 20,000 Mbit/s, this media converter supports a variety of Ethernet LAN data transfer rates, including 100, 1000, 2500, 5000, and 10,000 Mbit/s. It features an SFP+ port that allows for flexible connections to optical cables. The media converter is designed for use in harsh environments, offering an operating temperature range of -40 °C to +75 °C and an IP30 protection rating that shields it from dust and other environmental factors. Support for jumbo frames up to 16,000 bytes and data flow control ensure efficient data transmission. The IXT-705AT is easy to install and requires no special configuration, making it a user-friendly solution for network professionals.
- Maximum data transfer rate of 20,000 Mbit/s
- Support for Ethernet LAN data transfer rates up to 10G
- Jumbo frames support up to 16,000 bytes
- Operating temperature range of -40 °C to +75 °C
- DIN rail mounting for easy installation.
3. Planet XT-915A 2-Port 10G/1GBASE-X SFP Managed Media Converter
The Planet RJ45 Ethernet Media Converter XT-915A is a powerful network device designed to extend copper Ethernet connections over long distances. This media converter supports data transfer speeds of up to 40,000 Mbit/s with half-duplex and full-duplex operation, enabling reliable network connections over distances of up to 100 km. The device features standard RJ45 copper Ethernet ports for seamless integration into existing network infrastructures. Built with industrial-grade components, this media converter delivers stable performance in demanding network environments. Its compact design ensures easy installation in various settings such as data centers, corporate networks, and industrial applications. The unit operates with standard Ethernet protocols and maintains signal integrity over extended cable runs. This media converter is designed for continuous operation with robust thermal management and energy efficiency. It supports auto-negotiation for optimal connection establishment and includes comprehensive status indicators for easy monitoring. The device is compatible with standard networking equipment and requires no additional software configuration for basic operation. Suitable for professional IT infrastructures, telecommunications networks, and industrial automation systems where advanced Ethernet connectivity is required, the Planet XT-915A offers a reliable solution for network expansions without compromising data transmission quality or network stability.
4. Planet GST-805A Network Media Converter
To provide an easy-to-use yet powerful solution for FTTX applications, PLANET has released a new 10/100/1000Base-T to 1000Base-SX/LX Smart Media Converter, GST-80x series, featuring plug and play and smart media conversion functions.
Distance extension with high performance and steady network communication
PLANET GST-80x Smart Gigabit Media Converter series extends communication distance with high Gigabit performance via fiber optical cable. The GST-80x series provides media conversion between 10/100/1000Base-T and 1000Base-SX/LX interfaces such as multi-mode LC/SC connectors (220m / 550m), single-mode LC/SC connectors (10/20/30/40/50/70/120km), and single fiber connectors (WDM, 15/60km) for various fiber optic applications.
Enhanced smart management features
The GST-80x series provides auto MDI/MDI-X on its TP port and a DIP switch to configure the available smart functions including auto-negotiation/force for fiber interface and Link Pass-through function (LLCF/LLR). The Link Loss Carry Forward (LLCF) function works with Link Loss Return (LLR) to diagnose network connections. Additionally, the LLR function can immediately alert the network administrator to media link issues and provide efficient solutions for monitoring the entire network.
Easy installation
The GST-80x series allows two segments to connect easily. The Smart Media Converter can be used as a standalone unit when powered by its DC adapter or as a slide-in module to PLANET 19-inch managed 16-slot media converter chassis. When working with the managed media converter chassis, the GST-80x is able to be managed, and its status can be monitored through the local RS-232 console and remote web interface.

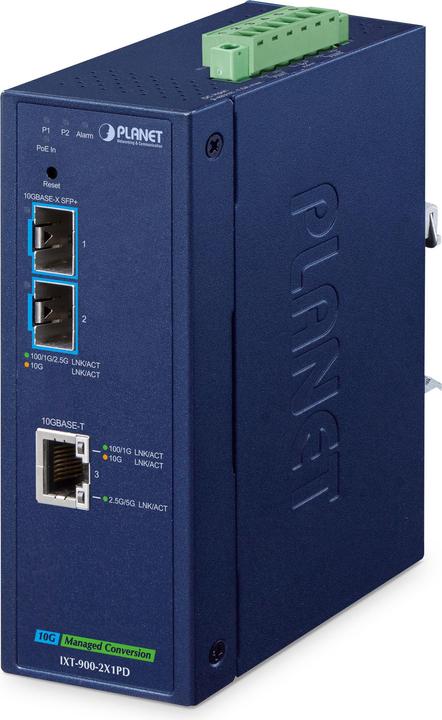

5. Planet Industrial 2-Port SFP+ 1-Port GE PoE Media Converter
The Industrial 2-Port SFP+ 1-Port GE PoE Media Converter from Planet is a powerful solution for data transmission in industrial environments. With a maximum data transfer rate of 10,000 Mbit/s and an impressive transmission distance of up to 80,000 meters, this device provides a reliable connection for various network standards, including IEEE 802.1Q and IEEE 802.3. The robust metal housing and IP40 certification ensure high resistance to environmental influences, while the operating temperature range of -40 to 75 °C allows for use in extreme conditions. The media converter supports Power over Ethernet (PoE), simplifying installation and offering additional flexibility. With features such as VLAN support and web-based management, this device is ideal for demanding network architectures.
- Maximum data transfer rate of 10,000 Mbit/s
- Transmission distance of up to 80,000 m
- Operating temperature range of -40 to 75 °C
- Support for Power over Ethernet (PoE)
- Robust metal housing with IP40 certification.
6. Planet IFT-802T Network Media Converter 1310 nm
High-performance distance extension with stable network communication. The PLANET 10/100Base-TX to 100Base-FX industrial media converter from the IFT-80xT series extends communication distances with stable performance over fiber optic cables. The extended distance can reach up to 2 km with the IFT-802T, up to 15 km with the IFT-802TS15, or up to 20 km with the IFT-805AT (depending on the SFP module). The IFT-80xT series is specifically designed with robust components and a sturdy housing to operate reliably in electrically harsh and climatically demanding environments. This industrial media converter offers a high level of immunity to electromagnetic interference and strong electrical surges that are typically found in production facilities or traffic control cabinets. It can operate in a temperature range of -40 to 75 degrees Celsius, allowing the IFT-80xT series to be deployed in nearly any challenging environment.
Robust performance of the media converter. The PLANET IFT-80xT 10/100Base-TX to 100Base-FX industrial media converter series efficiently converts data between 10/100Base-TX and 100Base-FX networks. The IFT-80xT series provides flexibility for all types of 10/100 Mbps Ethernet media at the RJ-45 port and delivers highly stable fiber optic performance.
Easy installation and wide range of power utilizations. The IFT-80xT series is housed in a compact IP-30 enclosure, suitable for both DIN rail and panel mounting, optimizing space in the cabinet. It features a built-in power supply with a wide voltage range for global operation. Additionally, it offers dual-redundant, reversible 12V DC to 48V DC power input options for high-availability applications that require dual or backup power inputs.
7. Planet IGUP-1205AT
The industrial Gigabit media converter Planet IGUP-1205AT combines Ethernet media conversion (from 1000BASE-X to 10/100/1000BASE-T) with the 802.3bt Power over Ethernet Plus Plus (PoE++) injector function to deliver an output power of up to 95 watts and high data transfer speeds to powered devices (PDs) installed in remote areas where a sufficient and reliable power supply is required.
Its 1000BASE-X fiber optic uplink port enables high speed and stable data transmission over long distances to a remote core network. The IGUP-1205AT's specialized and practical power supply system supports two 12-56 V DC power inputs for power redundancy and operational flexibility.
The maximum distance between a PoE-PSE (Power Sourcing Equipment) and a PD over an Ethernet cable is 100 meters. To extend the PoE application range, the IGUP-1205AT is equipped with a fiber optic interface for applications over greater distances. The fiber optic connector type of the IGUP-1205AT includes two SFP slots that support 100BASE-FX/1000BASE-X multi/single-mode SFP modules and allow for transmission distances of up to 120 km (depending on the SFP module used).
Thanks to support for long fiber optic runs, the IGUP-1205AT maintains a transmission performance of up to 1000 Mbps. It operates with a powerful store-and-forward mechanism and can prevent packet loss with IEEE 802.3x flow control. Additionally, it can immediately inform administrators of issues via the connection medium and provide an efficient solution for monitoring network power consumption.
8. Planet 1-Port 100/1000X SFP to
802.3bt PoE++ 95-watt power over 4-pair UTP solution
The PLANET GUP-805A-95W adopts the IEEE 802.3bt PoE++ standard technology, capable of sourcing up to 95 watts of power using all four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). Its power capability is three times more than that of the conventional 802.3at PoE+ and is an ideal solution for high power consuming network PDs, such as:
- PoE PTZ speed dome cameras
- Network devices
- Thin clients
- AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
- Remote digital signage displays
- PoE lighting
With a total power budget of up to 95 watts for various PoE applications, the GUP-805A-95W provides a quick, safe, and higher 802.3bt PoE++ network solution for small businesses and enterprises.
High performance and steady network communications guaranteed despite distance extension
The GUP-805A-95W extends communication distance with high Gigabit performance via SFP slot and SFP transceiver. It provides media conversion between 10/100/1000BASE-T and 100/1000BASE-X interfaces for various fiber optic applications.
802.3bt PoE++ and DIP switch for PoE power output mode options
To meet the demand of various powered devices consuming stable PoE power, the GUP-805A-95W provides one DIP switch for multi-PoE operation modes that include 95-watt 802.3bt type-4 PoE++ mode, UPOE, and legacy mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field.
- 802.3bt PoE++ power output mode
- UPOE power output mode
- Legacy power output mode.
9. Planet 7-Slot 10" Media Converter
Short info: Planet MC-700 - Modular expansion unit - Rack-mountable group network devices. Manufacturer: Planet Technology. Model: MC-700. EAN/UPC: 7612946225985.
Product Description: Planet MC-700 - Modular expansion unit. Type: Modular expansion unit. Form factor: Rack mountable. Power supply: AC 120/230 V (50/60 Hz). Dimensions (Width x Depth x Height): 21.7 cm x 14 cm x 8.85 cm.
Detailed Information: General equipment type: Modular expansion unit. Width: 21.7 cm. Depth: 14 cm. Height: 8.85 cm. Network form factor: Rack-mountable. Connection technology: Wired. Performance features: Modular design. Expansion/connectivity: Expansion slots 7 (total)/7 (free) x expansion slot.
Miscellaneous: Marking: FCC Part 15 A. Power supply: Internal power supply. Required mains voltage: AC 120/230 V (50/60 Hz). Power consumption in operation: 40 watts. Ambient conditions: Min operating temperature: 0 °C. Max operating temperature: Operating temperature.
10. Planet VC-232G
The VC-232G is based on dual-core network technology, Gigabit Ethernet, and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). It provides a stable yet fast point-to-point network access with a duplex data transmission of up to 300 Mbps. The VC-232G features two selective transmission modes: asymmetric mode or symmetric mode for transmitting upstream and downstream signals. In asymmetric mode, the downstream speed reaches up to 200 Mbps, while the upstream speed can go up to 100 Mbps. In symmetric mode, both downstream and upstream speeds can reach up to 150 Mbps. The symmetric mode offers similar transmission rates for downstream and upstream, while the asymmetric mode provides higher transmission quality in close range. Overall, the VC-232G delivers better upstream performance in symmetric mode and better downstream performance in asymmetric mode.
