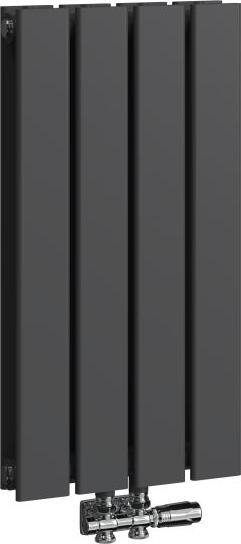

EMKE Radiator Introduction

As a provider of high-quality online sanitary products, EMKE aims to bring warmth to every household. We hope that the radiator serves not only as a heating solution but also as a decorative element in the home, rather than being hidden or covered up.

Product Features

• High-Quality Materials: We use low-carbon steel, a cold-rolled steel, to ensure durability, rust, and corrosion resistance. The surface is treated with an environmentally friendly coating that is simple yet beautiful.

• High Thermal Conductivity: The radiator is heated by flowing hot water, and the high-quality stainless steel material ensures good thermal conductivity.

• Advanced Welding Technology: Thanks to advanced integrated welding, the weld seam is extremely small and aesthetically pleasing. Overlapping welding can ensure higher strength and lower leakage rates.

• Radiator Design: The straight-line design impresses with contemporary modern clarity. The flat channel design allows for close wall placement of the radiator, thus reducing space requirements.

Technical Specifications

• Material: Quality Steel

• Color: Anthracite (RAL 7016)

• Installation Orientation: Vertical

• Connection: Central Connection

• Connection Thread: G1/2"

• Connection Size: 50 mm

• Wall Distance (from wall to outer edge of radiator): 85 mm

• Maximum Operating Pressure: 6 bar

• Recommended Water Inlet/Outlet Temperature: 75°C/55°C

• Both ends of the radiator can also be used as water inlet and outlet (with split valves).

Size and Performance

Single Layer, 600x300x49mm, 233W, Room Area: 3.1 sqm

Double Layer, 600x300x63mm, 327W, Room Area: 4.4 sqm.
