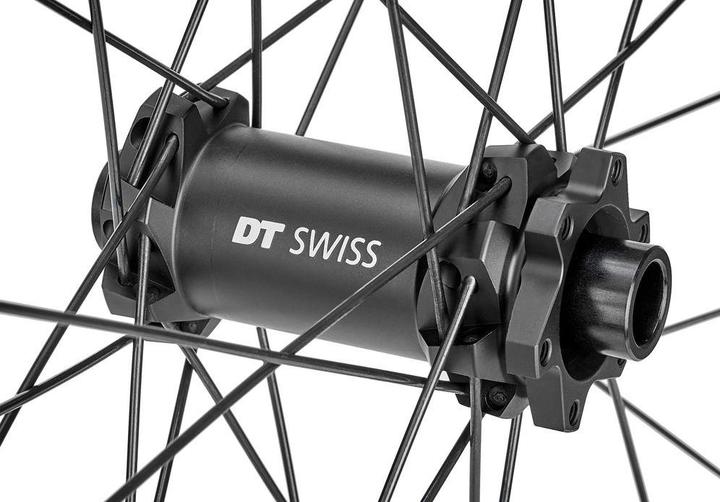

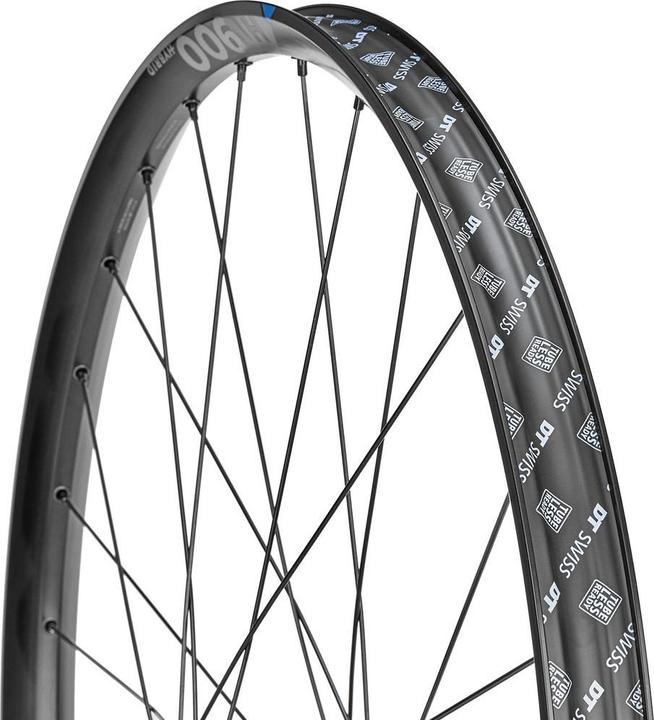

DT Swiss H 1900 Spline

Front wheel, 27.5"
Price in EUR including VAT
Delivered Mon, 16.3.
8 pieces in stock at third-party supplier
Supplied by
free shipping

Ability brake type2

Product details

When muscle power and motor power come together, the action radius of a mountain bike increases exponentially. The H 1900 SPLINE was designed to do just that. With the reliability of Swiss precision hubs, sturdy spokes, and durable and lightweight rims, it's ready for any adventure. Experience how far the symbiosis of man and machine carries you is the motto. But no need to worry: Like all DT SWISS products, the test riders have also the H 1900 SPLINE in the notoriously wild and steep Swiss Jura challenged to the limit. So that its reliability is above all when you install it in your bike and of course because it's just fun.PRO LOCK In the Pro Lock process, a patented two-component adhesive is injected into the nipple thread, which allows the construction of extremely durable wheels. Once the nipples are screwed in, the adhesive is activated, fully curing at room temperature after approximately 6-7 hours. Multiple re-centering is possible without any problems, although the adhesive strength decreases slightly with each re-centering. - Intended use: MTB - Designed for e-bikes - Axle system: VR 15x110 mm - Axle standard: thru axle hub front - Installation width: 110 mm - Axle diameter front: 15 mm - Features: for thru axle rims - Height: 20 mm - Tire type: Clincher/Clincher - Brake system: disc brake - Valve hole: 6.5 mm mm - Tubeless suitable - Material: aluminum - Width: 35 mm - Type: hollow chamber - Mouth width: 30 mm - Tread height: low (< 30mm) - Size (in inches): 27.5 inch Scope of delivery - Scope of delivery: 1 x DT Swiss H 1900 Spline VR 27.5" Disc 6-Bolt 30mm 15x110mm TA incl. TL Tape 32 mm, TL Valve MTB 32 mm spokes - Type: spokes: DT hybrid 1 / Nipple: DT ProLock Squorx ProHead alu - Lacing: 3-cross wheel front - Designed for brake type: disc brake 6-hole - Weight: 973 g Main information - Design: front.

Key specifications

BIke wheel type
Front wheel
Ability brake type
Disc brake 6-hole
Suitable tyre type
Wired-on tire
Width
35 mm
jaw width
30 mm
Axle system
VR 15x110 mm
Weight
973 g

General information

Item number
17299706
Manufacturer
DT Swiss
Category
Wheels
Manufacturer no.
W0H1900BHIXSA18337
Release date
29.10.2021

Colour

Colour
Black
Exact colour description
Black

Material

Material group
Metal
Material
Aluminium

Wheel properties

Bike area of use
Mountain bike
Lacing
Triple crossed
Wheel size
27.5"
Model year
2022

Wheel properties

BIke wheel type
Front wheel
Ability brake type
Disc brake 6-hole
Max. load
150 kg

Rim properties

Rim model
HU 1900 Spline
Material rim
Aluminium
Rim height
20 mm
Number of holes
28x
Suitable tyre type
Wired-on tire
Width
35 mm
jaw width
30 mm
Valve hole diameter
6.50 mm

Hub + freewheel Features

Axle system
VR 15x110 mm
Axis standard
Thru axle
Installation width front
110 mm
Diameter axle front
15 mm
Diameter rear axle
15 mm
Cassette compatibility
3-speed
Freewheel
Is

Origin

Country of origin
Switzerland

Voluntary climate contribution

CO₂ emissions
10,73 kg
Climate contribution
EUR 0,26

Scope of delivery

Scope of delivery
1 x DT Swiss H 1900 Spline VR 27.5" Disc 6-Bolt 30mm 15x110mm TA incl. TL Tape 32 mmTL valve MTB 32 mm

Product dimensions

Weight
973 g

Package dimensions

Length
68 cm
Width
16.50 cm
Height
66 cm
Weight
2.55 kg
