Pull-Up Bars: 6

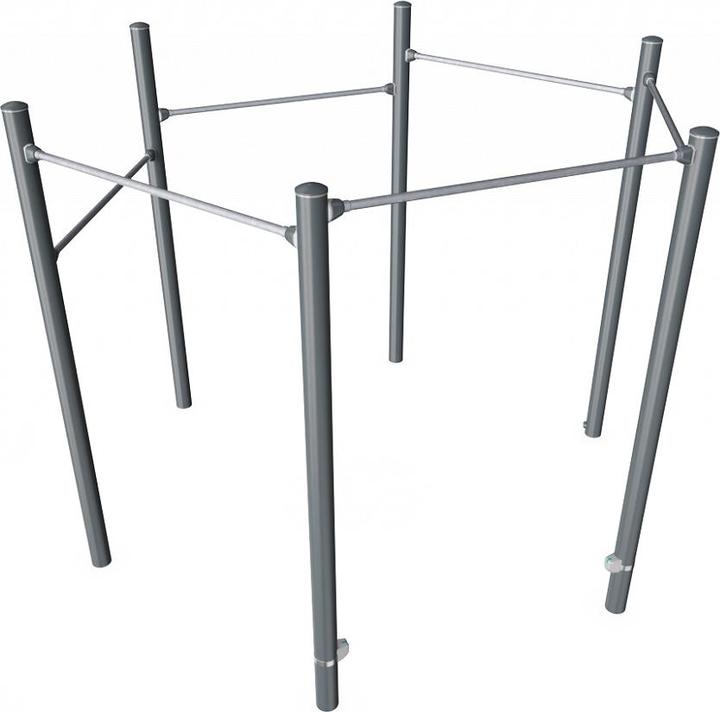

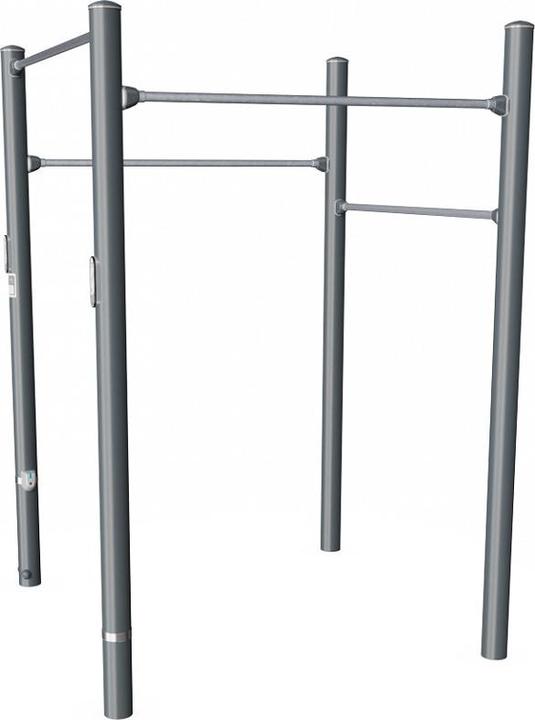

The Kompan Outdoor Fitness Station Pull-Up is suitable for parks, public areas, and other outdoor fitness facilities. It is available in versions with 4 and 6 pull-up bars, which can be used by multiple people simultaneously. The station is versatile and is suitable for pull-ups as well as advanced exercises like the Flying Monkey, where athletes swing from bar to bar.

Product details:

• Material of pull-up bars: Steel, hot-dip galvanized
• Material of connectors: Aluminum, alloyed
• Material of screws for securing connectors: Stainless steel, protected by washers
• Material of posts: Pre-galvanized carbon steel, powder-coated
• Material of steps: Aluminum, extruded with non-slip surface
• Material of information sign: Polyamide
• Diameter of pull-up bars: 32 mm
• Diameter of posts: 101.6x2 mm
• Heights of steps: 34.7 cm and 54.7 cm
• Weight: 151 kg or 226 kg
• Color: Gray

Additional details for the 4-Pull-Up Station:

• Number of installers: 2
• Total assembly time: 3.7 hours
• Required earth excavation: 0.11 m³
• Concrete requirement: 0.04 m³
• Foundation depth (standard): 90 cm

Additional details for the 6-Pull-Up Station:

• Number of installers: 2
• Total assembly time: 4.4 hours
• Required earth excavation: 0.17 m³
• Concrete requirement: 0.08 m³
• Foundation depth (standard): 90 cm

Application area: Park facility, public playground

• Standard: DIN EN 16630
• Usage possibility: Calisthenics, fitness park
• Ground: Safety mats, gravel, wood chips, grass, bark mulch, sand
• Training focus: Agility, coordination, strength
• Age: From 13 years
• Max. number of users: 6
• Material: Steel, powder-coated
• Max. fall height: 133 cm
• Dimensions: 317x276x240 cm
• Safety area: 616x573 cm
• Fall protection: 35.30 m².
