Zipp Rear Hub ZR1 Centerlock 24H 12x142 XDR
Disc brake Center lockFreewheel3
Product details

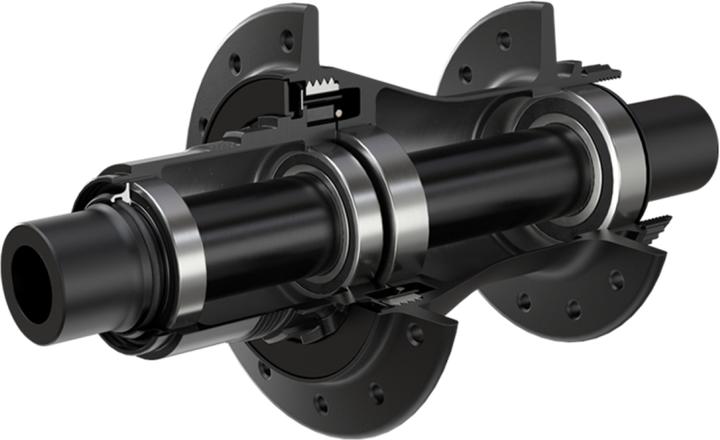

In the next development stage of the hubs for our professional-grade Firecrest wheels, we consulted with engineers at the German development office in Schweinfurt. The result is the ZR1 hub sets for disc and rim brake wheels. This hub set features an improved sealing design and faster engagement response thanks to 66 engagement points of the freehub body. Our engineers spent over two years developing the ZR1. The durability testing of the hub set included more than 58,500 km of test rides, which were part of 3,222 test hours. They incorporate key technologies from the Zipp Cognition hubs. The seal design is inspired by Cognition, featuring a larger dust cap behind the freehub body and better seals for increased protection. The bearing size is also the same as that of the Cognition, although the Cognition uses premium bearings. The six pawls are staggered to operate in two groups of three pawls. At any time, three pawls engage simultaneously. This design creates a quick engagement feel with 66 engagement points. The freehub body is designed to keep the pawls in place for easy maintenance. Zipp hubs are designed for use with J-bend spokes, the most popular type of spokes today. J-bend spokes are widely used and easier to replace.
Bike area of use | Gravel |
Axle diameter | 12 mm |
Installation width | 142 mm |
Freewheel | Sram xdr |
Weight | 237 g |
Item number | 17815071 |
Manufacturer | Zipp |
Category | Hubs + Freewheels |
Manufacturer No. | 105736 |
Release date | 26.7.2021 |
Colour | Black |
Exact colour description | Black |
Material group | Metal |
Material | Aluminium |
Bike area of use | Gravel |
Hub type | Rear wheel hub |
Ability brake type | Disc brake Center lock |
Axis standard | Thru axle |
Number of holes | 24x |
Axle diameter | 12 mm |
Installation width | 142 mm |
Cassette compatibility | 12-speed |
Freewheel | Sram xdr |
Country of origin | France |
CO₂ emissions | 2,67 kg |
Climate contribution | EUR 0,12 |
Weight | 237 g |
