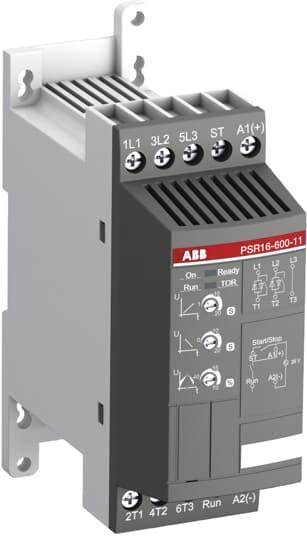

ABB Stotz S&J Soft Starter PSR16-600-11

Manufacturer: ABB Stotz S&J
Designation: Soft Starter
Type: PSR16-600-11
Rated Operating Current Ie at 40 °C: 16 A
Rated Operating Voltage Ue: 208..600 V
Rated Power for Three-Phase Motor, Standard Circuit, at 230 V: 4 kW
Rated Power for Three-Phase Motor, Standard Circuit, at 400 V: 7.5 kW
Rated Power for Three-Phase Motor, Star-Delta Circuit, at 230 V: 4 kW
Rated Power for Three-Phase Motor, Star-Delta Circuit, at 400 V: 7.5 kW
Function: one direction of rotation
Internal Bypass: yes
With Display: no
Torque Control: no
Rated Ambient Temperature without Derating: 40 °C
Rated Control Supply Voltage Us at AC 50 Hz: 24 V
Rated Control Supply Voltage Us at AC 60 Hz: 24 V
Rated Control Supply Voltage Us at DC: 24 V
Voltage Type for Actuation: AC/DC
Integrated Motor Overload Protection: no
Tripping Class: adjustable
Protection Class (IP): IP20
Protection Class (NEMA): 1

The PSR series of soft starters includes the most compact soft starters, enabling the design of compact starting devices. The system concept with motor protection circuit breakers and products from the PSR series provides a significantly more compact starting solution compared to, for example, a star-delta starter. Integrated bypass contactors reduce energy losses and simplify connections, while the setup is made easy with the limitation to just three potentiometers. The optimized ramp characteristics ensure very smooth starting and stopping under all operating conditions. PSR with Us = 24V AC/DC, EAN: 7320500477182.
