Stiebel Eltron Thermo Floor TBS TC 200/4 SetPlus

Manufacturer: Stiebel Eltron
Description: Thermo Floor 4 sqm, 200 W/sqm
Type: TBS TC 200/4 SetPlus
Design: Heating cable
With carrier mat: yes
Fixation of heating conductor: sewn
Self-adhesive: yes
Connection voltage: 230 V
Connection power: 800 W
Power: 200 W/m²
Heating conductor load: 10 W/m
Resistance: 61 Ohm
Number of cold conductors: 1
Length of cold conductors: 4000 mm
Suitable for wet rooms: yes
Suitable as outdoor heating: no
Suitable as roof heating: no
Area: 4 m²
Length: 13300 mm
Width: 300 mm
Thickness: 3 mm
With controller: yes
With room thermostat: yes
With floor temperature sensor: yes

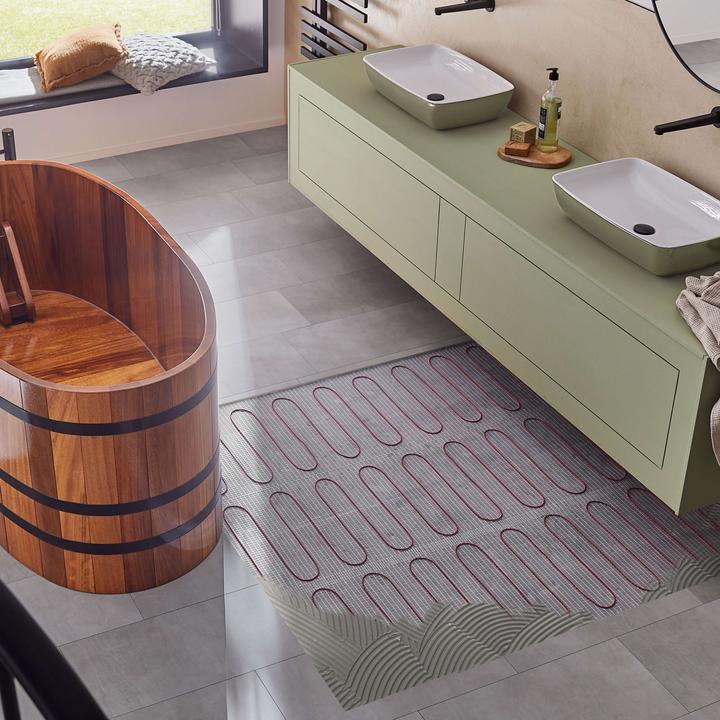

The set consists of a thin-bed heating mat, specifically designed for thicker ceramic floor coverings, along with the corresponding controller and installation materials. The thin-bed heating mat is used for floor temperature regulation in new buildings and during renovations. It is installed directly under the floor covering and quickly provides a pleasantly warm floor surface, regardless of the existing heating system. The heating mat is suitable as a supplementary or additional heating source.

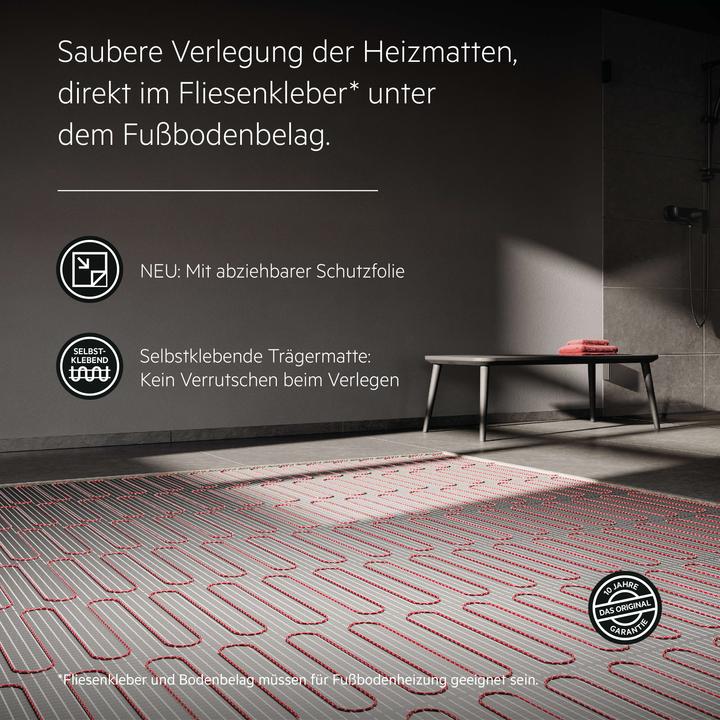

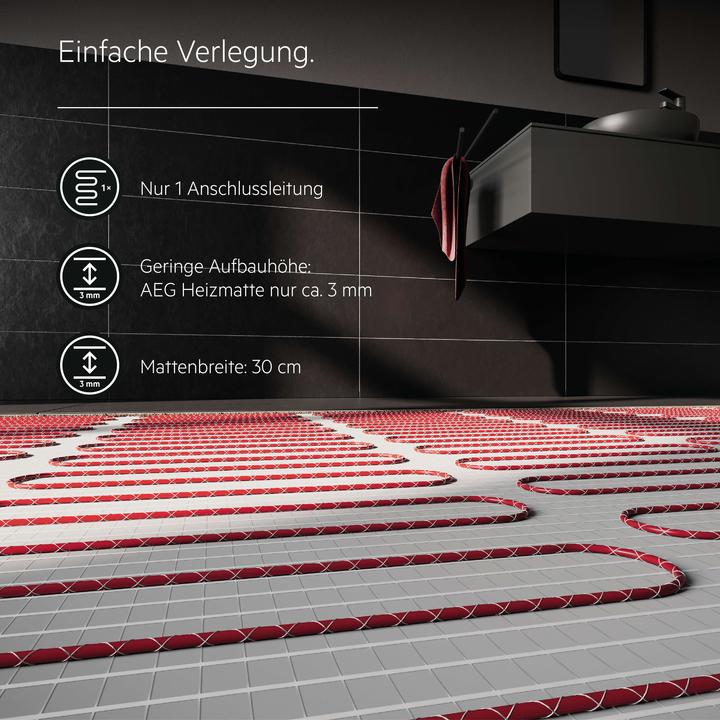

Comfort features: Thanks to its low installation height, the heating mat is installed directly in the tile adhesive under ceramic coverings. The narrower installation width is particularly well-suited for small, irregular floor plans. In combination with a water-based underfloor heating system, it allows for the comfort of a warm floor even outside the heating season. The heating conductor is completely sewn onto the self-adhesive carrier mat, making it easy and quick to lay on the floor.

Installation: The mat can be installed in the bathroom in conjunction with a residual current device. It can be easily adjusted to individual space conditions by cutting the carrier fabric.
