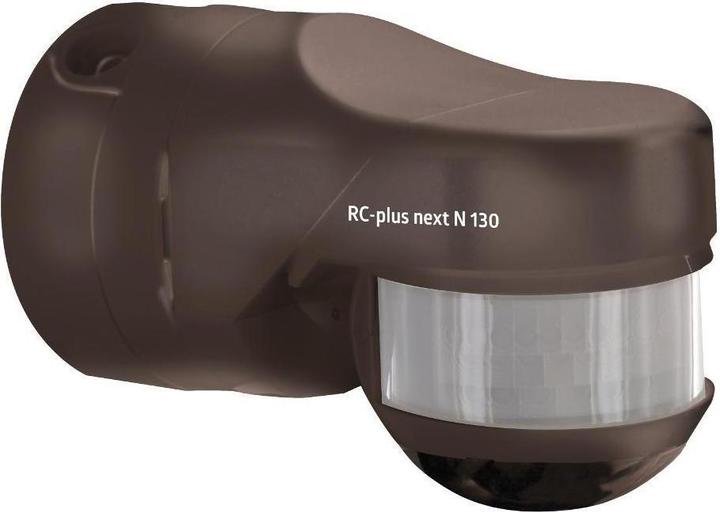

Motion detector LUXOMAT RC-plus next N

This motion detector features a UV-resistant polycarbonate housing with a movable spherical head. It allows for simple mounting with a plug-in base, suitable for wall, ceiling, or corner installation. Cable entry is available at the top, bottom, and rear, and immediate commissioning with factory settings is possible. The device can be remote-controlled with an IR remote control or an IR adapter for smartphones.

It offers different run-on times depending on the direction of movement, with a brightness value range of 2-2000 lux and a time setting from 15 seconds to 16 minutes, including pulse mode. The dimensions are 121x71x85 mm, and it operates within a temperature range of -25°C to +50°C. The switching relay is rated for 230V with a switching capacity of 3000W and has an IP54 rating.

The detection range is 130° with sneak-by protection, allowing a maximum detection distance of 20m when walking crosswise to the detection direction.

Technical data

EAN: 4007529933242

Product group: Insulating switchgear/motion detectors

Manufacturer: B.E.G.

Supplier article number: 93324

Colour: Brown.
