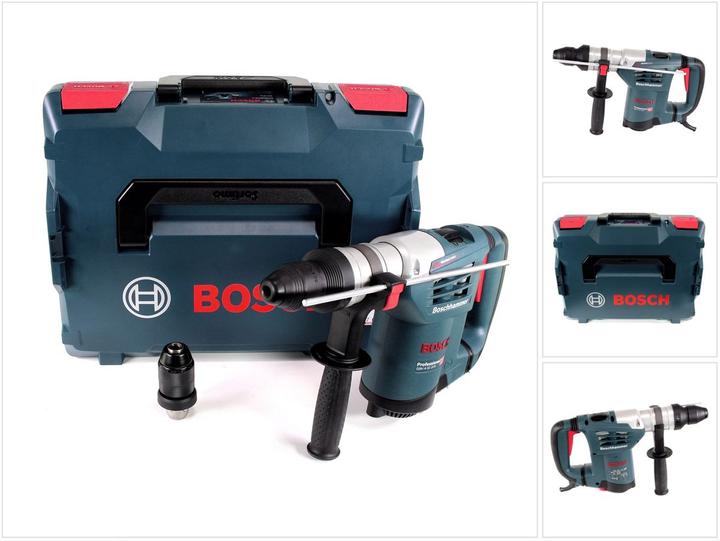

Delivery contents:

• 1x Bosch Rotary Hammer GBH 4-32

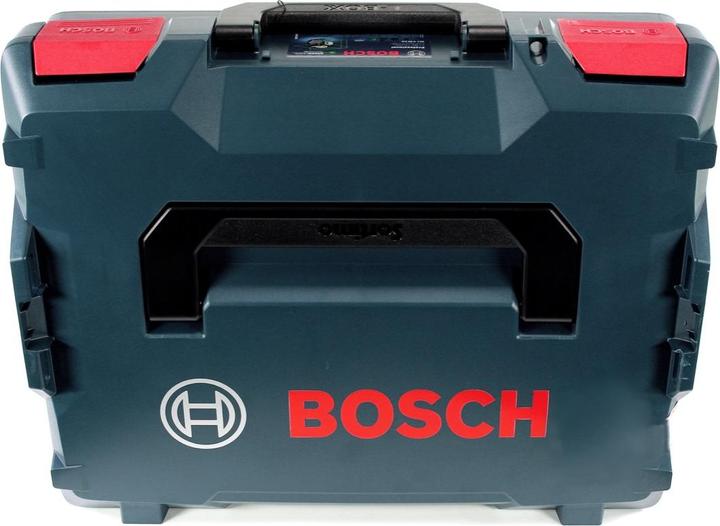

• 1x Transport case L-Boxx 136 with suitable insert
• 1x SDS-Plus drill chuck (2608572213)
• 1x Full metal quick-action drill chuck (2608572212)
• 1x Additional handle (2602025176)
• 1x Depth stop (1613001003)
• 1x Grease (1615430010)
• 1x Machine cloth

Product description:

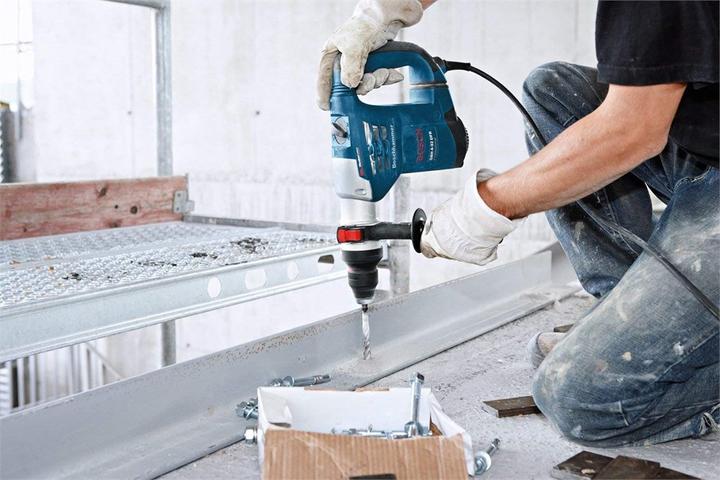

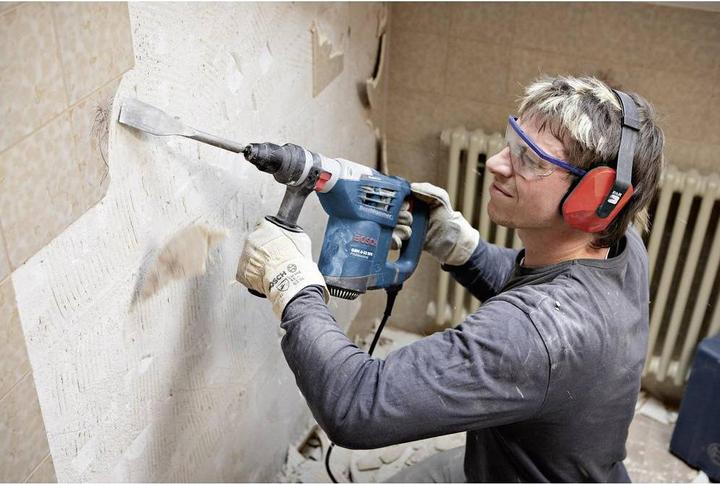

This power tool is designed for hammer drilling in concrete, brick, and stone, as well as for light chiseling work. It is also suitable for non-impact drilling in wood, metal, ceramics, and plastic. Power tools with electronic control and forward/reverse operation are also suitable for screwing. The rotary hammer with SDS plus chuck features very high impact energy and a powerful electric motor. As a result, it performs drilling tasks about 30 percent faster than models from other manufacturers in the four-kilogram class. The integrated vibration control function ensures fatigue-free working at maximum performance. The SDS plus drill chuck can be easily replaced with a quick-action drill chuck. The built-in drilling, hammer drilling, and chiseling functions make this tool a true all-rounder on any construction site. The GBH 4-32 DFR is the most powerful rotary hammer in the SDS plus segment.

Technical data:

Rated power input: 900 W
Impact energy: 4.2 Joules
Tool holder: SDS plus
Impact rate at rated speed: 0-3600 min-1
Rated speed: 0-800 min-1
Drilling diameter in concrete, hammer drill: 6 - 32 mm
Optimal application range in concrete, hammer drill: 14 - 25 mm
Max. drilling diameter in masonry, core bits: 90 mm
Max. drilling diameter in steel: 13 mm
Max. drilling diameter in wood: 32 mm
Weight: 4.7 kg

For commercial use, please observe the construction regulations!.
