Description

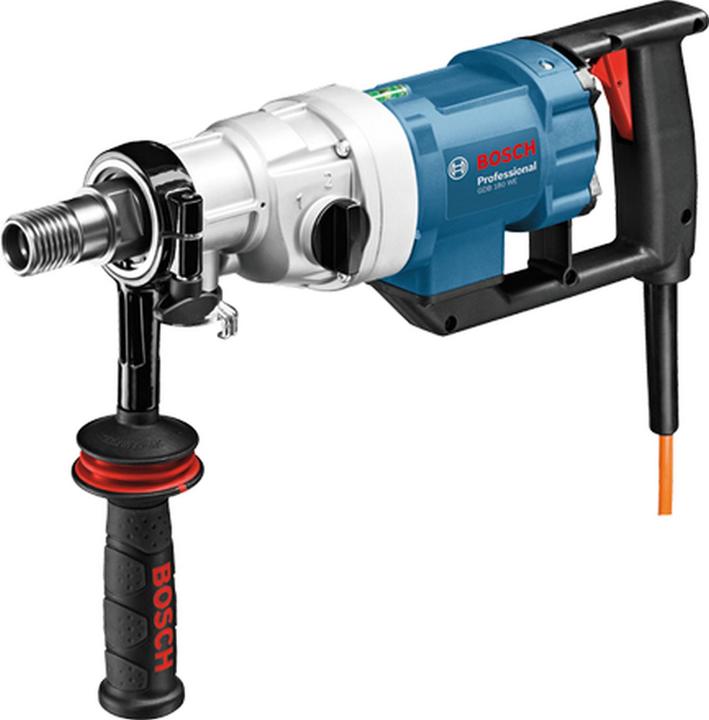

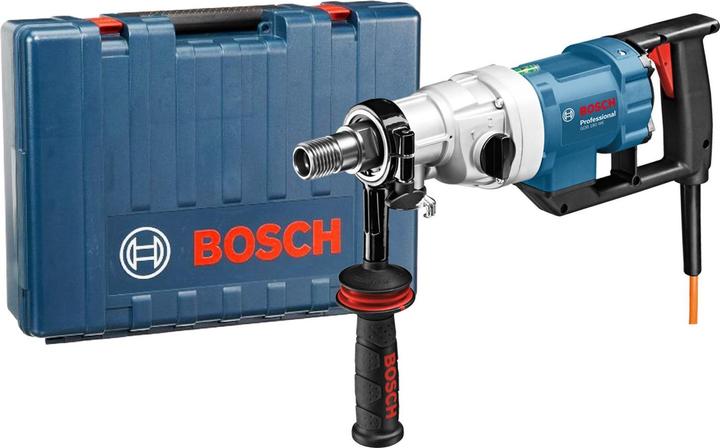

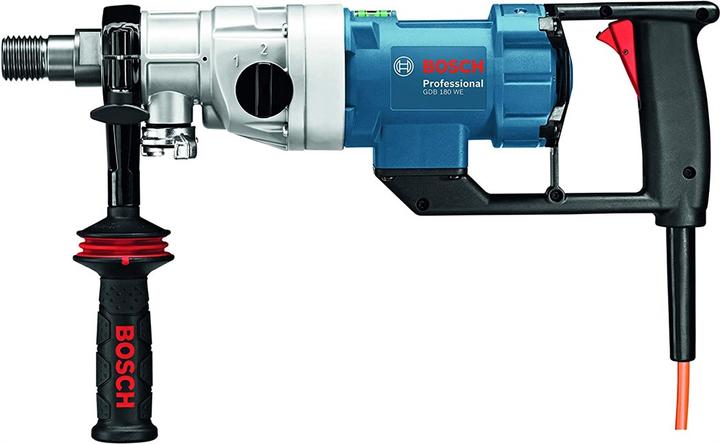

The GDB 180 WE Professional is a versatile corded 2-speed diamond drilling machine, suitable for both handheld and stand-mounted operation. Its powerful 2,000-watt motor enables drilling through reinforced concrete up to 180 mm in diameter. Additionally, its robust construction and oil-bath lubricated gearbox ensure extreme durability. This drill is designed for both wet and dry operation, making it suitable for a variety of applications.

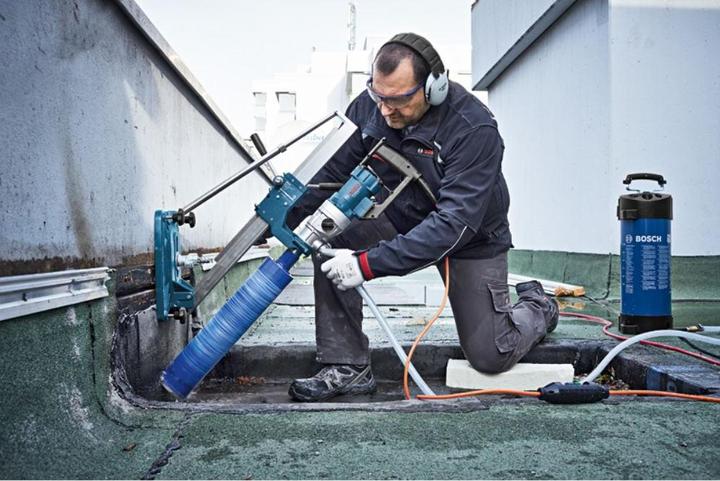

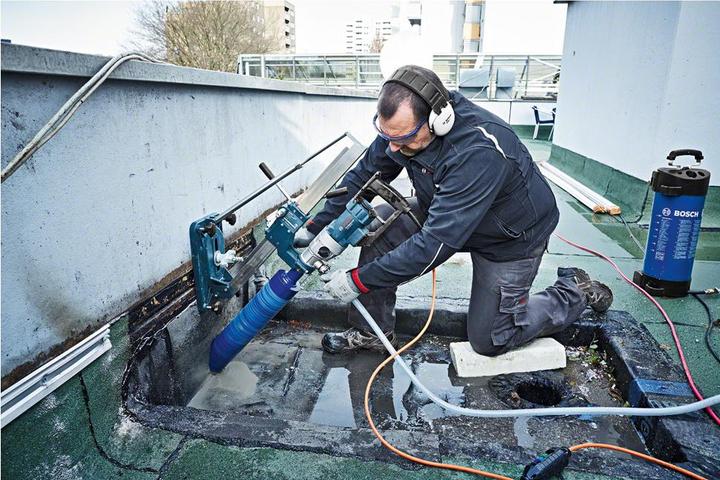

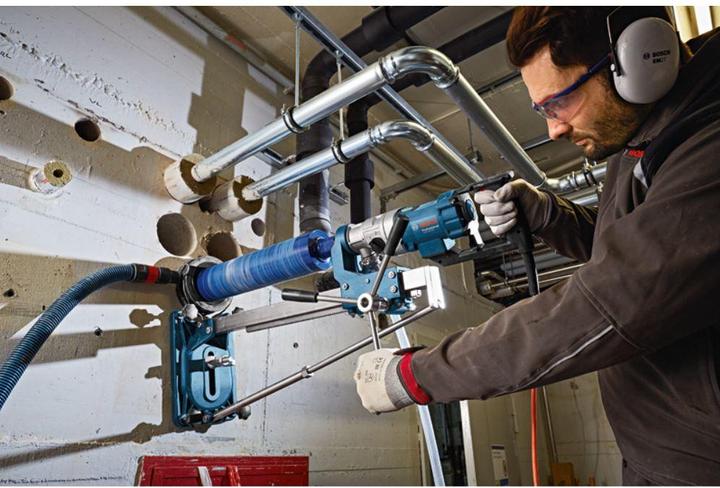

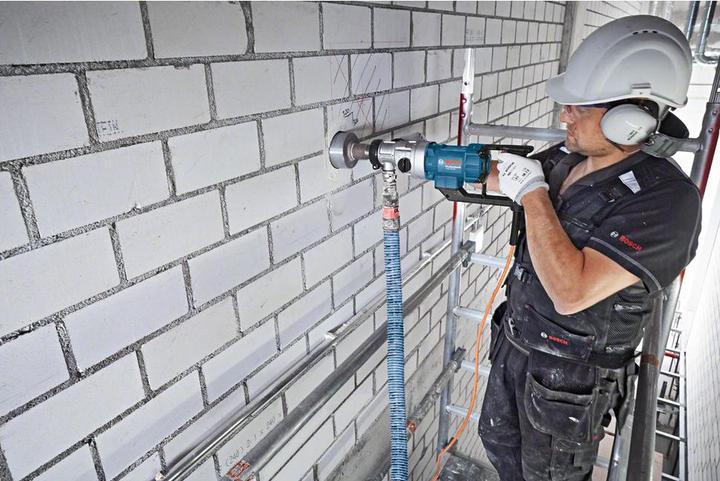

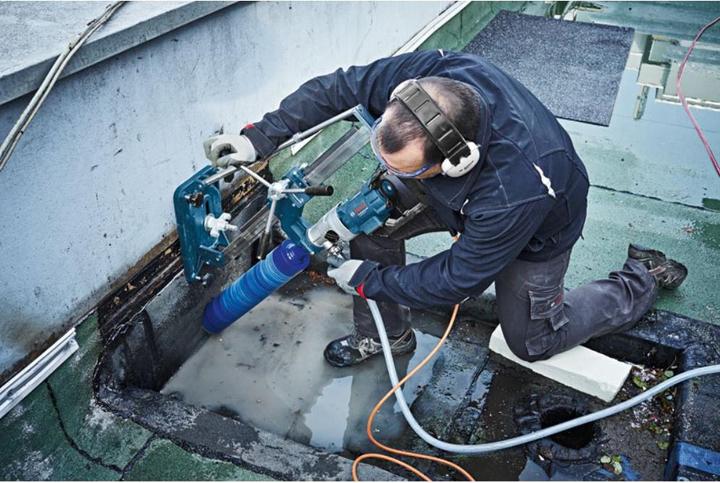

Versatile 2-speed diamond drilling machine for handheld and stand operation

Powerful 2,000-watt motor allows for drilling through reinforced concrete up to 180 mm in diameter

Extremely durable due to robust construction and an oil-bath lubricated gearbox

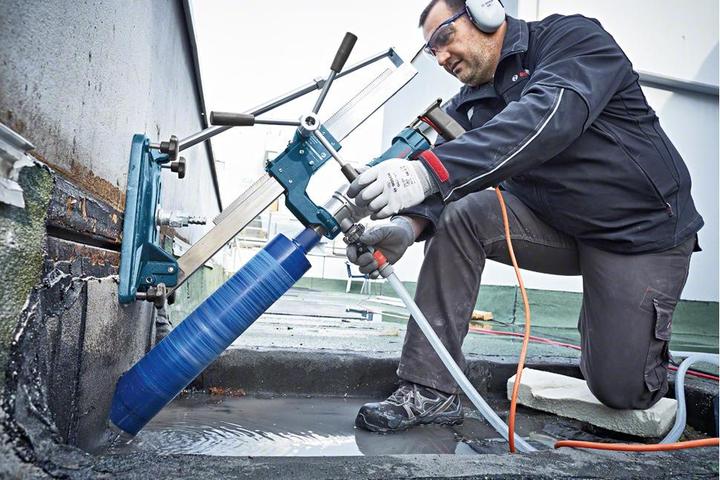

Wet and dry operation for a variety of applications

Technical Data

Tool holder: 1 1/4" UNC

Rated input power: 2,000 W

No-load speed: 900/2,800 min-1

Weight: 5.2 kg

Drilling range: 180 mm

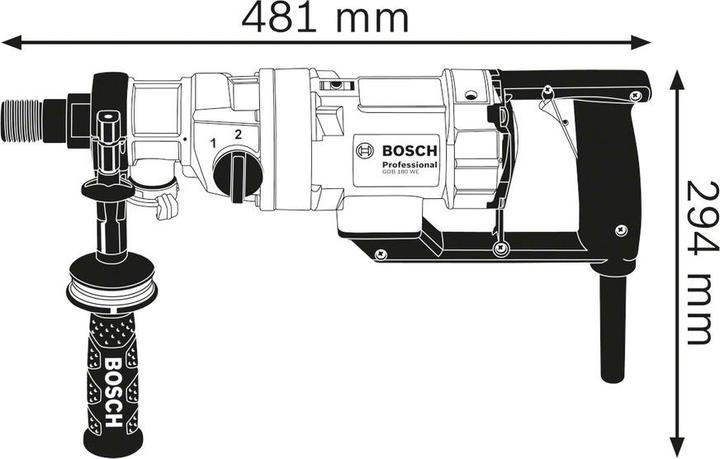

Tool dimensions (width): 109 mm

Tool dimensions (length): 481 mm

Tool dimensions (height): 294 mm

Suitability: Wet drilling in concrete

Concrete, possible range: 180 mm

Masonry, possible range: 180 mm

Vibration total values (drilling in concrete)

Vibration emission value ah: 4.8 m/s²

Uncertainty K: 1.5 m/s²

Noise/Vibration information

Sound pressure level: 92 dB(A)

Sound power level: 113 dB(A)

Uncertainty K: 3 dB.
