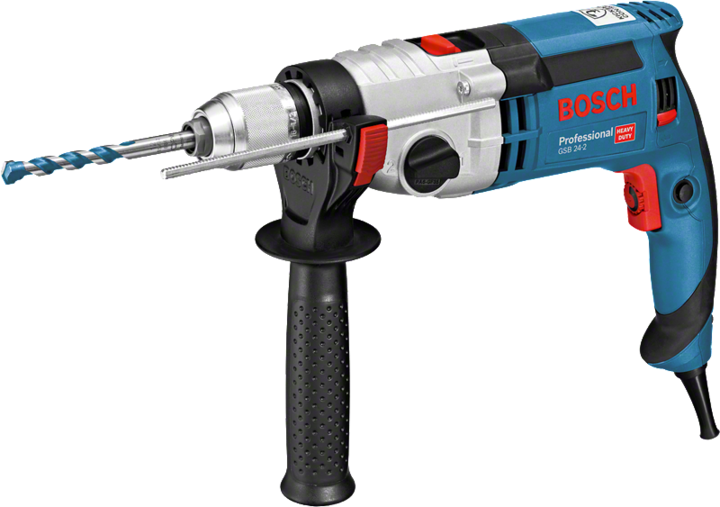

Two-speed impact drill with KickBack Control for the toughest applications.
Features
Scope of delivery

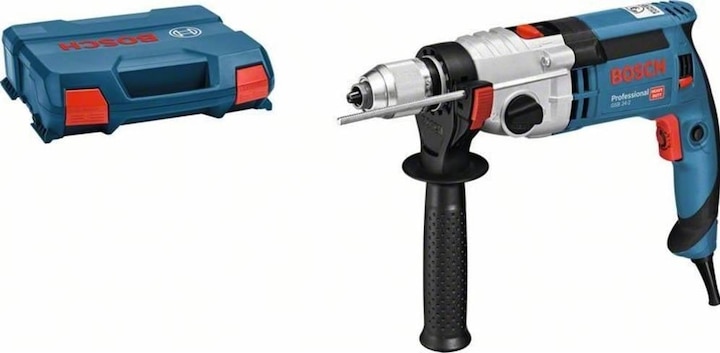

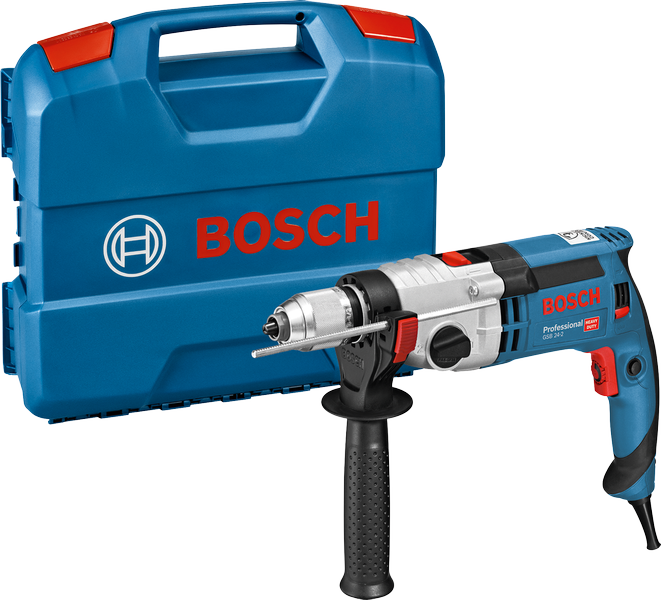

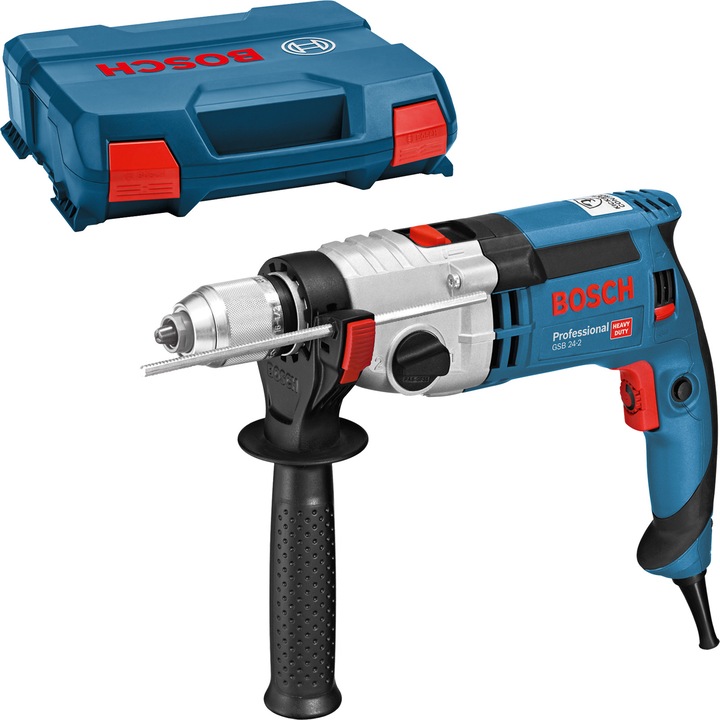

1 piece impact drill GSB 24-2 Professional
1 piece quick-change drill chuck 13 mm
1 piece depth stop 210 mm
1 piece additional handle
1 piece L-Case
Technical specifications
Rated input power: 1,100 W
Output power: 630 W
No-load speed 1st gear: 0-900 min-1
No-load speed 2nd gear: 3,000 min-1
Rated speed: 580/1,900 min-1
Rated torque: 9.6/3.2 Nm
Chuck clamping range: 1.5-13 mm
Impact rate at no-load speed: 0-15,300/51,000 bpm
Max. torque: 40.0/14.5 Nm
Drilling diameter concrete: 22/13 mm
Drilling diameter wood: 40/25 mm
Drilling diameter steel: 16/8 mm
Drilling diameter stone: 24/16 mm
Drilling diameter masonry: 24/16 mm
Weight: 4.907 kg.
Drilling machine + percussion drilling machine Type | Hammer drill, Impact drill |
Weight | 2.90 kg |
Tool holder | Quick release |
Max. torque | 40 Nm |
Power | 1100 W |
Item number | 9350732 |
Manufacturer | Bosch Professional |
Category | Drills + Cordless screwdriver |
Manufacturer no. | 060119C801 |
Release date | 7.8.2018 |
External links |
Colour | Black, Blue, Grey |
Exact colour description | Black, Blue, Grey |
Drilling machine + percussion drilling machine Type | Hammer drill, Impact drill |
Use | Impact drilling |
Tool holder | Quick release |
Additional functions | Speed preselection |
Max. screw diameter | 40 mm |
Max. drilling diameter in wood | 40 mm |
Max. drilling diameter in steel | 16 mm |
Max. drilling diameter in masonry | 24 mm |
Max. drilling diameter in concrete | 16 mm |
Power supply | Electrical connection |
Battery type | Li-ion |
Mains voltage | 230 V |
Cable length | 0.34 m |
Plug type | Type 12 |
Power | 1100 W |
Number of gears | 2 x |
Idle speed 1st gear | 900 rpm |
Idle speed 2nd gear | 3 rpm |
Max. Idle speed | 3000 rpm |
Max. torque | 40 Nm |
Max. Number of strokes | 51000 rpm |
Sound power level (LWA) | 5 dB |
Sound pressure level (LpA) | 95 dB |
Max. noise level | 106 dB |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Drill + cordless screwdriver equipment | Auxiliary handle |

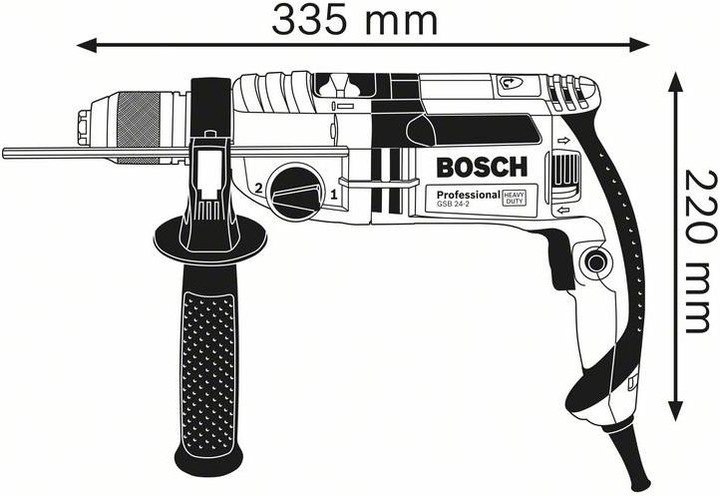

Length | 36.30 cm |
Width | 33.50 cm |
Height | 22 cm |
Weight | 2.90 kg |
Length | 44 cm |
Width | 40.50 cm |
Height | 13 cm |
Weight | 4.91 kg |
