The ground HSS spiral drill bit drills into metal with the highest precision.

The self-centering drill tip with a cross grind and a point angle of 135 degrees allows for perfect centering without wandering.

Thanks to the cross-ground drill tip, pre-drilling or center punching is unnecessary for diameters up to 10 mm.

This precision-ground drill made of HSS steel drills 40% faster and requires 50% less feed force than conventionally ground HSS drill bits.

It is suitable for drilling holes in alloyed and unalloyed steel, cast steel, cast iron, sintered iron, ductile iron, non-ferrous metals, and hard plastics.

The shank is cylindrical (the shank diameter corresponds to the drill diameter).

It is used with drill stands and drill drivers.

The ground HSS spiral drill bit is manufactured according to DIN 338.

It belongs to drill type N (small side cutting angle) with a 135-degree drill tip and diameter tolerance h8.

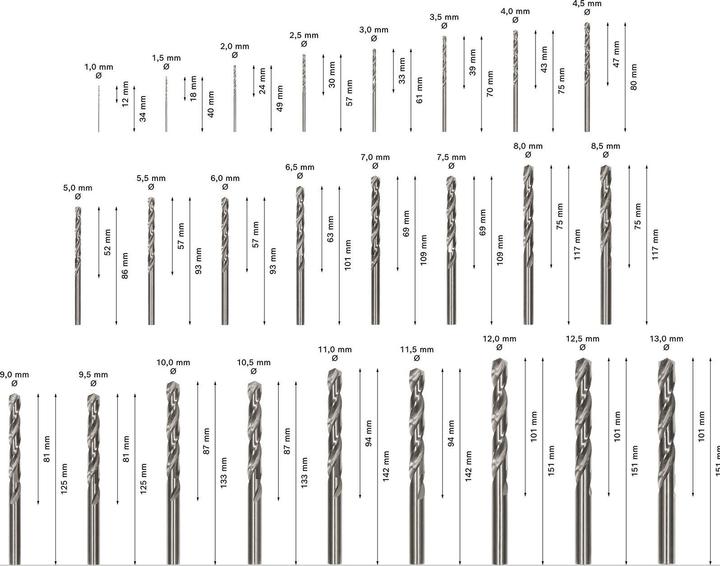

Diameter mm: 1.0; 1.5; 2.0; 2.5; 3.0; 3.5; 4.0; 4.5; 5.0; 5.5; 6.0; 6.5; 7.0; 7.5; 8.0; 8.5; 9.0; 9.5; 10.0; 10.5; 11.0; 11.5; 12.0; 12.5; 13.0. Working length mm: 12; 18; 24; 30; 33; 39; 43; 47; 52; 57; 63; 69; 75; 81; 87; 94; 101. Dimensions Set, Length mm: 200.0; Width mm: 115.0; Height mm: 58. Dimensions Set mm: 200.0 x 115.0 x 58.
