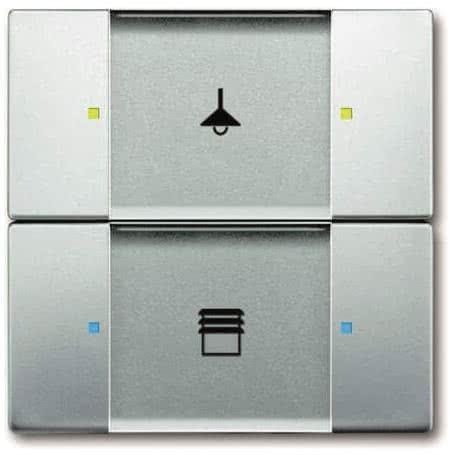

Busch-Jaeger Touch Sensor 2/4-fold 6126/02-866

Manufacturer: Busch-Jaeger
Designation: Touch Sensor 2/4-fold Multifunction
Type: 6126/02-866
Bus System KNX: yes
Bus System KNX Wireless: no
Bus System Wireless Bus: no
Bus System LON: no
Bus System Powernet: no
Other Bus Systems: none
Mounting Type: Flush-mounted
With Bus Coupling: no
Number of Activation Points: 4
Number of Buttons: 4
With LED Display: no
With Labeling Field: yes
With Display: no
Material: Plastic
Material Quality: Thermoplastic
Surface Protection: painted
Surface Finish: matte
Color: Stainless Steel
Protection Class (IP): IP20
Minimum Depth of Device Box: 33 mm

Additional Details:
For Busch Installation Bus® KNX 6120/12-101, 6120/13 and Busch Powernet® KNX 6920/12, 6920/13, and 6920/40. With labeling field. Support for KNX functions through innovative color concept (yellow=lighting, blue=shutter, orange=RTR, magenta=scenes, and white=neutral/no function assignment) or standard lighting red/green. Button function: Switching / Dimming / Shutter / Sending Value / Light Scenes, etc. A transparent labeling sheet with standard symbols is included in the delivery. Includes 10 logic channels (light scene actuator, sequence actuator, logic gates, etc.).
